Mini Cheap Cost Electronic Digital Compass Sensor Module For GPS Integrated Navigation Using

1pcs / inner box with sponge , 100pcs/ctn

Mini Cheap Cost Electronic Digital Compass Sensor Module For GPS Integrated Navigation Using

General Description

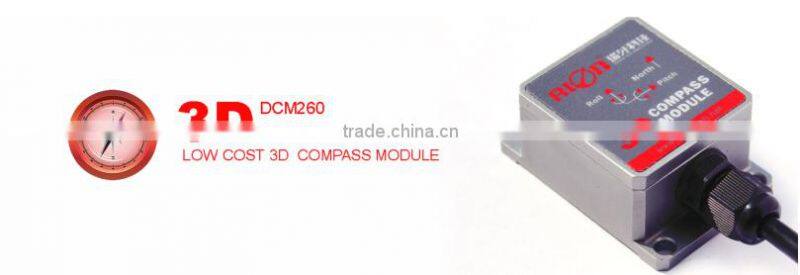

  DCM260B is a low-cost 3D electronic compass (with enclosure), using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM260B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.

DCM260B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.

Application :

• Satellite antenna search satellite
• Marine navigation surveying and mapping
• GPS integrated navigation
• Antenna servo control
• Gun emission system
• Infrared imager
• Laser range finder
•  Map for plotter
• ROV underwater robot navigation
• Oceanography measurement instruments
• Special occasion robot
• Unmanned aircraft

Features:

• Heading accuracy: 0.8°
• Tilt angle measuring range :±85°
• Tilt angle resolution: 0.1°
• Tilt angle accuracy: 0.2°
• Wide temperature : -40°C~+85°C
• Size: L55×W37×H24mm
• With hard magnetic ,soft magnetic and angle compensation
• DC 5V power supply
• Standard RS232/RS485/TTL output interface
• IP67 protection class

Application :

• Satellite antenna search satellite
• Marine navigation surveying and mapping
• GPS integrated navigation
• Antenna servo control
• Gun emission system
• Infrared imager
• Laser range finder
• Map for plotter
• ROV underwater robot navigation
• Oceanography measurement instruments
• Special occasion robot
• Unmanned aircraft

RION Technology Co., Ltd. is located in a fantastic city - Shenzhen. Our company is

a high technology company that integrates research, development, production and

sale, and is mainly engaged in the sale of inclinometer sensors, digital compasses,

digital dipmeters and acceleration sensors. These products are widely used in many

industrial control fields, such as automobiles, ships, airplanes, railways, medical facilities,

dam safety monitoring, oil drilling, coal mining and ocean surveying. Our company has

established good business relationships with many international famous companies.
We adhere to the service guideline of "Client-centered". "Client uppermost, credit first,

service best" is our business philosophy. Our company provides accurate, efficient,

civilized and complete services for clients.
Let us provide you with the best products. To save purchasing cost and time, contact us now.

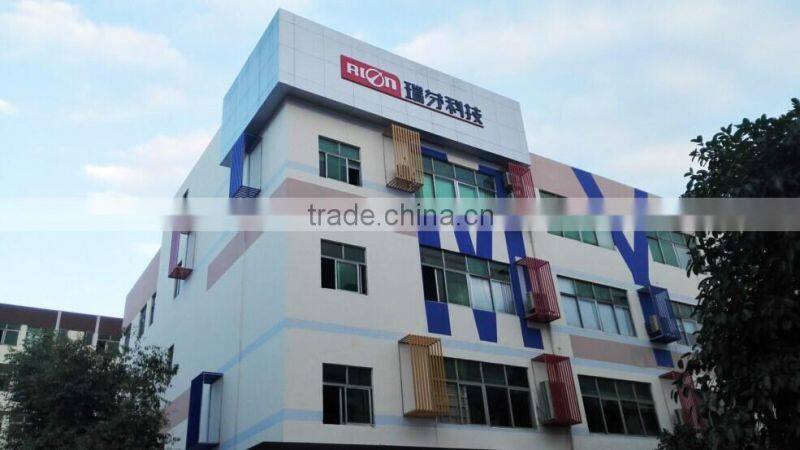

Our Company & Workshop View :

Certificates & Test Reports :

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .

Payment ways :

T/T, WU or Paypal;

Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;

Quality Policy :

We gurantee 1 year in free charge .

Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
