Specifications
3D Fluxgate Compass Sensor PCB Board1:Heading accuracy:0.3 degree
2:tilt accuracy:0.1

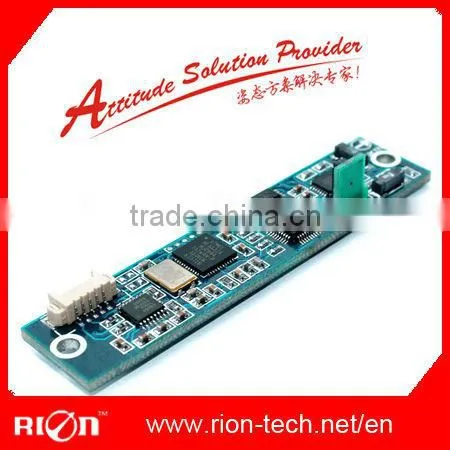

China Factory Suppling High Accuracy 3D Fluxgate Compass Sensor PCB Board
General Description :
HCM500 is a high accuracy 3-Axis digital compass single board with 360°Dip angle compensation. Which uses advanced algorithms, with hard iron and soft iron corrections, to provide highly accurate heading information over its extra wide tilt range at latitudes up to 360°. The small size and low power requirements of the HCM500 allow it to fit into today’s size sensitive systems. These advantages make RION Corporation's HCM500 the choice for applications that require highest accuracy and performance anywhere in the world.
Features include an extra wide tilt range, high accuracy compass heading, low powerconsumption, large signal noise immunity under all conditions, and a large magnetic field measurement range in a small package.
The HCM500 combines USA patented Magneto-Inductive (MI) sensors and measurement circuit technology with a three-axis MEMS accelerometer for unparalleled cost effectiveness and performance. The magnetic sensors and accelerometers are calibrated to operate from -40 to 85°C; hence the measurement is very stable over temperature and inherently free from offset drift..
HCM500 adopts high-tech levels such as MCU, Water-proof, dust prevention and anti-corrosion PCB, import cable,wide temperature metal-clad ,and so on, to improve the stability and reliability.
Features:
1.Accuracy: 0.3 °~0.5°
2.Maximum Dip Angle: 360°
3.RS232/RS485 Optional
4.Small size: L72*16*12mm
5.Binary RS232 interface
6.Widely working temperature: -40°C~+85°C
7.Small form factorLow power consumption
8.Hard and soft iron correction with quality of calibration score
Applications:
1.High performance ROV navigation
2.GPS system integration
3.Vehicle tracking
4.Remote terrestrial antenna direction indicators
5.Sonar targeting systems
6. 3-axis magnetic field sensing
7.Survey equipment
8.utopilot
9.Satellite positioning Search
10.Robotic systems
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products
Other more information please visit our website : or www.rion-tech.us
Now please contact us through below methods for your any requirement or comments !!!
