Specifications
Full Attitude 3D Compass North Finder1:Heading accuracy:0.3 degree
2: Heading Range : 0-360deg
3. Tilt angle : +/-90deg

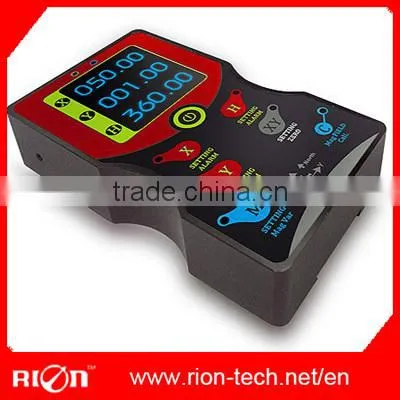

SDC620B High Precision Three axis Marine Compass With Screen Display Made by Shenzhen Manufacturer
General Description :
SDC620B is a new type 3D full-posture compass north finder which launched by our company to the satellite search industry , using USA fluxgate technology and advanced hard iron and soft iron calibration algorithm, to make it still can provide the high accurate heading information in tilt 360 °status , still can accurately show the direction angle when tilt 360deg to identify the relative heading position . SDC620B belongs handheld digital instrument and can remote transmit the 3D data to a computer, through RION PC software to proceed with synchronous monitoring and saving data(this function is optional ).The products integrated design pitch, roll and heading alarm functions, such as setting the heading angle with 0 degrees alarm point, when products go to 0 degrees position will drive buzzer alarm, humane alert the operator to use. Can also set the magnetic declination and calibrate the magnetic field functions etc. through manual button .
SDC620B display unit using the industrial wide temperature digital blue tube, built-in high-capacity rechargeable battery, the battery life can up to over 10,000 times (when low power with the alarm function), can use 220V pluggable charging, convenient and quick.
Features:
- Heading accuracy: 0.3°
- Tilt angle compensation range:±90°
- Heading measuring range:360°
- Tilt angle accuracy : 0.1°
- Wide temperature range: -20°C~+80°C
- Size: L113×W20×H20mm
- With hard magnetic ,soft magnetic and angle compensation
- IP65 protection class
- Handheld,dovetail groove installation integrated design
- With soft,hard magnetic field calibration
- Relative ,absolute Zero setting
- 18 hours work continuously endurance Low power charging alarm function
- RS232,RS485 Serial data synchronization output(optional)
- Diversified combination mode(external connection 3D compass are optional )
- Industrial digital tube display ,wide temperature, night vision
Application :
- Satellite antenna search satellite
- Marine navigation surveying and mapping
- GPS integrated navigation
- Antenna servo control
- Pile Driver Angle real-time monitoring
- Map for plotter
- Geomancy surveying and mapping
-
Oceanography measurement instruments
