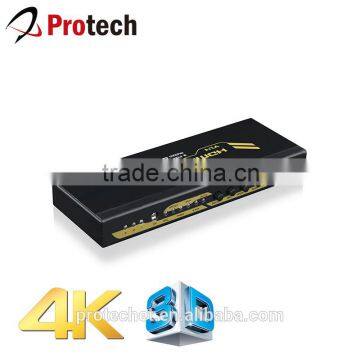

HDMI 3X1 HDMI Switcher 4k@30Hz with MHL, Extract Audio and ARC

            HDMI 3X1 HDMI Switcher 4k@30Hz with MHL, Extract Audio and ARC

1.0   Introduction

The 3 port HDMI 4K switch lets you share a display or projector with 3 HDMI-enabled A/V source devices. The switch features 3 independent inputs that each support 4K resolution and 7.1 surround sound audio.

The 3-port switch also features MHL support on HDMI input port 1, enabling video output video from MHL-enabled mobile devices such as Samsung Galaxy tablets and smartphones.

Also, the audio embedded in HDMI can be extracted via Toslink or L/R and the switch can return the audios to A/V receivers with audio return channel (ARC) function.

2.0   Feature

* One MHL/HDMI dual mode input (input 1) and two HDMI input switch freely to one HDMI output

* Support IR control, manual control and automatic switching (can be turned off)

* Support synchronized audio extraction via Toslink or L/R to speakers

* Support 3 audio options: 2.0CH, 5.1CH and pass

* Support Full HD 1080P, Full 3D, 4Kx2K@30Hz

* LED working status indication

* Support 300MHz/3Gbps per channel (9Gbps all channels) bandwidth

* Support 12 bits per channel (36 bits all channels) deep color

* Support HDCP

* Support uncompressed audio such as LPCM 7.1

* Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

* Support ARC (Audio Return Channel) Receiving

3.0 Specification

4.0 Package Content

1)      Main Unit

2)      5V DC Power Adaptor

3)      User Manual

4)      Remote Controller
