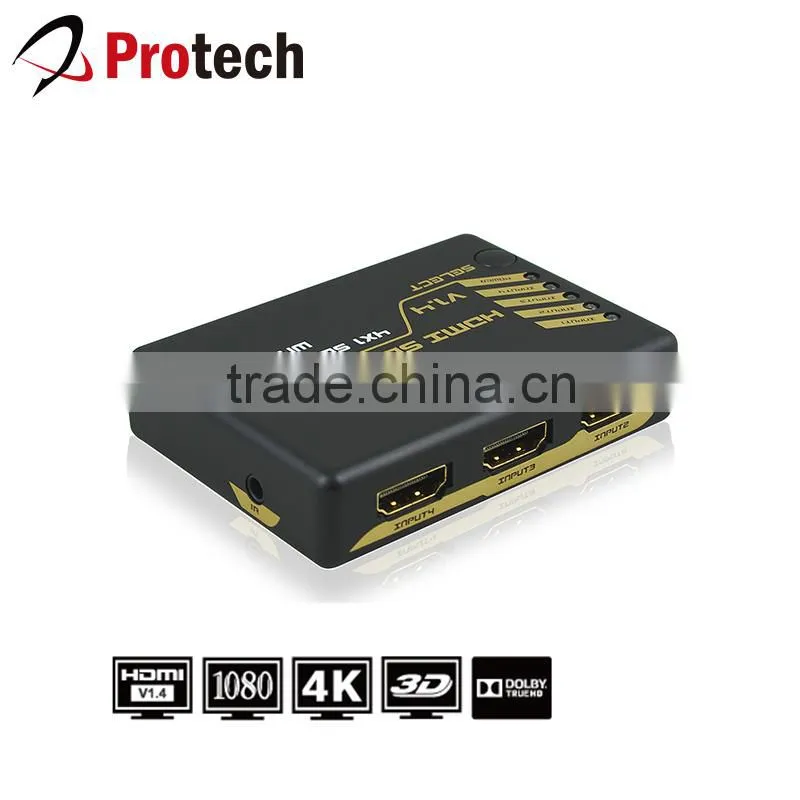

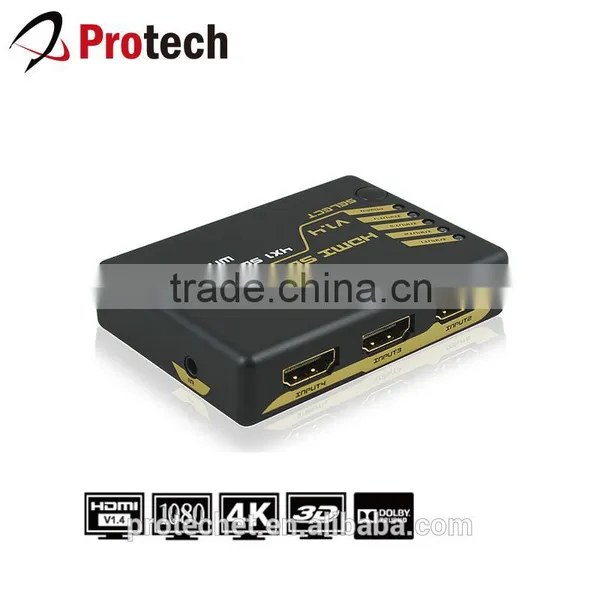

Protech 4 ports HDMI Switcher
4X1 Full 3D and 4K with Picture In Picture Function
1.0 Introduction
The 4x1 HDMI Switcher routes high definition video (in multiple resolutions up to 4kx2k) and digital audio from any one of the four sources to display unit, Support PIP (Picture in Picture)

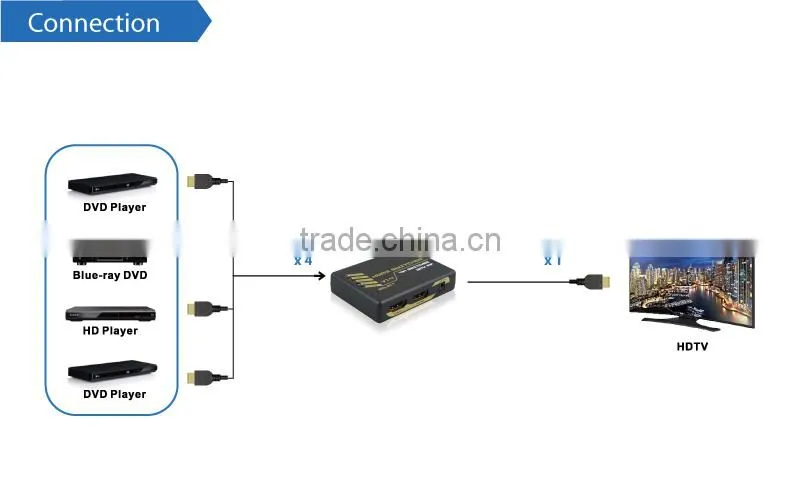

Four inputs accommodate the simultaneous connection of up to four high definition video sources, such as satellite systems and HD DVD players
The output sends the high definition audio/video signals to a high definition display. This kind of the HDMI Amplifier Switches not only has the key-press-switching function, but
also has the IR remote control and intelligent function
2.0 Feature
* Support HDMI 1.4
* Support 3.0Gbps per channel bandwidth
* Video resolutions up to 4kx2k@30Hz ,1080p@120Hz and 1080p 3D @60Hz
* CEC Pass-through

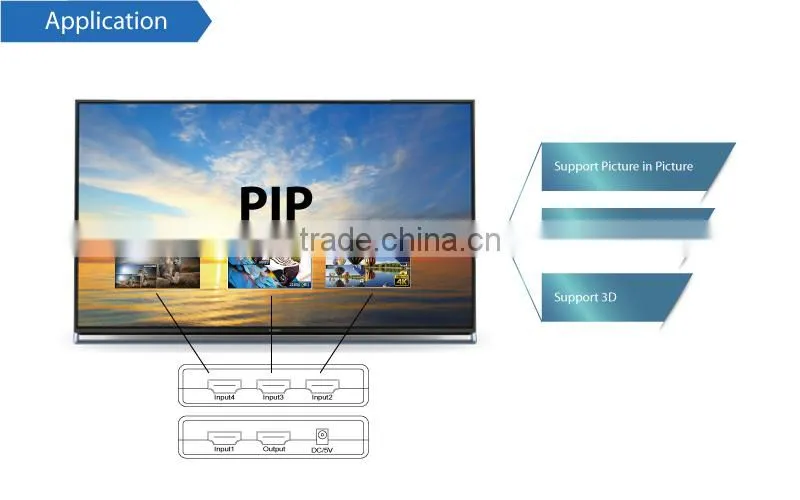

* PIP (Picture in Picture) mode support highest video resolution 1080p 3D@60Hz
* Multifunctional on switching: intelligent or mechanical
3.0 Specification
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
4Kx2K |
Output Video |
HDMI1.4b |
Vertical Frequency Range |
30/50/60/120Hz |
Video Amplifier Bandwidth |
3.0Gbps/300MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4Kx2K |
Size(L-W-H) |
80x58x18mm |
Weight(Net) |
55g |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power consumption (Max) |
5W |
IR extender receiver |
Yes |
IIR Remote |
Yes |
User Manual |
English Version |
Note: Specifications are subject to change without notice.
4.0 Package Content
1) Main unit.
2) Remote control
3) IR extender receiver
4) Power Adapter
5) User's Manual
