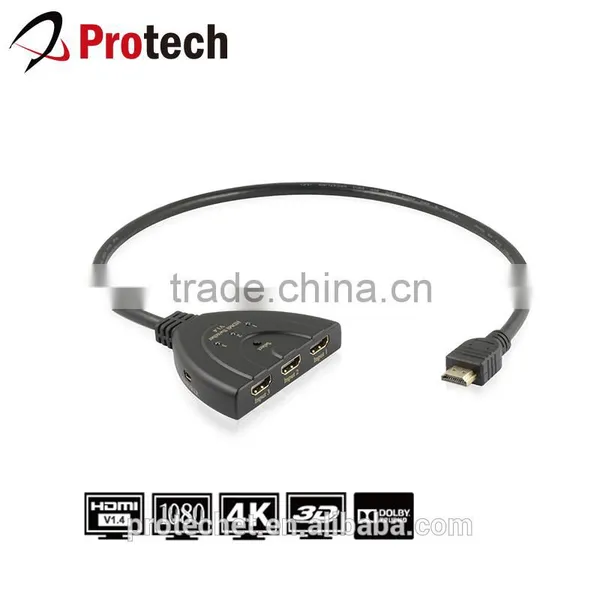

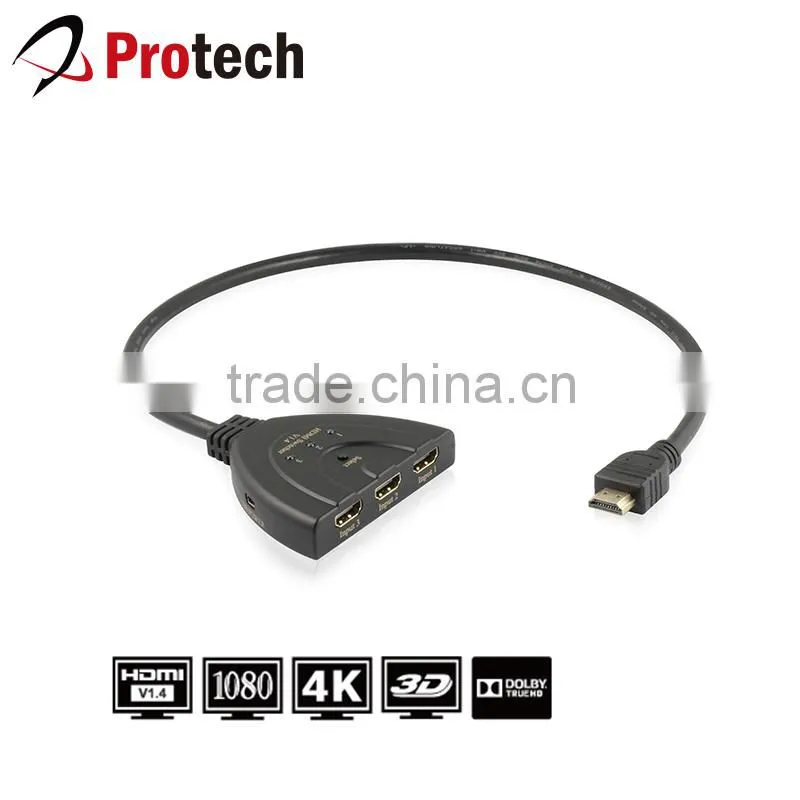

HDMI 3X1 Switcher Pigtail Support full 3D and 4K with USB Cable
1.0 Introduction

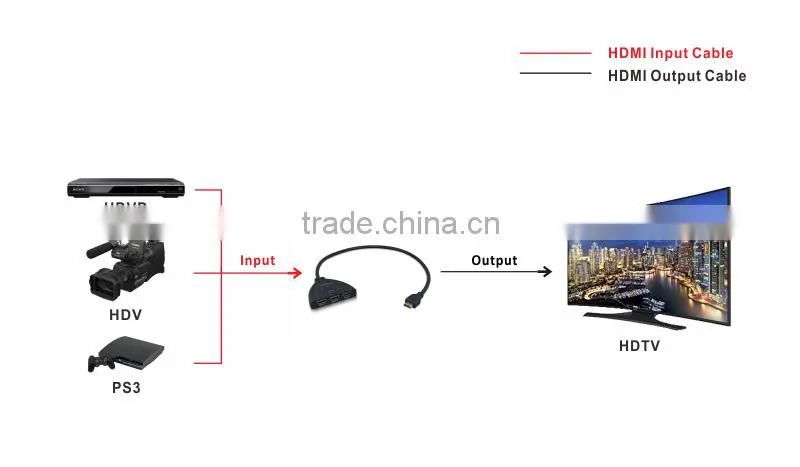

This is a kind of high performance HDMI Switcher. It can easily switches three sources to one display. It not only has the key-press-switching function, but also has intelligent function. With one fixed HDMI cable (pigtail) this converter not only reduces cost but also save time for consumers.
1.1 Intelligent function
1) Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source.
2) Once the source device is turned off or plugged out, the switcher will select the next power-on source depending on the sequence automatically.
2.0 Feature
*Multifunctional on switching ,intelligent or mechanical
*Support HDMI 1.4b
*Support high Definition Resolution 4K X 2K@30Hz,1080p and 3D
*Support 300MHz/3.0Gbps per channel bandwidth.
*CEC Pass-through
*Support 12bit per channel (36bit all channel)
3.0 Specification
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
4KX2K |
Output Video |
HDMI 1.4b |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
3.0Gbps/300MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4KX2K |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
No power needed |
Power consumption (Max) |
5W |
Converter Unit |
FCC,CE |
User Manual |
English Version |
Note:
1)Specifications are subject to change without notice.
2)Please switch on three input sources at the same time when using this no power needed switcher with PS4
4.0 Package Content
1) Main unit.
2) User's Manual
