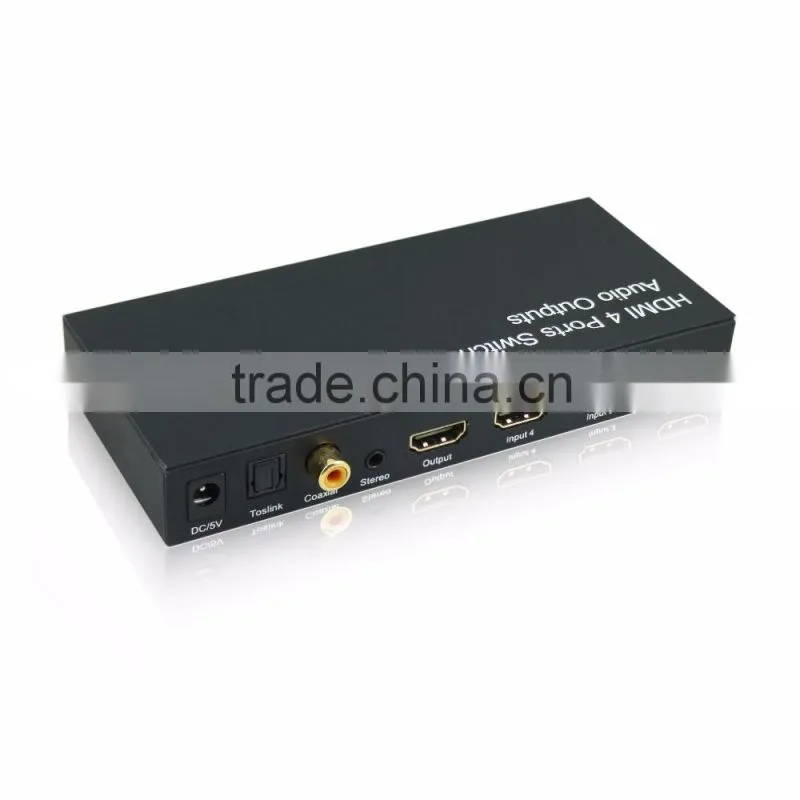

4x1 hdmi switch with audio output support 3D HDMI switch with audio(Toslink+Coaxial+3.5mm stereo) HDMI matrix switch 4x1
1.0 Introduction
The 4 port HDMI switch lets you share a display with four HDMI-enabled A/V devices, eliminating the need to manually exchange cables to switch between high definition A/V sources, saving time and hassle. The switch features four independent inputs that each support 1080p resolution and 7.1 surround sound audio. In addition, the audio embedded in HDMI can be extracted via stereo, Toslink and Coaxial.
2.0 Feature
* One input port on the front panel is specialized for portable devices
* Support digital audio output simultaneously: Stereo, Toslink and Coaxial
* Support HDMI (with 3D) and HDCP pass-through
* Support highest video resolution 1080p
* Support 225MHz/2.25Gbps per channel (6.75Gbps all channels) bandwidth
* Support 12bit per channel (36bit all channels) deep color
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS, Dolby Digital(including DTS-HD Master AudioTM and Dolby TrueHD)
Note: Dolby is a trademark of Dolby Laboratories.
3.0 Specification
Input DDC Signal |
5 volts p-p (TTL) |
Output Video |
HDMI signal |
Output Audio Signal |
Stereo, Toslink and Coaxial |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
5V DC@2A |
Power Consumption (Max) |
5W |
Switcher Unit Cert |
FCC,CE, RoHS |
Power Supply Cert |
CE,FCC, RoHS |
User Manual |
English Version |
Note: Specification is subject to change without notice.
4.0 Package Content
1) Main Unit
2) 5V DC Power Supply
3) User Manual
4) Remote Control

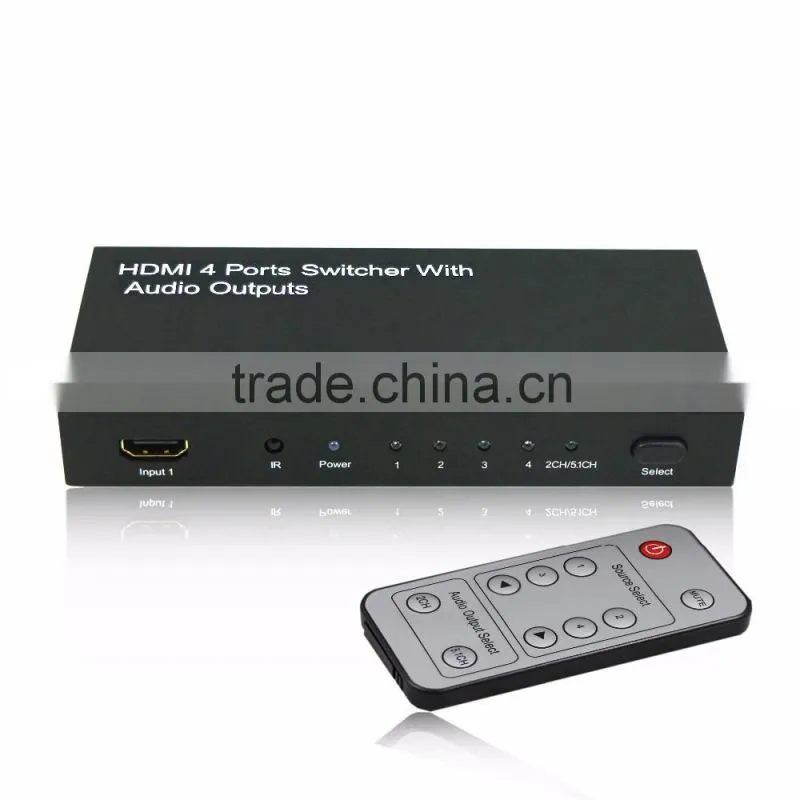

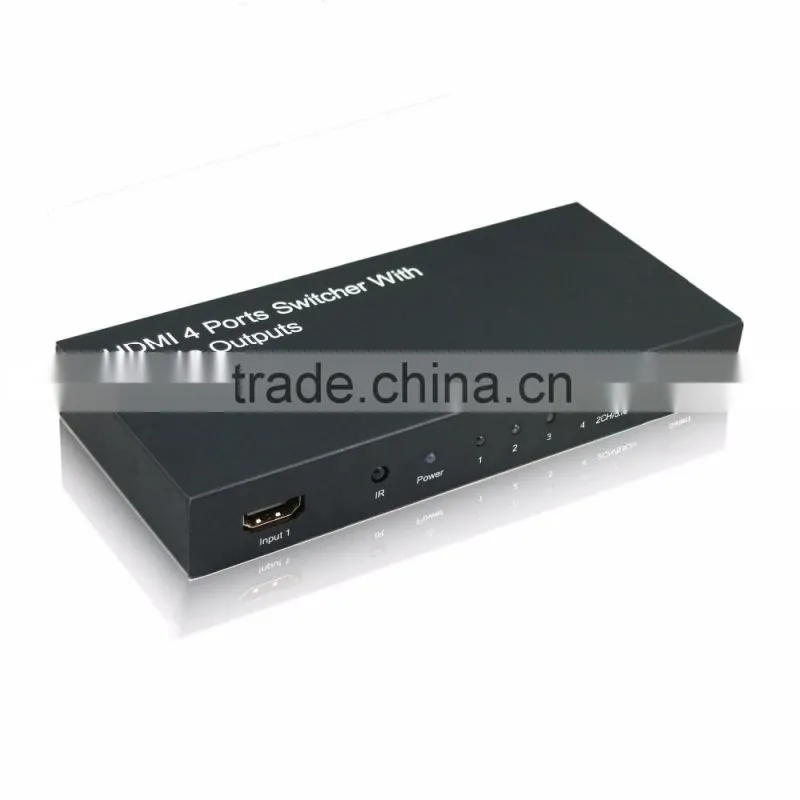

5.0 Panel Description

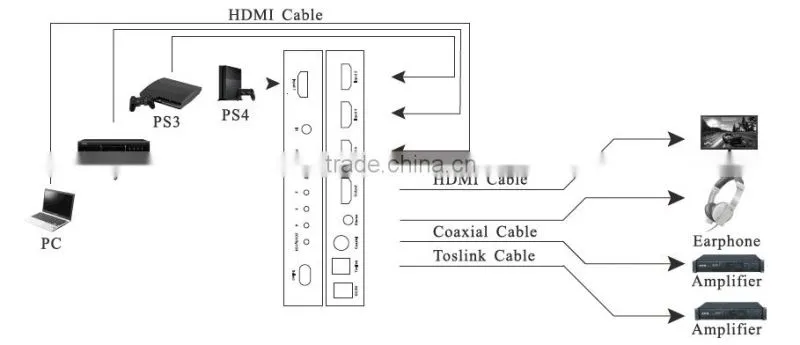

6.0 Connection and Operation
7.0 Company Imformation
About us :
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design, owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection, such as HDMI cable, switcher, splitter, matrix converter and extender.
In addition, Protech provides the prime quality & reasonable price for all our customers, and supports clients with high technology product development, experienced OEM, ODM production and highly effective global logistics. "To serve customers with good quality & price of the world competition" is our winning policy.
Office & Factory Outlook:
Flow of Production :
OEM & ODM:
Certification:
Exhibition:
