HDMI 5X1 Switch with IR Control 5 Ports Support full 3D and 4K
1.0 Introduction

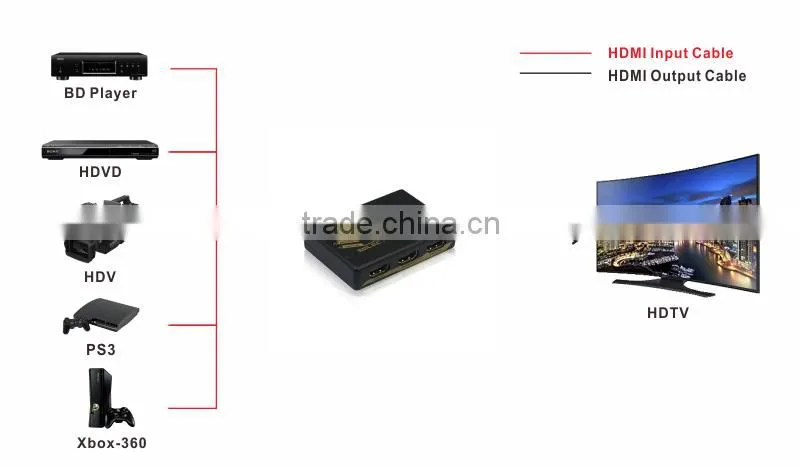

This HDMI Switcher routes high definition video (in multiple resolutions up to 4K X 2K)and digital audio from any one of the five sources to display unit. The output sends the high definition audio/video signals to a high definition display.
This kind of the HDMI Amplifier Switches not only has the key-press-switching function, but also has the IR remote control and intelligent function.
1.1Intelligent Function
1) When supplied with power, this switcher will select the power-on source device depending on the sequence automatically (input1>input2>input3>input4>input5)
2) Once the source device is turned on or plugged in (should stay power-on mode), the switches will automatically select this source
3) Once the source device is turned off or plugged out, the switches will automatically select the next power-on source depending on the sequence automatically
(input 1>input2>input3.input4>input5)
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off,
otherwise this switches can not meet intelligent function
2) When plugged in or out, this switches is completely intelligent
2.0 Feature
* Multifunctional on switching ; intelligent or mechanical
*IR extender receiver (included)
*IR remote (included)
* Support HDMI1.4b
* Support high Definition resolution 4KX2K@30,1080p and 3D.
* Support 300MHz/3.0Gbps per channel bandwidth.
* CEC Pass-through
* Support 12bit per channel deep color,36 bit total.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD)
3.0 Specification
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
4Kx2K |
Output Video |
HDMI1.4b |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
3.4Gbps/340MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4Kx2K |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power consumption (Max) |
5W |
IR extender receiver |
Yes |
IIR Remote |
Yes |
User Manual |
English Version |
Note:
1) Specifications are subject to change without notice.
2)Please switch on three input sources at the same time when using this no power needed switcher with PS4

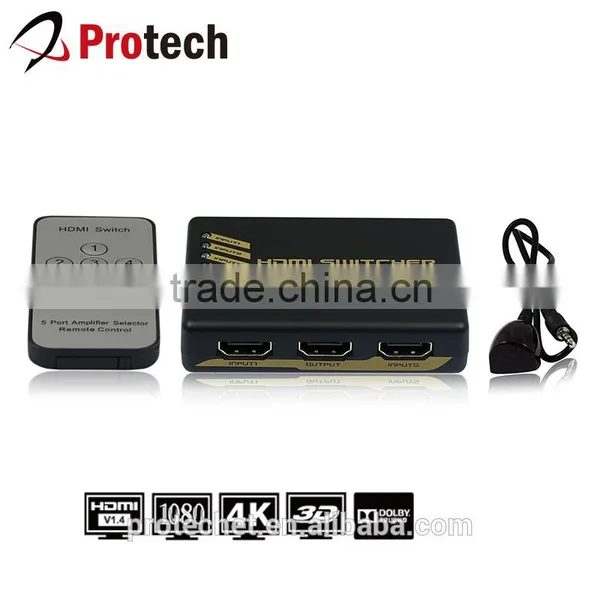

4.0 Package Content
1) Main unit.
2) IR receiver
3) Remote control
4) User's Manual
