Specifications
Portable Cnc Plasma Cutter TJ13251.DSP control system
2.imported powersupply
3.Untouched Arc Striking

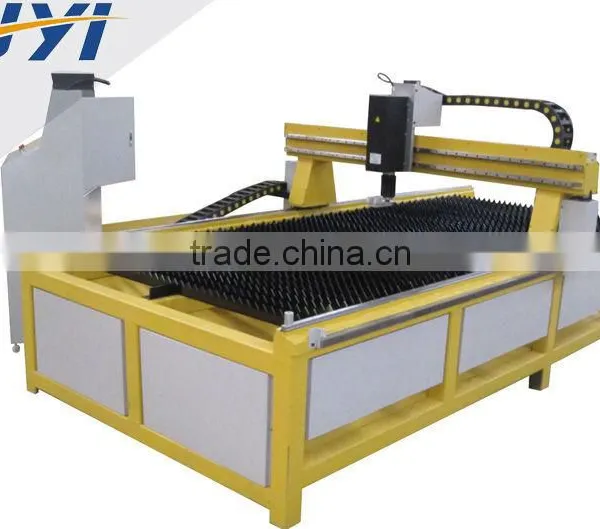

Portable CNC Plasma Cutter TJ1325
1.DSP control system
2.imported powersupply
3.Untouched Arc Striking
Features and Parameters
1) Features:
Unique structure:Gantry structure,double motor driver of Y axis.Light beam design,linear guiderail,high accuracy,stable transmission. Untouched plasma head,small cutting edge,no cutting residue. Water cooling system avoids the distortion of metal board. High cutting speed,high accuracy,low cost. Advanced numeral control system,stable performance.
Software compatability:Ucancam,Type 3,Artcam,etc. Success ratio of arc striking can be over 99%.
Application area: Metal sheets such as Iron sheets,Aluminum sheets,Galvanized sheets.Titanium Plates.
2) Parameters:
Working area: 1300X2500mm
Cutting thickness: best cut 12mm,
Drilling holes: 20mm
Max cutting thickness 30mm
Cutting speed: 0-8000mm/min
Power: 8.5KW
Input voltage: 3-phase 380V
Frequency of power: 50Hz
Plasma Current: 40A 60A 120A
Document transmission form: USB interface.
Working form: Untouched arc striking
