Portable Straight Line CNC Flame Cutting Machine System Plasma Cutting Machinework area 1500*3000mm
Hypertherm system and pla
Portable Straight Line CNC Flame Cutting Machine System Plasma Cutting Machine
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
1. Portable Straight Line CNC Flame Cutting Machine System Plasma Cutting Machine
photos:
Portable model with plasma torch

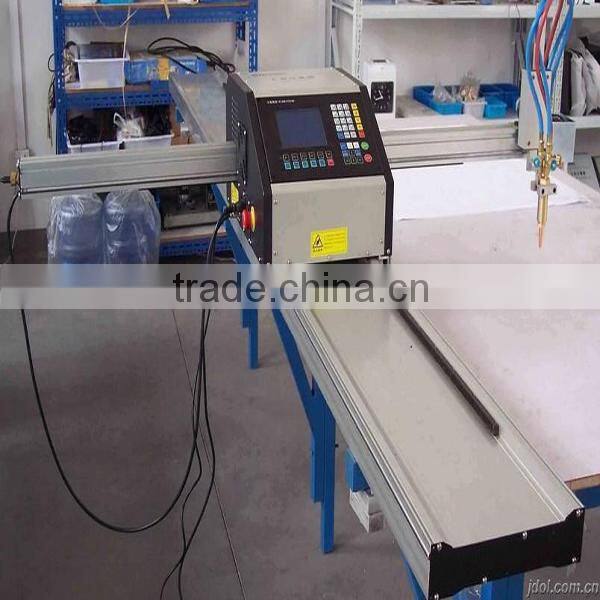

With simple table and flame cutting head

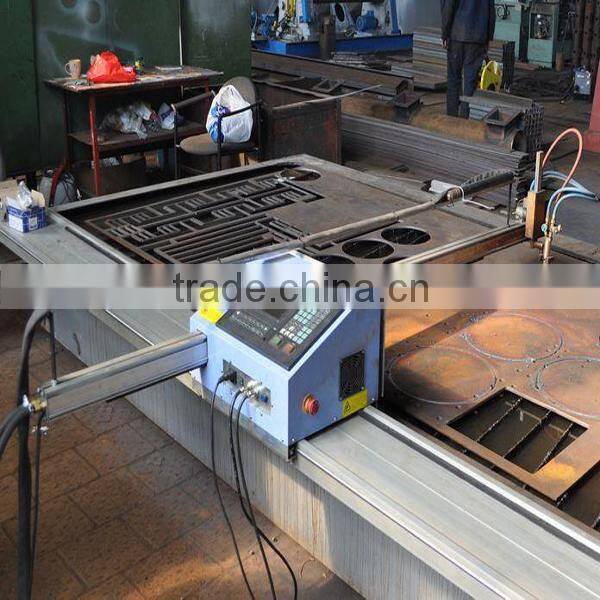

With cutting table
2. steel cutter/machine cutting plasma
Application: advertising industry, parts producing industry,metal making industry
Material:Metal such as: steel, stainless steel, carbon steel, iron,part aluminum, brass and so on.
3. steel cutter/machine cutting plasma
Parameters:
| Model | TJ1530P |
| Power Supply Voltage | 220V/110V |
| Power Supply Frequency | 50HZ / 60HZ |
| Rated Power Supply | 180W |
| LCD Display Dimension | 5.7 Inches |
| Effective Cutting Width (X axis) | 1500mm(59'') |
| Effective Cutting Length (Y axis) | 3000mm(118'') |
| Cutting Speed | 0-2500mm per minute |
| Plasma Cutting Thickness | 1-20mm (Depends on plasma power source) |
| Flame Cutting Thickness | 6--150mm |
| Certificate | CE |
| Program Software | FastCAM Standard Version/Ucancam |
| CNC System | Start system |
| Cross Beam Length | 1500mm |
| Longitudinal Rail Length | 3000mm |
| Longitudinal Rail Width | 196mm |
| Host Machine Dimension (L*W*H mm) | 508*344*305 |
| Cross Beam Weight | 9.3kg |
| Host Machine Weight | 26.7kg |
| Longitudinal Rail Weight | 76kg |
| Total Net Weight | 112kg |
| Gas Pressure | Max. 0.1Mpa |
| Oxygen Pressure | Max. 1.0Mpa |
| Cutting Gas | Oxy + Acetylene/Propane/Methane |
| Plasma Power Source | THERMADYNE Cutmaster A60 / Hypertherm PowerMAX 1000/1250/1650 |
| Plasma Air | Only pressed Air |
| Plasma Air Pressure | Max. 0.8Mpa |
Numerical Control System Technical Description:
1) 5.7' LCD display;
2) Film-cover operation key;
3) USB port supports program transfer;
4) 32--256M Memory for users' program;
5) Built-in Library of commonly used figures;
6) Break-point & power-cut restoration;
7) Return to reference point;
8) Mirror image;
9) Two-axes straight line and arc interpolation;
10) Pause, forward, backward, and speed regulation while machine working.
4. steel cutter/machine cutting plasma
Advantages:
1. Can cut any plane figures on metals include mild steel, stainless steel, cooper, aluminium, etc. ;
2. Support both plasma cutting and oxy-fuel cutting;
3. Low price, high efficiency;
4. Portable and lightweight, easy to move and operate;
5. FastCAM programme software, easy nest;
6. Plasma power source: Hypertherm or Thermadyne.
5. steel cutter/machine cutting plasma

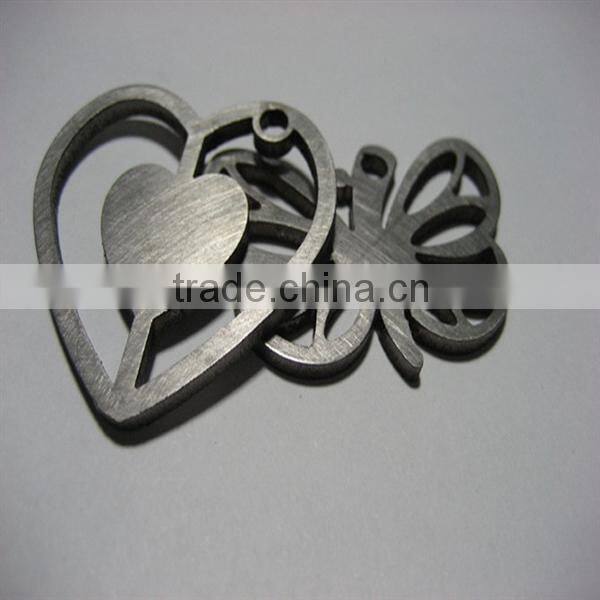

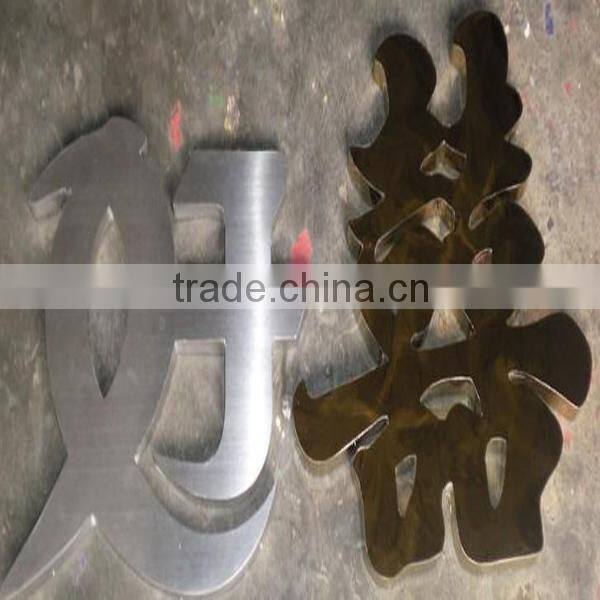

Sample:
6. steel cutter/machine cutting plasma
Machine selction:
1.cut which kind of metal
2.max cutting thickness and max drilling thickness
3.material size
4.`with table or wihout table model
Before sale
1.Patient introduce and professional suggest buying selection
2.Real time report production situation
3.Take pictures and make videoes with your done machine
4. Strict test and debugg machine quality before shipping
After sale
24 hours on line service and phone on
2 years gurantee term
During gurantee term, repair or change damaged parts for free
Exceed gurantee term, offer at cost price
Manager: Isabella
skype: xihong61
Trademanager: cn209782924
qq: 2417071086
Phone: 86 15866646109
