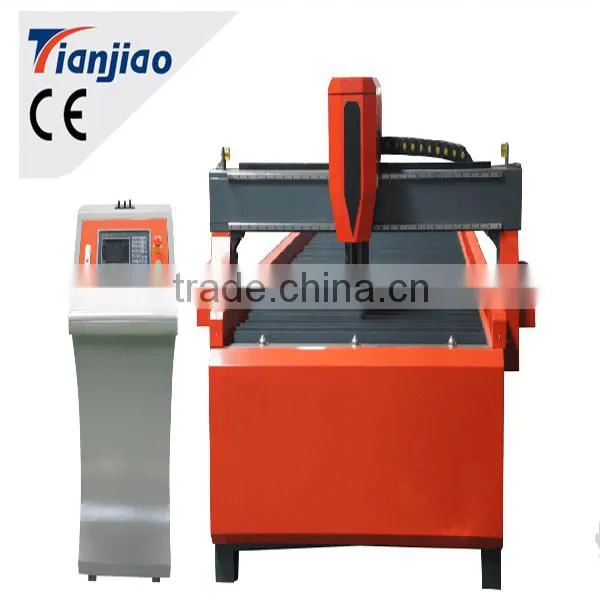

Industrial cnc plasma cutter
We are continuing to provide wide and flexible solutions by its new Plasma Cutting Machine has high and accuracy cutting quality, the advantageous of low working and investing cost, convenient for placing in a production line and for automation.
Plasma Cutting Machine can easily be operated and carried. It's produced with latest production technologies and used well-known and accepted cutting and CNC equipments.
High Plasma Technology provides high quality cutting on a wide range of material type and thickness. The acceleration of the system moves the torch or part, vibration features, accuracy on movement control, cutting speed and repetition availability, strong mono block frame, accuracy rails, rack and pinion and servo motors provides the high cutting quality on the Plasma Cutting Machine.
1.Application:
It is mainly designed for cutting small metal sheet such as Iron sheets, Aluminum sheets, Galvanized
sheets, Tianium Plates.And the valid cutting range is 1300*2500mm.The working area is 1300*2500
mm.
2.Configuration:
1.Thicken square tube welding structure column
2.Square orbit gea-rwheel
3.Import Hypertherm and Thermadyne power supply.
3.Features:
1.Gantry structure,double motor driver of Y axis.Light beam design,linear guide rail,high accuracy,
stable transmission.
2.Untouched plasma head,small cutting edge,no cutting residue. Water cooling system avoids the
distortion of metal board. High cutting speed,high accuracy,low cost.
3.Advanced numeral control system,stable performance. Software compatability: Ucancam,Type3,
Artcam,etc.
Success ratio of arc striking can be over 99%.

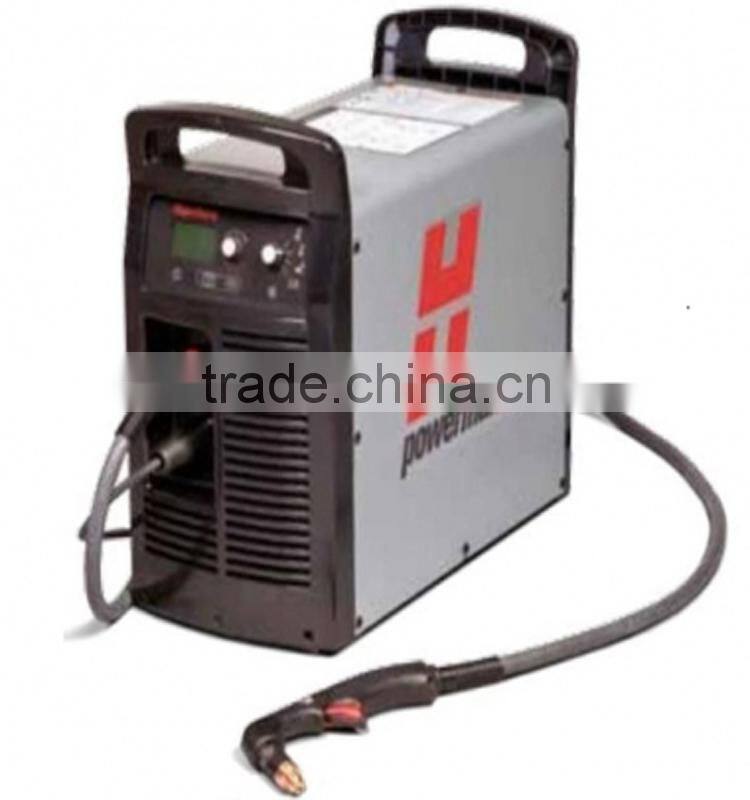

Power supply: Import Hypertherm and Thermadyne power supply.

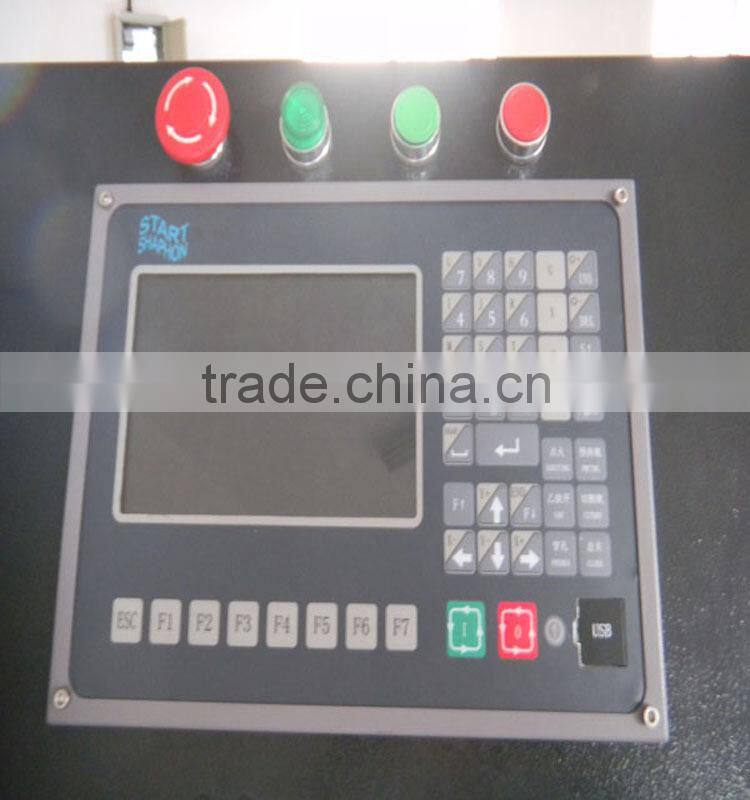

Control system: Start Control system
Structure: 3 axises square orbits, Gear-wheel
Software: UCANnest plasma software
4.Parameters
Working area |
1300*2500mm |
Applications |
Iron sheets, Aluminum sheets, Galvanized sheets, Tianium Plates. |
Working thickness |
0.5-15mm |
Cutting speed |
0-8000mm/min |
Power |
8.5KW |
Input voltage |
3phase 380V |
Frequency |
50Hz |
Current |
105A |
File transfer |
USB interface |
Working mode |
None touching Arc |

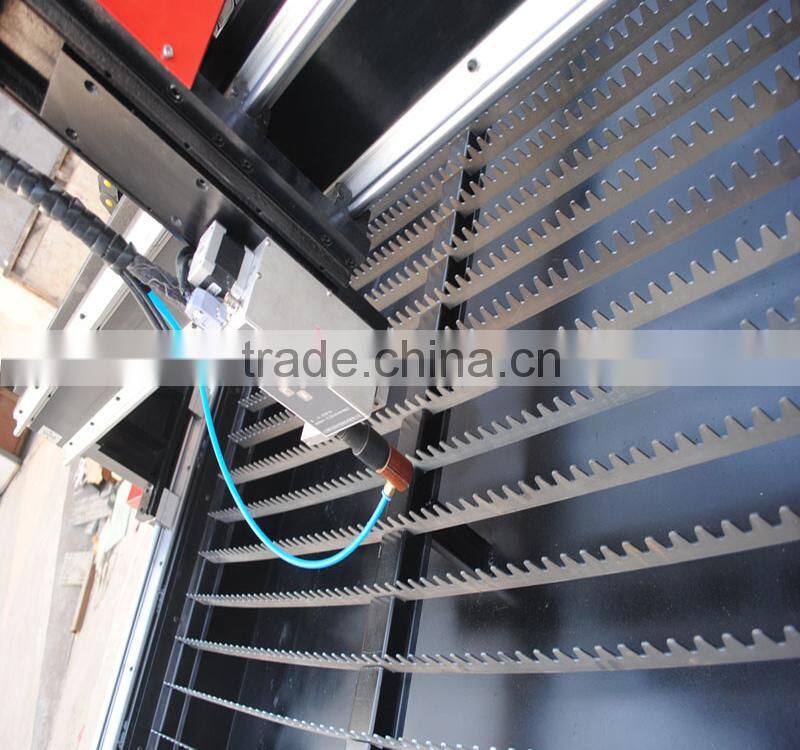

5.Parts

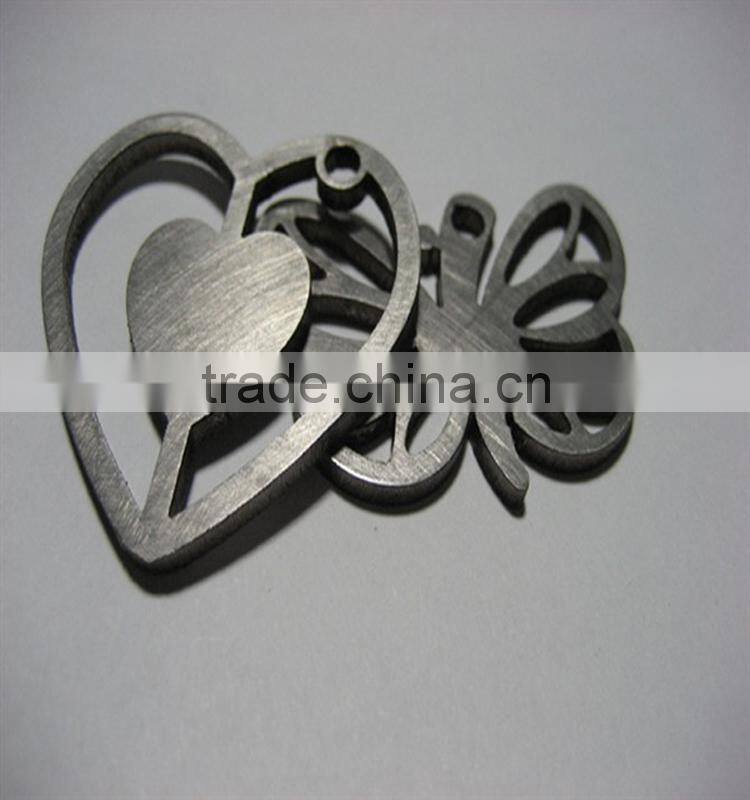

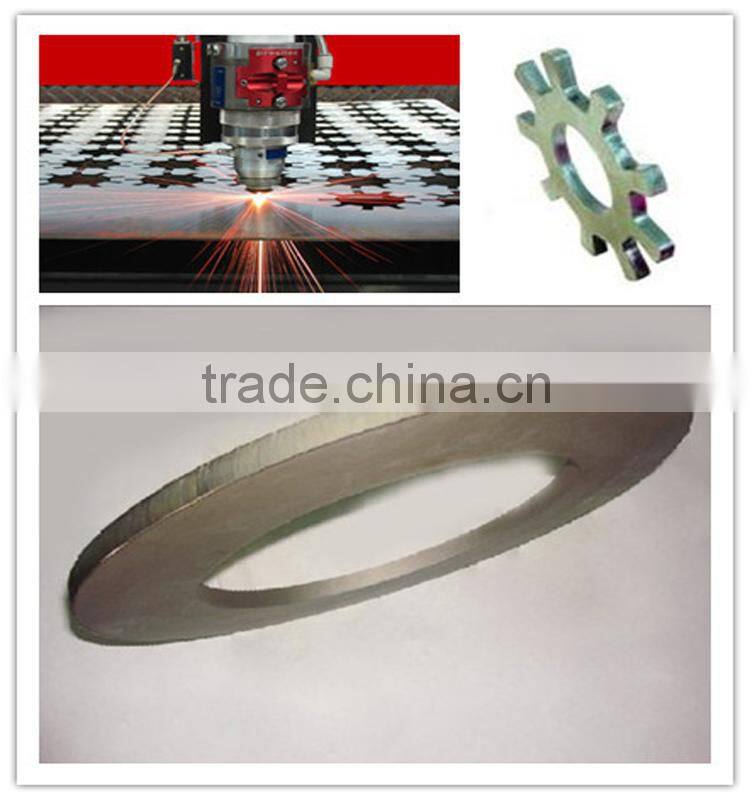

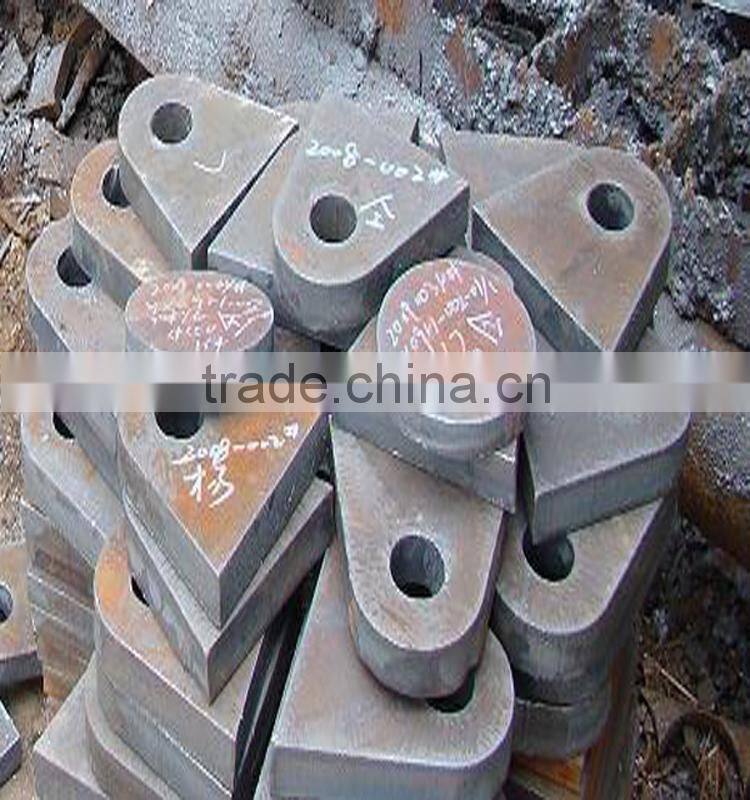

6.Samples
