Plastic Sheet Extruder Line
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
ShanghHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC Pipe Production LineUS$ 20,000 - 60,000MOQ: 1 Set -
High Efficiency HDPE Plastic Pipe Extrusion LineUS$ 20,000 - 150,000MOQ: 1 Set
-
Pvc Pipe MachineUS$ 18,000 - 60,000MOQ: 1 Set
-
Large Size Plastic Sheet Extrusion Producing LineUS$ 20,000 - 150,000MOQ: 1 Set
-
Newly CPVC Pipe Extrusion PlantUS$ 20,000 - 60,000MOQ: 1 Set
Condition
New
Application
Pipe
Plastic Processed
PVC
Screw Design
Double-screw
Automatic Grade
fully automatic
Place of Origin
Jiangsu, China
Brand Name
YAHUA
Model Number
SJSZ
Voltage
380V
Power(W)
22-132kw
Dimension(L*W*H)
35*3.5*3.8m
Weight
12T
Certification
CE&ISO
After-sales Service Provided
Engineers available to service machinery overseas
plastic sheet extruder line
PVC plastic pipe production line is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and construction etc.
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → hauloff machine → cutting machine → discharging rack
| Model of Extruder | SJSZ-51*105 | SJSZ-55*110 | SJSZ-65*132 | SJSZ-80*156 |
| Max.Pipe Diameter(mm) | Φ75 | Φ110 | Φ200 | Φ400 |
| Output(kg/h) | 50-100 | 80-150 | 140-250 | 200-300 |
| Drawing Model | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off |
| Hauling Speed(m/min) | 1-6 | 1-5 | 0.5-4 | 0.5-4 |
| Calibrating Way | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating |
| Cooling Way | Water Spraying | Water Spraying | Water Spraying | Water Spraying |
| Cooling Length(mm) | 6000 | 6000 | 10000 | 12000 |
| Cutting Model | Disk saw cutter | Planetary saw cutter | Planetary saw cutter | Planetary saw cutter |
| Cutting Power(kw) | 1.1 | 1.5 | 2.2 | 3 |
| Weight(kg) | 6000 | 7000 | 7500 | 9000 |
| Diemension(L*W*H)m | 16*2.2*1.9 | 17*2*2.7 | 18*2.2*2.9 | 25*2.5*3 |

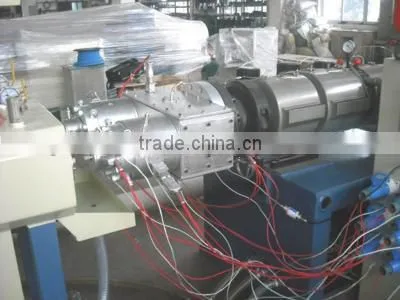

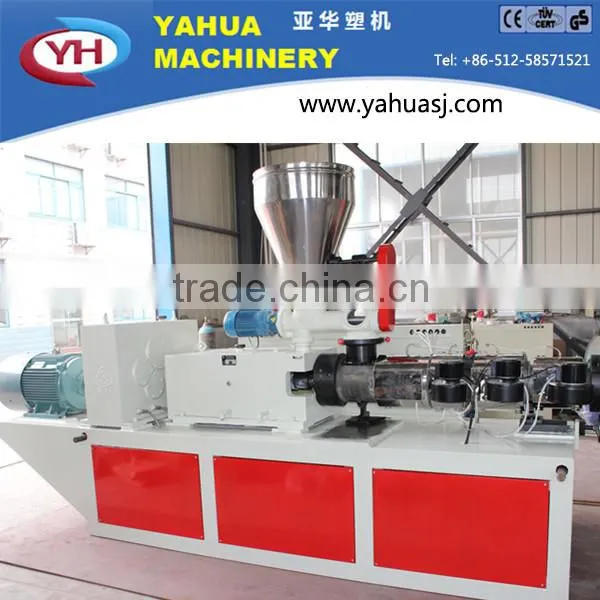

1.extruder
2.mould

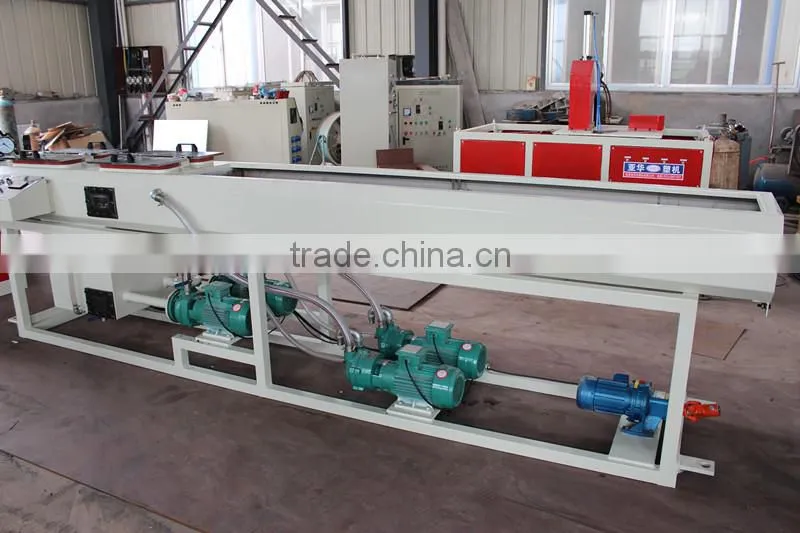

3.vacuum calibration tank
4.haul off and cutter
5.stacker
S
If you are interested in our YAHUA Machinery,
please feel free to contact us.
Of course, welcome to visit our company!
