Home > Products > Plastic Pipe Production Line > Pvc Pipe Machine
Pvc Pipe Machine
US$ 18,000 - 60,000
/ Set
1 Set(Min. Order)
- ShanghHai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | fully automatic | Place of Origin | Jiangsu, China | |
| Brand Name | YAHUA | Model Number | SJSZ | |
| Voltage | 380V | Power(W) | 22-132kw | |
| Dimension(L*W*H) | 35*3.5*3.8m | Weight | 12T | |
| Certification | CE&ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

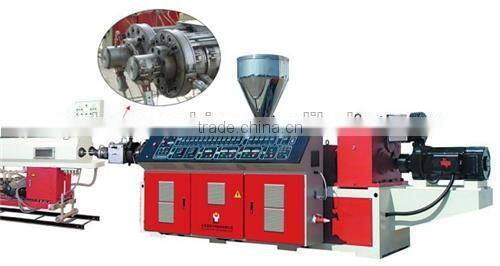

PVC pipe machine
PVC plastic pipe production line is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and construction etc.
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → hauloff machine → cutting machine → discharging rack
| Model of Extruder | SJSZ-51*105 | SJSZ-55*110 | SJSZ-65*132 | SJSZ-80*156 |
| Max.Pipe Diameter(mm) | Φ75 | Φ110 | Φ200 | Φ400 |
| Output(kg/h) | 50-100 | 80-150 | 140-250 | 200-300 |
| Drawing Model | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off |
| Hauling Speed(m/min) | 1-6 | 1-5 | 0.5-4 | 0.5-4 |
| Calibrating Way | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating |
| Cooling Way | Water Spraying | Water Spraying | Water Spraying | Water Spraying |
| Cooling Length(mm) | 6000 | 6000 | 10000 | 12000 |
| Cutting Model | Disk saw cutter | Planetary saw cutter | Planetary saw cutter | Planetary saw cutter |
| Cutting Power(kw) | 1.1 | 1.5 | 2.2 | 3 |
| Weight(kg) | 6000 | 7000 | 7500 | 9000 |
| Diemension(L*W*H)m | 16*2.2*1.9 | 17*2*2.7 | 18*2.2*2.9 | 25*2.5*3 |
1.extruder

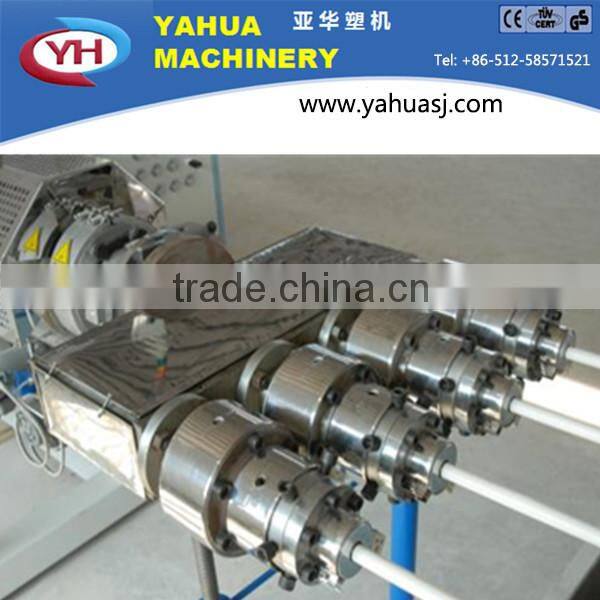

2.mould

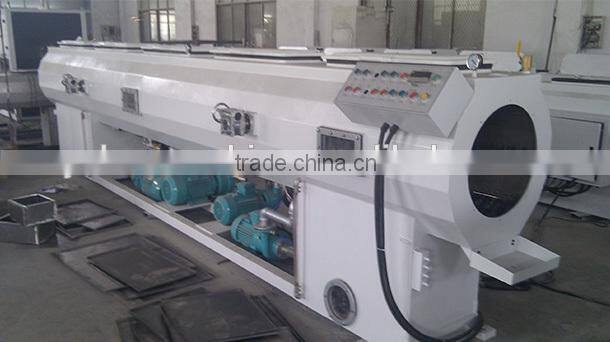

3.vacuum calibration tank
4.haul off and cutter
5.stacker
S
If you are interested in our YAHUA Machinery ,
please feel free to contact us.
Of course, welcome to visit our company!
Contact Us
- Zhangjiagang Yahua Plastic Machinery Co., Ltd.
- Contact nameShirley Shi Chat Now
- Phone0086-512-58571521
- AddressYanjiang Economic Development Zone, Leyu Town, Zhangjiagang, Suzhou, Jiangsu
