Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > Newly CPVC Pipe Extrusion Plant
Newly CPVC Pipe Extrusion Plant
US$ 20,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
ShanghHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
U-PVC Pipe Manufacturing MachineUS$ 20,000 - 60,000MOQ: 1 Set -
PVC Double Pipe Making LineUS$ 20,000 - 100,000MOQ: 1 Set
-
High Speed PVC Double Pipe MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
PPR Pipe Extruding LineUS$ 20,000 - 180,000MOQ: 1 Set
-
PE Pipe Extrusion Line for SaleUS$ 20,000 - 100,000MOQ: 1 Set
Condition
New
Application
Pipe
Plastic Processed
PVC
Screw Design
Double-screw
Automatic Grade
fully automatic
Place of Origin
Jiangsu, China
Brand Name
YAHUA
Model Number
SJSZ
Voltage
380V
Power(W)
22-132kw
Dimension(L*W*H)
35*3.5*3.8m
Weight
12T
Certification
CE&ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
newly CPVC pipe extrusion plant1.CE&ISO
2.full automatic
nical twin screw extruder
4.pipe diameter:16-630mm
2014 newly CPVC pipe extrusion plant pvc pipe production line description:
PVC plastic pipe production line is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and construction etc.
pvc pipe production line flow:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → hauloff machine → cutting machine → discharging rack
pvc pipe production line parameters:
| Model of Extruder | SJSZ-51*105 | SJSZ-55*110 | SJSZ-65*132 | SJSZ-80*156 |
| Max.Pipe Diameter(mm) | Φ75 | Φ110 | Φ200 | Φ400 |
| Output(kg/h) | 50-100 | 80-150 | 140-250 | 200-300 |
| Drawing Model | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off |
| Hauling Speed(m/min) | 1-6 | 1-5 | 0.5-4 | 0.5-4 |
| Calibrating Way | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating |
| Cooling Way | Water Spraying | Water Spraying | Water Spraying | Water Spraying |
| Cooling Length(mm) | 6000 | 6000 | 10000 | 12000 |
| Cutting Model | Disk saw cutter | Planetary saw cutter | Planetary saw cutter | Planetary saw cutter |
| Cutting Power(kw) | 1.1 | 1.5 | 2.2 | 3 |
| Weight(kg) | 6000 | 7000 | 7500 | 9000 |
| Diemension(L*W*H)m | 16*2.2*1.9 | 17*2*2.7 | 18*2.2*2.9 | 25*2.5*3 |

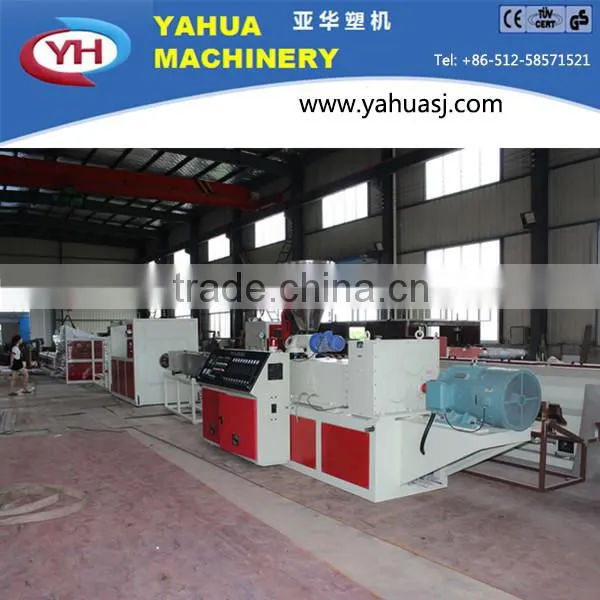

PVC pipe extrusion line pictures:
1.extruder

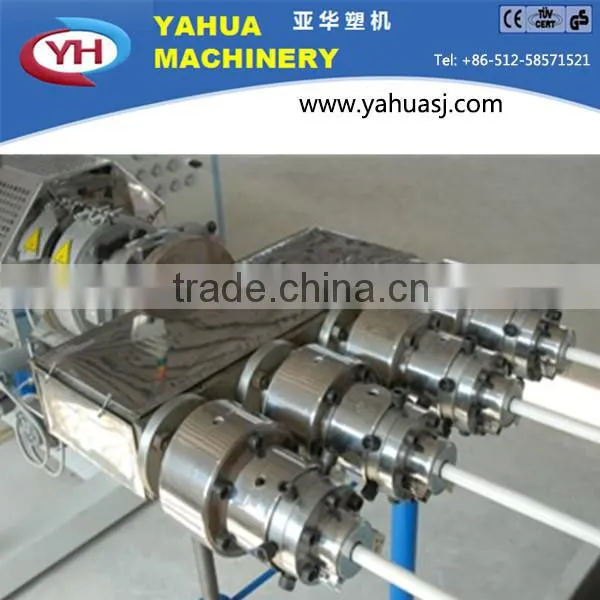

2.mould
3.vacuum calibration tank
4.haul off and cutter
5.stacker
S
If you are interested in our CPVC pipe extrusion plant ,
please feel free to contact us.
Of course, welcome to visit our company!
