Specifications
large size Plastic Sheet Extrusion Producing LineCE&ISO
full automatic
conical twin screw extruder
pipe diameter:16-630mm
Plastic Sheet Extrusion Producing Line
Plastic Sheet Extrusion Producing Line description:
plastic pipe machine is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and construction etc.
Plastic Sheet Extrusion Producing Line process flow:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → hauloff machine → cutting machine → discharging rack
Plastic Sheet Extrusion Producing Line parameters:
| Model of Extruder | SJSZ-51*105 | SJSZ-55*110 | SJSZ-65*132 | SJSZ-80*156 |
| Max.Pipe Diameter(mm) | Φ75 | Φ110 | Φ200 | Φ400 |
| Output(kg/h) | 50-100 | 80-150 | 140-250 | 200-300 |
| Drawing Model | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off |
| Hauling Speed(m/min) | 1-6 | 1-5 | 0.5-4 | 0.5-4 |
| Calibrating Way | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating |
| Cooling Way | Water Spraying | Water Spraying | Water Spraying | Water Spraying |
| Cooling Length(mm) | 6000 | 6000 | 10000 | 12000 |
| Cutting Model | Disk saw cutter | Planetary saw cutter | Planetary saw cutter | Planetary saw cutter |
| Cutting Power(kw) | 1.1 | 1.5 | 2.2 | 3 |
| Weight(kg) | 6000 | 7000 | 7500 | 9000 |
| Diemension(L*W*H)m | 16*2.2*1.9 | 17*2*2.7 | 18*2.2*2.9 | 25*2.5*3 |
Plastic Sheet Extrusion Producing Line pictures:
1.extruder
2.mould

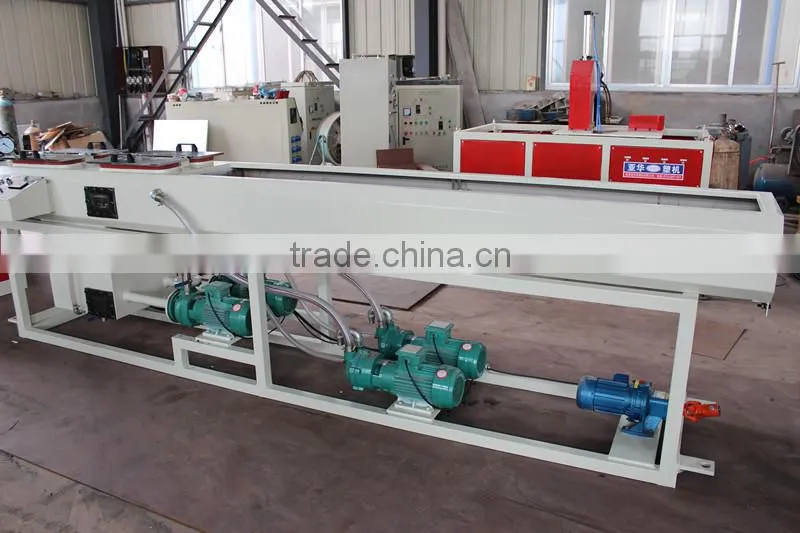

3.vacuum calibration tank
4.haul off and cutter
5.stacker
S
If you are interested in our Plastic Sheet Extrusion Producing Line ,please feel free to contact us.
Of course, welcome to visit our company!
Contactor:Shirley Shi
Skype:shirley_machin
