UPVC/CPVC Pipe Production line
- 10 Set / Sets per Month
- Shanghai port
- T/T
Product Details
Condition: | New | Product Type: | Plastic Pipe | Place of Origin: | Jiangsu, China |
Brand Name: | Yahua | Model Number: | Yahua machine | Voltage: | 380v, 220v, 440v |
Power(W): | 50kw-350kw | Dimension(L*W*H): | It depends | Weight: | It depends |
Certification: | CE, ISO9001 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
UPVC/CPVC Pipe Production line1.Traction big
2.Traction stability
3.easy operation
4.CE &ISO
UPVC/CPVC Pipe Production line
1. PVC pipe production line flow chart:
PVC powder+additives----------Mixier machine---Spiral loader-----Force feeding-------SJSZ twin screw extruder------------Extrusion mould—Vacuum forming tank—Printer---Haul-off machine---Cutter----Stacker
2. PVC pipe production line main technical parameters:
Model | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 | PVC-500/800 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm |
Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h | 1400kg/h |
Extrusion speed | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min | 0.05-1 m/min |
Extruder model | SJZ-50/105 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 |
Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm |
Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m | 42*3.5*3.2 m |

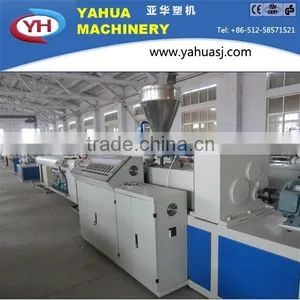

3. PVC pipe production line pictures for reference:
We can also manufacture UPVC/CPVC Pipe Production line , welcome to contact with us for more detail information.
Contactor:Shirley Shi
Skype:shirley_machine
Contact Us
- Zhangjiagang Yahua Plastic Machinery Co., Ltd.
- Contact nameShirley Shi
- Phone0086-512-58571521
- AddressYanjiang Economic Development Zone, Leyu Town, Zhangjiagang Suzhou,Jiangsu
