Factory price used pvc pipe production line
- 10 Set / Sets per Month
- ShanghHai
- T/T Credit Card
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | fully automatic | Place of Origin: | Jiangsu, China |
Brand Name: | YAHUA | Model Number: | SJSZ | Voltage: | 380V |
Power(W): | 22-132kw | Dimension(L*W*H): | 35*3.5*3.8m | Weight: | 12T |
Certification: | CE&ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
factory price used pvc pipe production lineCE&ISO
full automatic
conical twin screw extruder
pipe diameter:16-630mm
Factory price used pvc pipe production line
pvc pipe production line description:
PVC plastic pipe production line is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and construction etc.
pvc pipe production line flow:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → hauloff machine → cutting machine → discharging rack
pvc pipe production line parameters:
Model of Extruder | SJSZ-51*105 | SJSZ-55*110 | SJSZ-65*132 | SJSZ-80*156 |
Max.Pipe Diameter(mm) | Φ75 | Φ110 | Φ200 | Φ400 |
Output(kg/h) | 50-100 | 80-150 | 140-250 | 200-300 |
Drawing Model | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off |
Hauling Speed(m/min) | 1-6 | 1-5 | 0.5-4 | 0.5-4 |
Calibrating Way | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating |
Cooling Way | Water Spraying | Water Spraying | Water Spraying | Water Spraying |
Cooling Length(mm) | 6000 | 6000 | 10000 | 12000 |
Cutting Model | Disk saw cutter | Planetary saw cutter | Planetary saw cutter | Planetary saw cutter |
Cutting Power(kw) | 1.1 | 1.5 | 2.2 | 3 |
Weight(kg) | 6000 | 7000 | 7500 | 9000 |
Diemension(L*W*H)m | 16*2.2*1.9 | 17*2*2.7 | 18*2.2*2.9 | 25*2.5*3 |

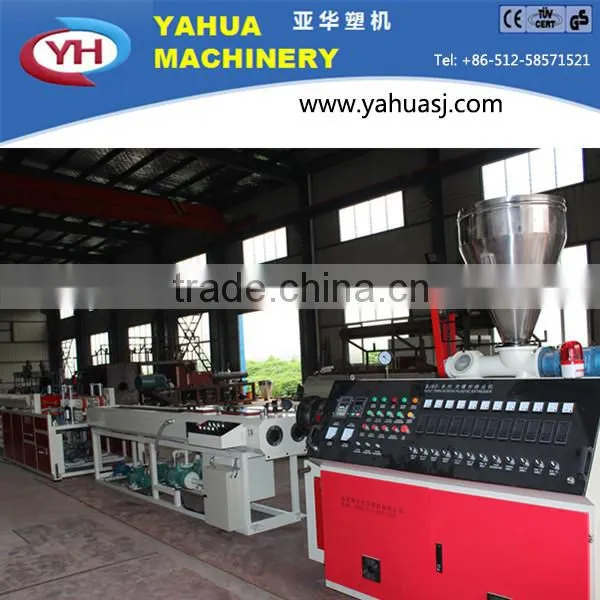

PVC pipe extrusion line pictures:
1.extruder
2.mould
3.vacuum calibration tank
4.haul off and cutter
5.stacker
S
If you are interested in our used pvc pipe production line ,
please feel free to contact us.
Of course, welcome to visit our company!
Contactor:Shirley Shi
Skype:shirley_machine
