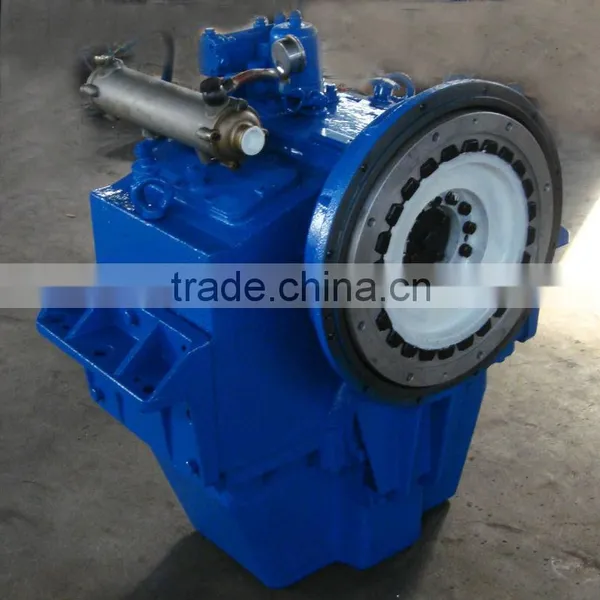

Qualified marine gearbox with competitive price and best service.Marine gearbox D300(A)
In general,the technical data of model D300(A) are the same with that of model 300 except those as follows:
1.Centre distance:355mm
2.Rated speed of matched engine:1000-2500rpm
3.Reduction ratio and corresponding transmission capacity:
Normal ratio |
Practical ratio |
Trans.capacity kW/(rpm) (HP/rpm) |
4:1 |
4:1 |
0.257(0.350) |
4.5:1 |
4.48:1 |
0.243(0.330) |
5:1 |
5.05:1 |
0.22(0.300) |
5.5:1 |
5.52:1 |
0.184(0.250) |
6:1 |
5.9:1 |
0.184(0.250) |
6.5:1 |
6.56:1 |
0.147(0.200) |
7:1 |
7.06:1 |
0.147(0.200) |
7.5:1 |
7.63:1 |
0.125(0.170) |
4.Direction of input shaft(facing output end):ZD300:left-handed(anti-clockwise)
YD300:right-handed(clockwise)
5.Rated propeller thrust:60,000N
6.Overall dimension(LXWXH):786X980X1041mm
7.Net weight:940kg
