Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > 16A Marine Gear Box

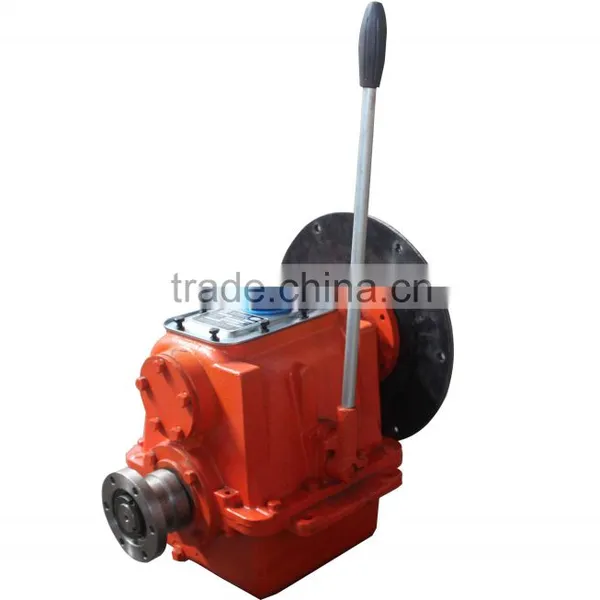

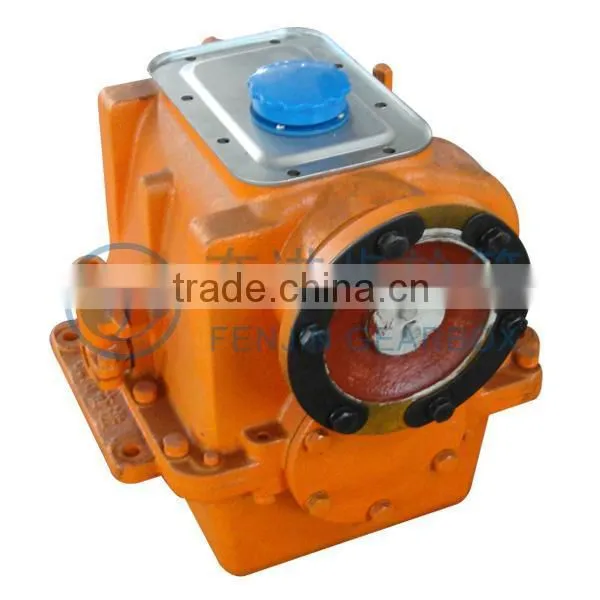

16A Marine Gear Box

Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

16A

Contact Supplier Request Quote Chat Now

Hangzhou Fenjin Gearbox Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name FJ

Model Number 16A

Gearing Arrangement Helical

Rated Power 6-24kw

Input Speed 1000-2000rpm

Specifications

marine gearbox,ship gear case,ship transmission case,marine transmission part,gearbox,vessel diesel engine part,fishing boat

Marine gearbox model: 16A is the series products manufactured by FENJIN company. It is a kind of mechanically operated power transmission unit designed for small crafts.

Marine gearbox 16A is simple in construction, easy of assembling and disassembling, and convenient for maintenance.

Marine gearbox 16A performs the duties of ahead and astern drives, clutching and declutching, as well as as the reduction of speed.

Model: 16A

Description	symbols	Unit	Technical parameters and specification
Description	symbols	Unit	Type16A
Rated transmission power	p n	KW/(r•min-1)	0.0018 (0.016)
Rated aped of input shaft	n	r•min	2000
Rated transmission torque	T	N•m	112.7 (11.5)
Rated propeller thrust	F_r	N	3528 (360)
Time required for reversing	_t	s	Less than 10
Force applied to the handle of control lever while reersingunder running conditions	F_r	N	98~147 (10-15)
Direction of rotation of the output shafte (facing the output end)	Z	—	Left-handed turning (counter-clockwise)
Direction of rotation the output shaft(ahead drive)	F	—	Contrary to the direction of rotation of the input shaft
Centre distance	a	mm	135
Overall dimensions (with connecting housing)	l×w×h	mm	422×555×563
Net weight* (with connecting housing)	m	Kg	92
