Marine gearbox MB170

Specifications

marine gearbox,ship gear case,ship transmission case,marine transmission part,gearbox,gear reducer,diesel engine,engine part

We specializes in producing kinds of series engineering mechanical gear case, marine gearbox and various fittings.

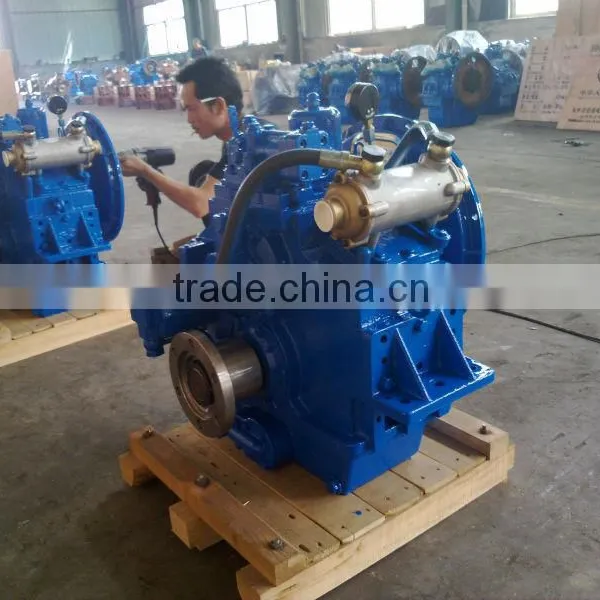

Marine gearbox MB170:

1.Transmission mode: 3 shafts with 5 helical gears.

2.Clutch: Hydraulically-controlled wet-type multi plates.

3.Input coupling: Toothed rubber flexible coupling.

4.Input speed: 1000-2500rpm.

5.Ratios and the transmission capacity:

Normal ratio	Practical ratio	Trans.capacity kW/(rpm)
2:1	1.973:1	0.039
2.5:1	2.516:1	0.039
3:1	3.037:1	0.039
3.5:1	3.542:1	0.039
4:1	3.955:1	0.039
4.5:1	4.5:1	0.031
5:1	5.056:1	0.031
5.5:1	5.471:1	0.027
6:1	5.875:1	0.027

6.Overal dimension(L*W*H): 510*670*656mm

7.Net weight:            240kg.

8.Recommend engine:    CATERPILLAR 3208,3304;VOLVO TAMD-60A;TAMD-70B;

PERING T6.35M V8.510M;GARDNER LM4,LM6,ETC.
