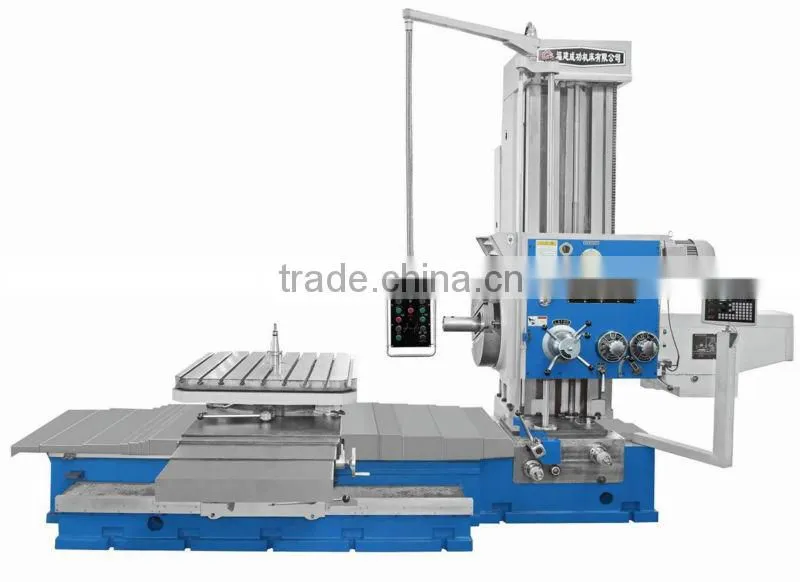

MB611TA Horizontal Milling and Boring Machine

Name: MB611TA Horizontal Milling and Boring Machine
Brand: SMARTECH
SKU: 123974235

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Production Capacity:

30 days per order

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen (Any one in China)

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Production Capacity 30 days per order

Place of Origin Guangdong, China

Brand Name SMARTECH

Model Number MB611TA

Voltage 380V

Power(W) 11

Dimension(L*W*H) 4900*2250*2950

Weight 16,000

Certification ISO

Specifications

This machine is boring layout for the traditional desktop lying, fixed column, side hung spindle box.

Specification
		MB611TA
Spindle diameter m/m	mm	110
Spindle taper m/m	mm	ISO50#(7:24)
Spindle speed r/min	r/min	9-1000(18 Steps)
Power of main drive motor KW	KW	11
Max drilling capacity of spindle mm	mm	50
Max boring capacity of spindle mm	mm	300
Speed of facing chuck r/min	r/min	6-221(14 Steps)
Traverse of facing chuck slide mm	mm	170
Max boring capacity of facing chuck mm	mm	600
Table size(L×W) mm	mm	1200×1100
Table load Kg	Kg	4000
Traverse travel of table(X)mm	mm	1600
Vertical travel of spindle head(Y)mm	mm	1400
Longitudinal travel of table(Z)mm	mm	1500
Axial travel of spindle mm	mm	600
Range of spindle, headstock and table feeds per spindle revolution mm/r	mm/min	12 Steps 0.04-6mm
D RO		X,Y,Z
Overall dimensions of machine (L×W×H)mm	mm	1900×2850×1800
Weight of machine(approx) kg	Kg	18000
