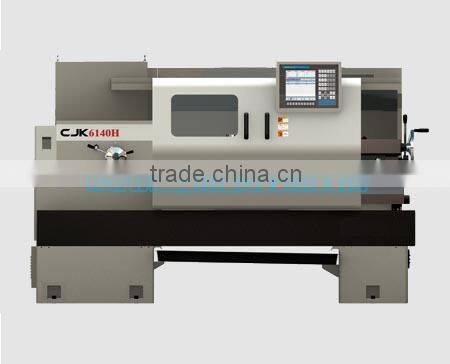

Flat bed CNC lathe CJK6166HThis is one of our simple CNC lathe , turning lenght can be choosed from 750 to 2000 mm
Introduction
With 4-station turret (6-station optional turret), with protective door that ensures the operator’s safety. This series economic type CJK6140H/50H/66H CNC lathes are available for different needs of customers. The lathe has 4 types (750, 1000, 1500 and 2000). The lathes can perform internal and external cylindrical turning, arbitrary taper turning, arc turning, facing and Metric and Inch threading. They are suitable for various middle or small batch productions, especially for complicated and high accuracy workpiece.
Specifications (* means with 6-tool turret)
ITEMS |
Unit |
CJK6140H |
CJK6150H |
CJK6166H |
|
Capacity |
Max. swing dia. over bed |
mm |
Φ400 |
Φ500 |
Φ660 |
Max. swing dia. over carriage |
mm |
Φ200 |
Φ280 |
Φ440 |
|
Max. turning diameter |
mm |
Φ400/Φ350* |
Φ500/Φ350* |
Φ550 |
|
Distance between centers |
mm |
710/960/1460/1960 (620/870/1320/1870)* |
|||
Max. turning length |
mm |
570/820/1320/1820 (500/750/1250/1750)* |
|||
Spindle |
Type of spindle nose |
Φ52:ISO 702/Ⅲ C6 Bayonet Φ82,Φ105:ISO 702/Ⅱ D8 Short-taper cam-locking type |
|||
Spindle bore diameter |
mm |
Φ52 |
Φ52/Φ82/Φ105 |
Φ82/Φ105 |
|
Spindle speed |
rpm |
21-step 11-1600 12-step 36-1600(Φ105) |
|||
Spindle drive motor power(continuous or 30minutes) |
kW |
7.5 |
|||
Tailstock |
Quill diameter |
mm |
Φ75/Φ80(hydraulic tailstock) |
||
Quill travel |
mm |
150/130(hydraulic tailstock) |
|||
Tailstock quill taper(manual) |
. |
Morse No.5 |
|||
Turret |
X/Z rapid traverse rate |
m/min |
6/12 |
||
Number of tool stations |
4 |
||||
Tool section |
mm |
25×25 |
|||
X travel |
mm |
300 |
|||
Z travel |
mm |
650/900/1400/1900 |
|||
Others |
Dimensions (L×W×H) |
mm |
2250/2500/3000/3500×1370×1690 |
||
Package dimensions (L×W×H) |
mm |
2550/2800/3300/3800×1920×2200 |
|||
Net weight |
kg |
2050/2100/ 2150/2200 |
2100/2150/ 2200/2260 |
2140/2190/ 2240/2500 |
|
Standard Components:
1) High-class casting processed by resin sand and wood mould;
2) Manual 3-jaw chucks ;
3) Manual tailstock ;
4) Vertical 4-tool tool post;
5) Coolant pump;
6) Guarding (sheet metal);
7) Centralized lubrication system;
8) Fanuc control system 0i-mate.
9) Tools (spanner, screw driver and so on) and tool box.
