Vertical Machining Center

Vertical Machining Center thumbnail-1
Vertical Machining Center photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vertical
Place of Origin Guangdong, China
Brand Name Smartech
Model Number VMC850,1060,1155
Voltage 380V
Power(W) 5.5-11 Kw
Dimension(L*W*H) 330X290 X300
Weight 4500-7300 Kg
Certification CE ISO

Specifications

High performance with competitive price Mitsubishi, Fanuc, GSK or Syntec Controller.
Both frame and complete machine.

  •                                   Smartech 4th axis CNC machining center

  • SPECIFICATION

We also supply smller one like VMC-545 and bigger ones like VMC-1890.



MODEL

VMC-650

VMC-850

VMC-950

VMC-1060

VMC-1155

Travel X/Y/Z
(mm)

650/400
/480

800/500
/550

920/500
/550

1000/600
/600

1100/550
/600

Spindle Nose-
Table Surface (mm)

80-560

105-655

80-630

180-780

150-750

Spindle-Column
Slideway (mm)

480

550

515

600

610

Max X/Y/Z Rapid
Feed Rate (mm/min)

12000

18000

Max X/Y/Z Cutting

Feed Rate (mm/min)

6000

6000

Table Size (mm)

420X800

460X950

405X1370

600X1300

580X1200

Table Working Load
(kgs)

600

600

600

800

1000

T-Slot (No.X size
/Distance) (mm)

3X18/135

3X18/150

5X16/60

5X18/120

5X18/120

Max Spindle Speed
(rpm)

8000

Spindle Taper
/Outside Diameter
(mm)

BT40/150

Main Motor (Kw)

5.5/7.5

5.5/7.7

7.5/11

Drive Motor Torque
X/Y/Z (Nm)

12/12/12

12/12/12

12/12/12

22/22/22

12/16/16

Positioning Accuracy
(mm)

±0.005/300

Repeating Positioning
Accuracy (mm)

±0.003/300

Machine Net Weight
(kgs)

4500

5000

4500

8300

7300

Dimension
(LXWXH cm)

234X227
X225

270X235
X263

290X270
X260

330X290
X300

330X290
X300

*Also provide linear-type slide ways.





  • CHARACTERISTICS:

1)    Meehanite casting body, hardened working table and slide ways coated with turcite-B, high rigidity and fine stability;

2)    Box-type slide way with high rigidity for heavy duty industry; linear-type slide way with high efficiency for hardware industry;

3)    High quality spindle, ball screw, bearings, linear slide way and coupling; full close guarding;

4)    Auto lubrication system;

5)    Optional CNC controller Fanuc, Mitsubishi and GSK.



  • STANDARD ACCESSORIES:

1      Resin mould high-class casting ;

2      Top-class imported ball-screws sets and bearing ;

3      Imported spindle & pneumatic tool change system ;

4      Germany direct drive connectors ;

5      Telescopic steel protection on X/Y/Z axis ;

6      Central lubrication system ;

7      Coolant system ;

8      Harden & ground box friction slideways and Turcite-B coated with precise scraping on attached surface, top class liner slideways (for VMC-L series) ;

9       Full-enclosed outside guarding ;

10     Heat exchange fan on electric cabinet ;

11     Spindle air blast system ;

12     Rigid tapping function ;

13     Electric handwheel

14     RS-232 interface

15     Transformer (subject to CNC and market)

16     Genova drum type ATC (10, 16, 20 tools subject to machine model), turret type ATC for model DTC-540L

17     Working lamp and alarm lamp

18     FANUC 0iMB, 0Imc CNC Controller

  • OPTIONAL ACCESSORIES:

1      Spindle speed optional choose: 10000rpm, 12000rpm, 15000rpm

2      Arm type ATC (16, 24, 32 pcs subject to machine model)

3      Central oil coolant for the spindle

4      Coolant through spindle

5      4th Axis CNC rotary table

6      Chip conveyor: Helix type or chain type

7      Air-conditioning system on electric cabinet

8      Back flush cleaning system

9      CE standard

10    Other CNC controller on requested (Siemens, Heidenhain, Mitsubishi, Fagor, China GSK etc.)

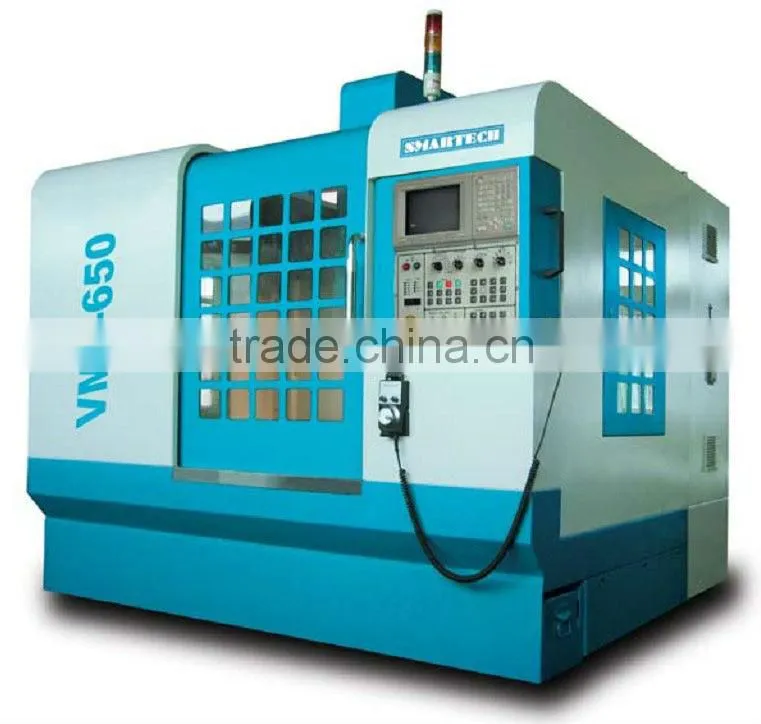

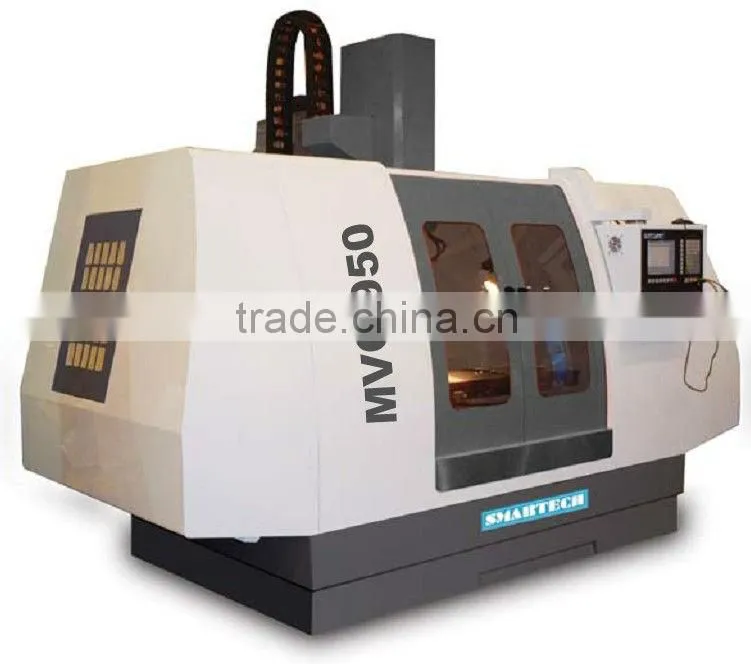

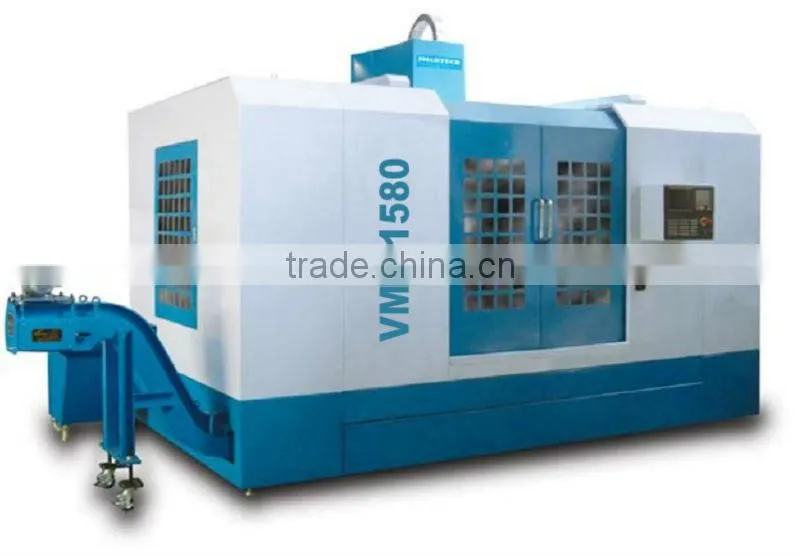

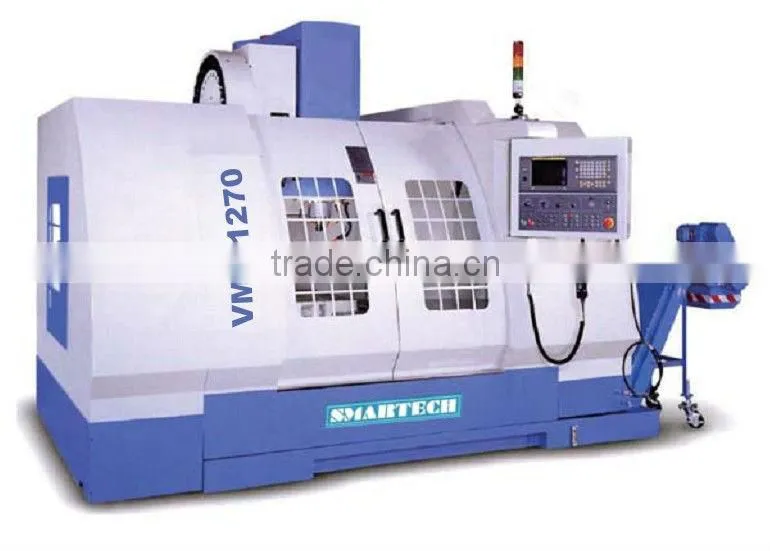

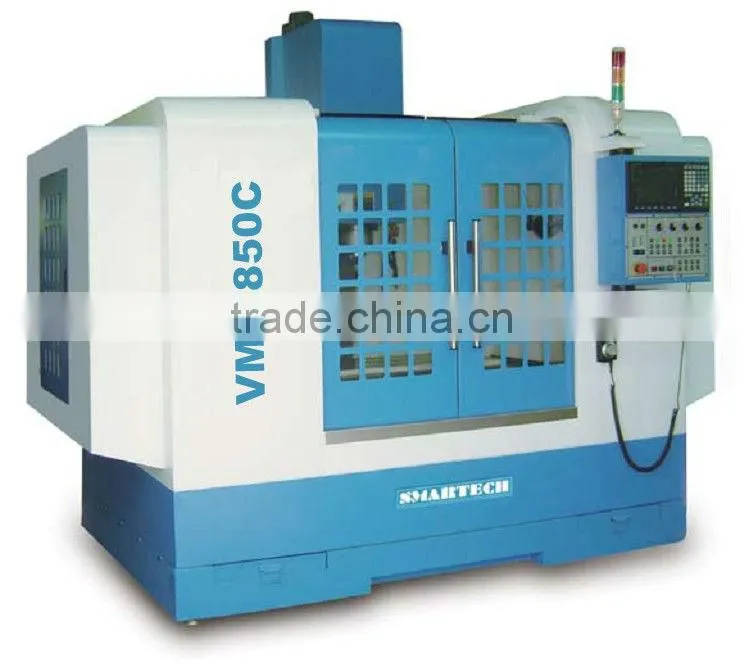

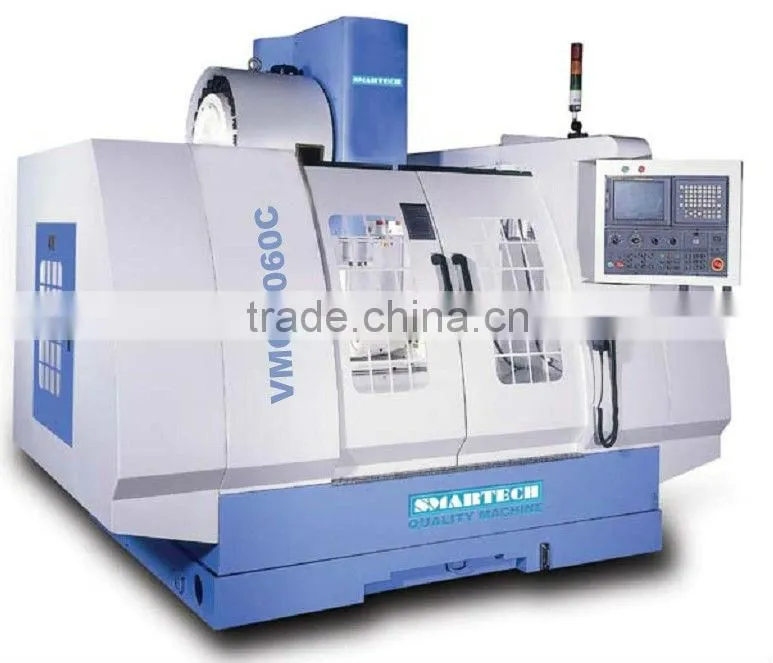

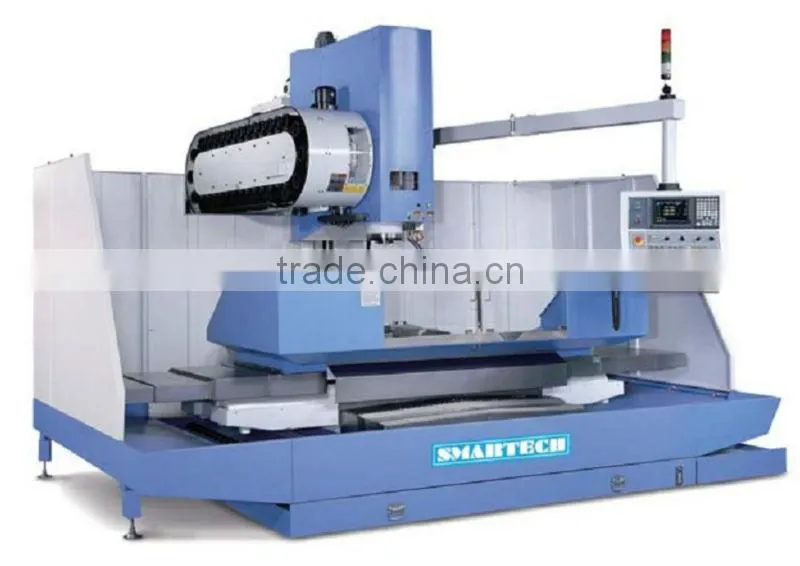

Pictures Box-type Vertical Machining Centers:



Vertical Machining CenterVertical Machining CenterVertical Machining CenterVertical Machining CenterVertical Machining CenterVertical Machining Center

Vertical Machining Center
