CNC Lathe-SK40P,SK50P

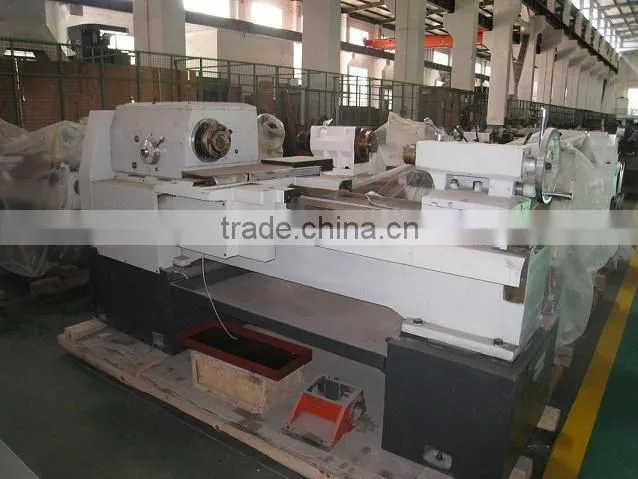

Name: CNC Lathe-SK40P,SK50P
Brand: Smartech
SKU: 123974021

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

Smartech

Model Number:

SK40P,SK50P

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name Smartech

Model Number SK40P,SK50P

Specifications

CNC Lathe - SK40P,50P
3 steps gear box , import invertor , use Fanuc 0i Mate , GSK980TDa controller , good performance !

CNC Lathe SK40P , SK50P

specification

SPECIFICATIONS		UNIT	SK40P	SK50P
Capacity	Max.swing over bed	mm	Φ400	Φ500
	Max.swing over cross slide	mm	Φ200	Φ280
	Max.turning dia.	mm	Φ400 / 350	Φ500/350
	ingpiece length	mm	710/620;960/870;1460/1370;1960/1870
	Max.turning length	mm	570/500;820/750;1320/1250;1820/1750
Spindle	Spindle nose	m	ISO 702/D8 shot cam-lock

			ISO 702 ⅡD8 / A 2-8(power chuck)
	Spindle bore	mm	Φ77	Φ77
	Spindle speeds	r/min	3 gears stepless 21-1620
			H:162-1620 M:66-660 L:21-210
	Max.output of torque	N.m	800
Tailstock	Tailstock quill diameter	mm	Φ75(Φ80 hydraulic)
	Tailstock quill taper	MT No.	MT No.5(MT No.3 hydraulic)
	Max.quill travel	mm	150(130 hydraulic)
	Tailstock cross movement	mm	±15
Turret	Number of tool	m	4(standard)/6(optional)
	Tool shank size permissible	mmxmm	25X25
	Turret travel	mm	X-axis: 275/225 Z-axis: 650/900/1400/1900
	Rapid traverse ( Max.) m/min	m/min	X -axis 6
			Z -axis 8
	Lead screw pitch	mm	X -axis5 Z -axis: 6
Other	Main motor		DP132M-4 7.5kW freq. inverting motor
	Coolant pump		AYB-25 120W 25L/min
	Drive belt		B1854 4 pieces	B1930 4 pieces
	CNC system: FANUC 0i-MATE-TD; GSK 980T; HNC 21T
	Dimension LWH	mm	750	2250×1370×1690
			1000	2500×1370×1690
			1500	3000×1370×1690
			2000	3500×1370×1690
	Packing size(LWH)	cm	750	275(287)×183×215
			1000	300(315) ×183×215
			1500	350(365)×183×215
			2000	400(415) ×183×215
