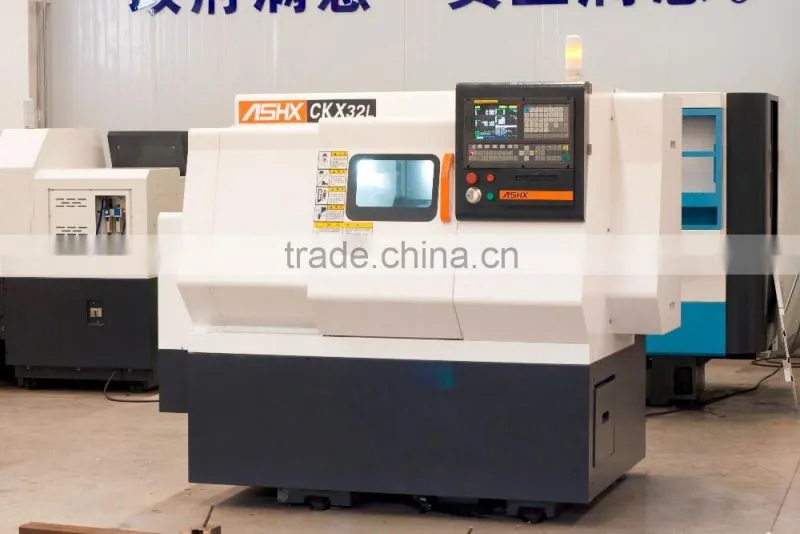

CNC LATHE STRUCTURE

Name: CNC LATHE STRUCTURE
Brand: Smartech, SMARTECH
SKU: 123974007

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Yunnan, China

Brand Name:

Smartech, SMARTECH

Model Number:

TCK series, CK-3016/4516/4525/4545

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Yunnan, China

Brand Name Smartech, SMARTECH

Model Number TCK series, CK-3016/4516/4525/4545

Application Turning

Maximum Torque 4-15 Nm

Drive Belt Drive

Operating Speed 3000-6000 RPM

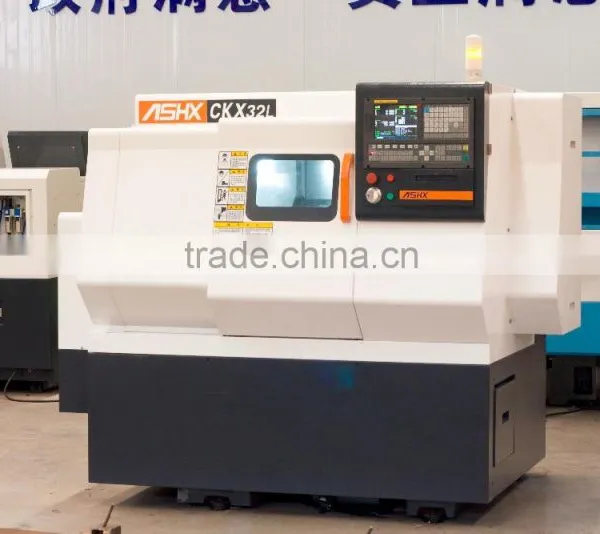

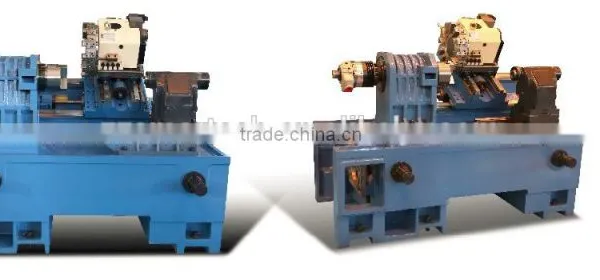

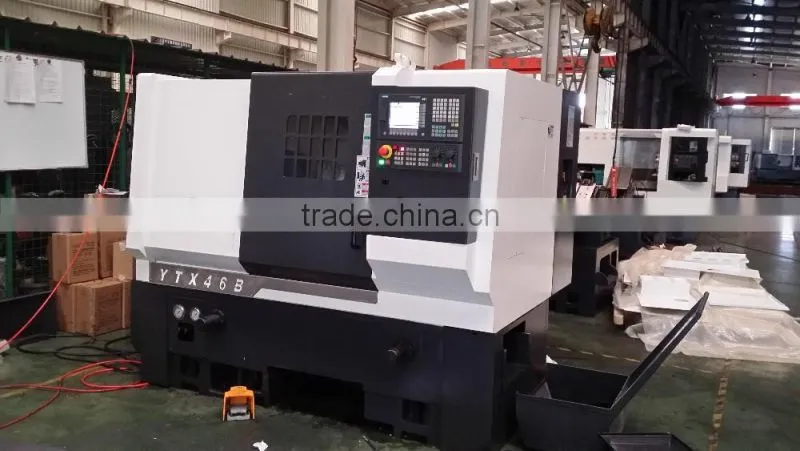

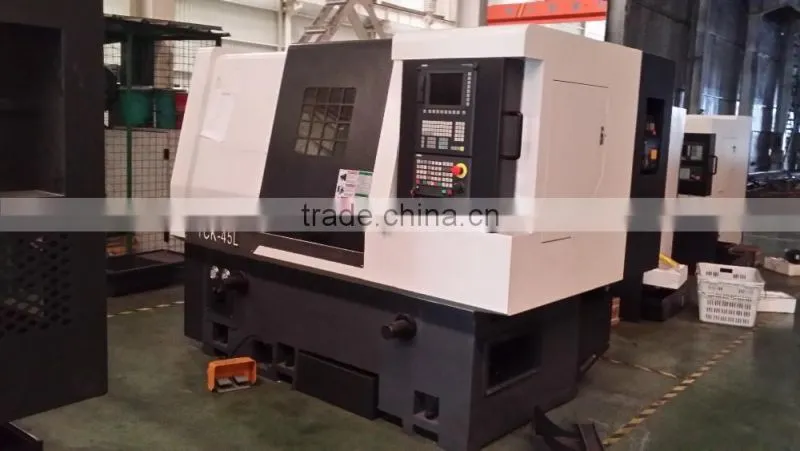

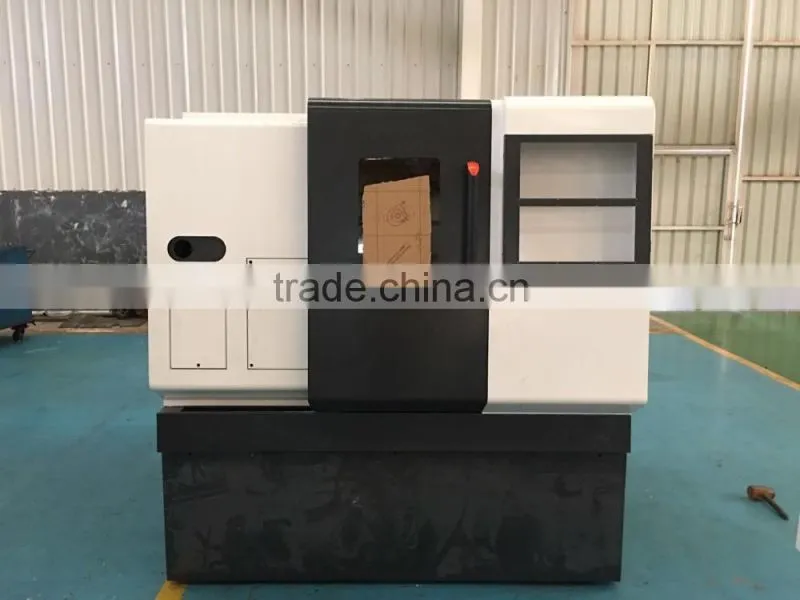

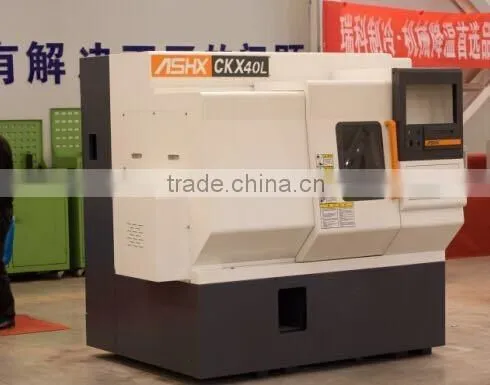

SMARTECH CNC LATHE FRAME SLANT BED TYPE

1 Resin mould high-class casting ;

2 Top class imported ball screws sets and bearing ;

3 Imported linear slide ways ;

4 Imported spindle ;

5 Imported hydraulic chuck ;

6 Imported drive connectors ;

7 Stainless steel telescopic protection ;

8 Central lubrication system ;

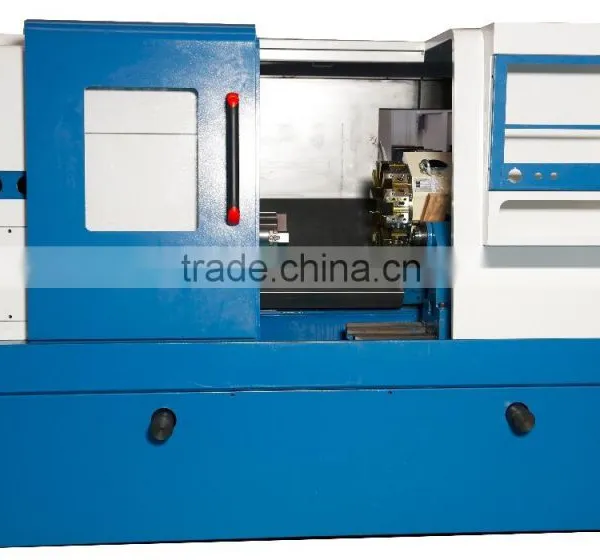

1 Imported hydraulic turret ;

2 Imported tailstock ;

3 Outside Guarding: Standard or special made according to client's design ;

4 CNC Pre-installed for clients: whole Full Ready package delivery according to client's design .

SPECIFICATION		TCK4540/300	TCK 4545/400	TCK 4550/580	TCK 4558/960
l ProgramableTravel (mm)	X	120	165	240	350
l ProgramableTravel (mm)	Z	400	500	620	1120
l Max. Swing diameter over toolpost ( mm )		160	250	320	360
l Max. Swing diameter over bed( mm )		400	450	500	580
l Max. Turning length ( mm )		300	400	580	960
l Spindle Taper		MT6#	MT6#	MT6#	MT6#
l Spindle bore diameter (mm)		49	49	87	87
l Chuck tpye		A2-5	A2-6	A2-8	A2-8
l Max.Spindle Speed		4500rpm	4500rpm	2600rpm	2600rpm
l Bed Inclined Angel		45°	45°	45°	45°
I Tailstock	Quill diameter	65	65	100	100
	Quill travel	80	80	120	120
	Tail stock travel	300	710	670	1250
	Tail stock tapper	MT 4#	MT 4#	MT 5#	MT 5#
l X/Z axis Ball Screw Spec.		X: GQ2506-C4 Z: GQ3210-C4	X: GQ3210-C4 Z: GQ4010-C4	X: GQ3206-C4 Z: GQ4010-C4	X: GQ4006-C3 Z: GQ5010-C4
l X/Z axis Linear Slideways Spec.		X: MSB35-P class Z: MSB35-P class	X: MSB35-P class Z: MSB35-P class	X: MSB35-P class Z: MSB35-P class
l X/Z Motor Connection		Direct connection
l Spindle Motor Connection		Pulley and belt
l Turret Position		8	8	10	12
l Net Weight		2200kg	3200Kg	3500kg	4800kg
