Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Turning Machine Frame CK30L

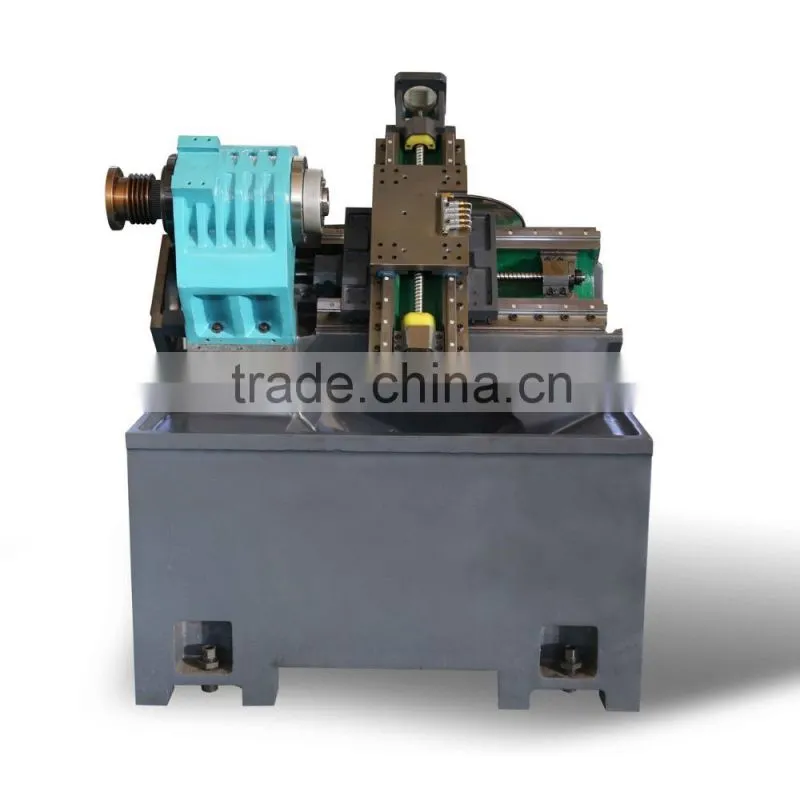

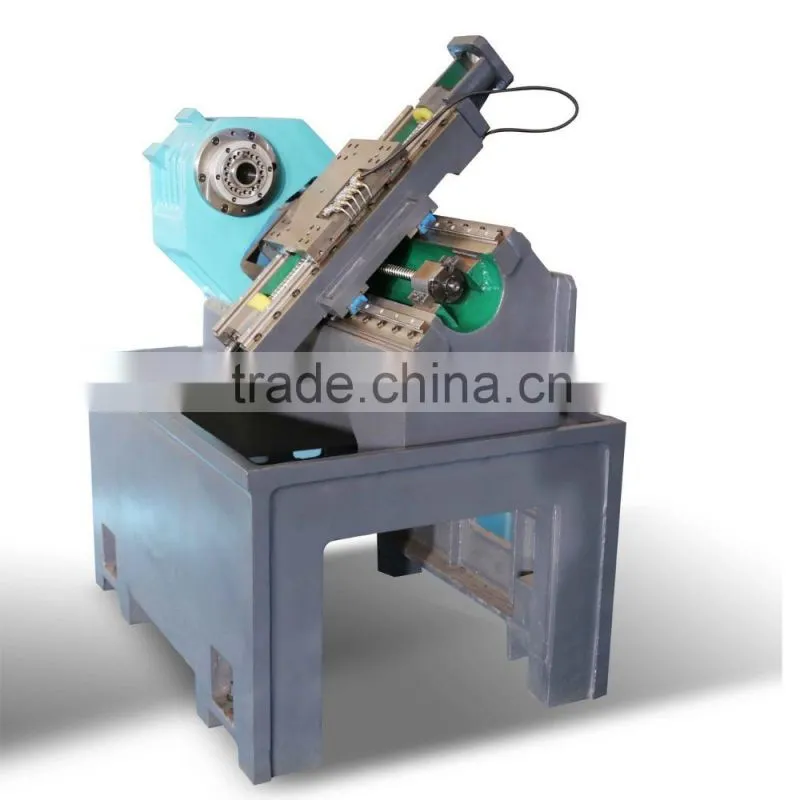

Turning Machine Frame CK30L

Name: Turning Machine Frame CK30L
Brand: SMARTECH
SKU: 123973665
Availability: InStock

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 300 mm

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number T30L CK30L

Voltage 380V

Power(W) 3.7-5.5 kw (main motor)

Dimension(L*W*H) 1080*807*1378mm

Weight 1250 kg

Certification ISO

After-sales Service Provided Overseas third-party support available

TCK0632 and TCK0642

X, Z axes are of linear guide rail, without chuck, tool post, motors, electrical cabinet, and enclosure.

Standard accessories:

1) Resin sand casting

2) Ball screw

3) Linear guideways

4) Continuously variable cartridge spindle

5) Belt and its pulley

6) Couplings of X, Z axes

7) Bearing of lead screw: NSK

8) Lubrication system;

9) Painting: either standard or customized

10) Packing: Wooden pallet + Antirust protection + Moisture-proof protection

Option list (not included in the price I gave to you):

1) Hydraulic chuck

2) Collect chuck and rotary cylinder

3) Protection of guide rail

4) Hydraulic station

5) Machine guards

SPECS:

Model Items	TCK0632	TCK0642
Structure	45º Slant-bed	45º Slant-bed
Max. Sewing Over Bed	Φ360
Max. Turning Over Bed	Φ360
Max. Sewing Over Tool Turret	Φ120
Spindle Nose Spec.	A2-4	A2-5
Chuck Recommended	(5") 127 mm	(6") 152.4 mm
Spindle Motor Recommended	3.7-5.5 KW	5.5 KW
Spindle Speed	6000rpm	6000rpm
Spindle Bore Diameter	Φ46	Φ56
Bar Capacity	Φ32	Φ42
X/Z axis Ball Screw	2510/2510
X Axis Travel	350
Z Axis Travel	290
Linear guideways	30/30 (width)
X/Z motor recommended	7/7 Nm
Center Height of Tool Turret	63 mm
Dimension	1080×807×1378mm
Net Weight	1250kg
