Specifications
Best quality with reasonable price !Supply both whole machine and frame (without any controller, motors and drives)
Frames of CNC Engraving Machine
1. Specification of Frame
| E600B | E650 | E750 | |
| Worktable Size | 500×600 | 660×520 | 600×800 |
| X axis (Left to Right of Spindle) | 500 | 520 | 600 |
| Y axis | 600 | 600 | 750 |
| Z axis (Up to Down of Spindle) | 300 | 300 | 320 |
| Spindle Spec. (Installing Size- Max. Speed) | Ø125-24000 | Ø125-24000 | Ø125-24000 |
| Spindle Motor Recommended (kw) | 5.5 | 4.5 | 5.5 |
| Distance between Columns | 560 | 580 | 670 |
| Slide Board to Worktable Surface | 90-390 | 140-440 | 150-470 |
| T-solt (number-size×distance) | 5-14×100 | 5-14×100 | 3-12*175 |
| X Axis Ball Screw Spec. | 3205 | 3206 | 3208 |
| Y Axis Ball Screw Spec. | 3205 | 3206 | 3208 |
| Z Axis Ball Screw Spec. | 3205 | 3206 | 3208 |
| X Axis Linear Guideway Spec. | HGH30HA | HGH30HA | HGH30HA |
| Y Axis Linear Guideway Spec. | HGH30HA | HGH30HA | HGH30HA |
| Z Axis Linear Guideway Spec. | HGH30HA | HGH30HA | HGH30HA |
| Motor Connection of X/Y/Z Axis | Direct | Direct | Direct |
| X/Y/Z Axes Motors Recommended (NM) | 6, 8, 6 | 6, 8, 8 | 6, 8, 6 |
| Max. Load on Worktable | 500Kg | 500Kg | 500Kg |
| Net Weight of Machine | 2.2t | 2.5t | 2.5t |
| Remarks | Beam-fixed | Beam-fixed | Beam-fixed |

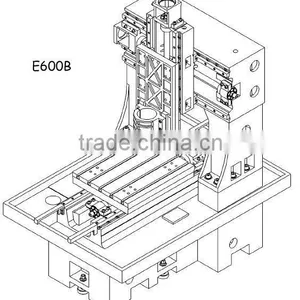

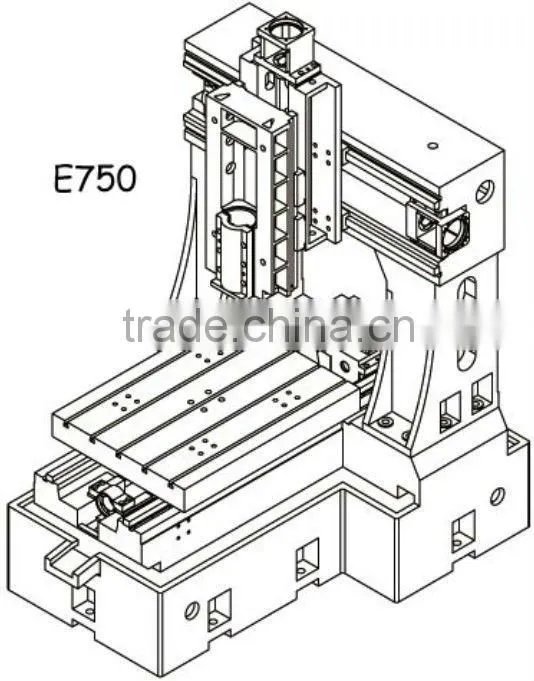

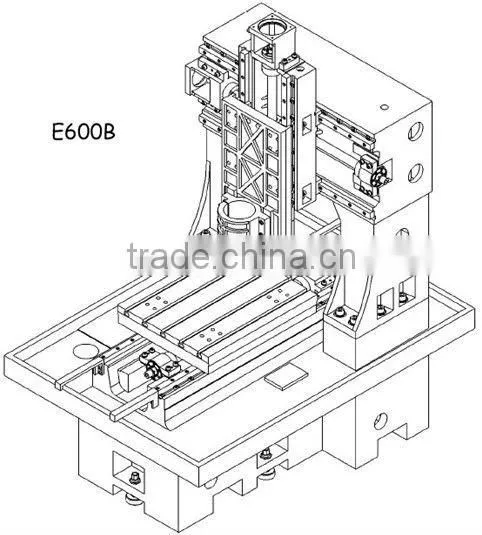

2. Drawings
3. Standard Components:
1) High-class casting processed by resin sand and wood mould;
2) Imported X/Y/Z Ball screw (HWIN, PMI, IF or REXROTH);
3) Imported linear guide way=IF, INA or REXROTH;
4) NSK, FAG or NTN Bearings for screw;
5) R+W coupling;
6) Counter balance system for spindle box;
7) Painting of customized color;
8) Telescopic protection for X/Y axes;
9) NIKKA centralized lubrication system;
10) Leveling bolts and pads;
11) Pipes of cooling water;
12) Tools (spanner, screw driver and so on) and tool box.
4. Optional Components:
1) Electronic spindle (motor spindle);
2) Automatic tool changer (ATC);
3) Machining seats for linear encoders and automatic tool changer.
For more details and other optional accessories , please contact us !
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Accessories ( Complete machine )
Machine Bed |
Resin Mould High-class casting |
|
Ball screw |
Taiwanese brandDouble nut pre-tensile |
|
Bearings for ball screw |
NSK |
|
Coupling |
Germany brand |
|
Spindle |
High precision electrical spindle |
24000rpm |
Coolant |
Oil cooling |
|
Central lubrication system |
Taiwanese brand |
|
Coolant system |
Large flow liquid and air coolant system |
|
Guide way protection |
Protection cover for X and Y axis |
|
Guarding |
Full closed |
|
CNC controller |
SYNTEC 940 or GSK 218M |
|
Pulse generator (Handwheel) |
Taiwanese brand |
|
Travel limit switch |
Taiwanese brand |
|
Communication interface |
RS232 (USB for GSK218M) |
|
