Engraving Machine

Name: Engraving Machine
Brand: SMARTECH, Smartech or OEM
SKU: 123973717
Availability: InStock

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

SMARTECH, Smartech or OEM

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name SMARTECH, Smartech or OEM

Model Number 600A, SE-600A

Rated Power 3.2 kw, 5 KW

Engraving Speed 15 m/min, 15000 mm/min

Main Axle Rotational Speed 18000 rpm

Feeding Height 560

Application 400*560*320

Dimensions 1900*1700*2100

Weight 4000

Certification CE ISO

Warranty one year

Specifications

Top quality with reasonable price !
Supply both complete machine and frame (without any controller, motors and drives, etc)

Frames of CNC Engraving Machine

1. Specification of Frame

Grantry-type Engraving Machine
	E5040	E5050	E600A
Worktable Size	480×590	500×700	500×700
X axis (Left to Right of Spindle)	500	500	500
Y axis	400	500	600
Z axis (Up to Down of Spindle)	200	250	320
Spindle Spec. (Installing Size- Max. Speed)	Ø110-24000	Ø110-24000 rpm	Ø125-24000 rpm
Spindle Motor Recommended (kw)	4.5	4.5	5.5
Distance between Columns	590	760	550
Slide Board to Worktable Surface	120-360	140-390	140-460
T-solt (number-size×distance)	3-18×135	5-12×85	3-12×175
X Axis Ball Screw Spec.	3208	3212	3208
Y Axis Ball Screw Spec.	3208	3212	3208
Z Axis Ball Screw Spec.	3208	3212	3208
X Axis Linear Guideway Spec.	HGH30HA	HGH30HA	HGH30HA
Y Axis Linear Guideway Spec.	HGH30HA	HGH30HA	HGH30HA
Z Axis Linear Guideway Spec.	HGH30HA	HGH30HA	HGH30HA
Motor Connection of X/Y/Z Axis	Direct	Direct	Direct
X/Y/Z Axes Motors Recommended (NM)	6, 8, 6	6, 8, 6	6, 8, 6
Max. Load on Worktable	300Kg	300Kg	500Kg
Net Weight of Machine	2.5t	2.5t	2.5t
Remarks	Beam-fixed	Beam-fixed	Beam-fixed

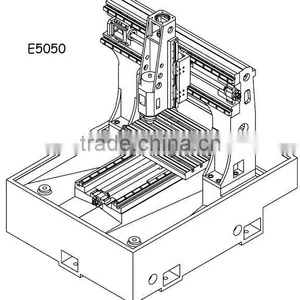

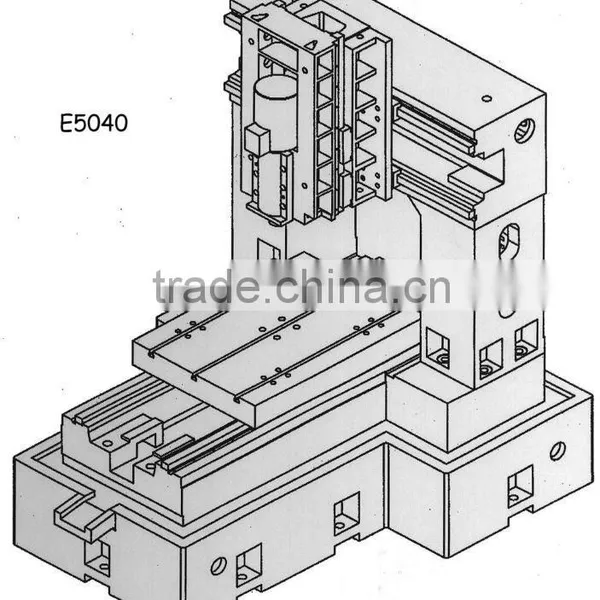

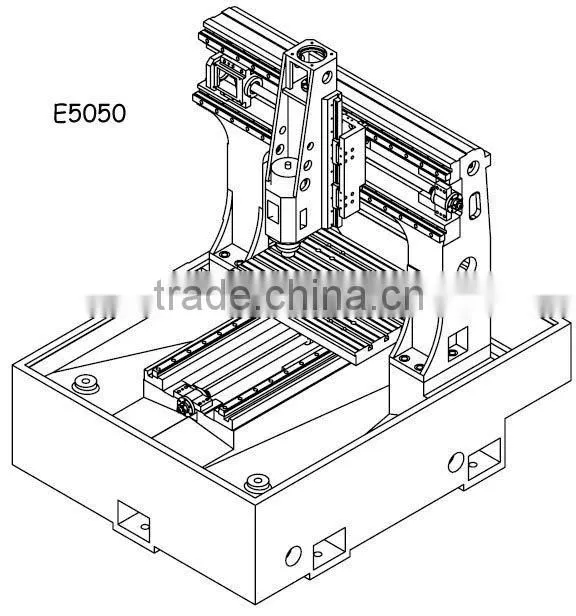

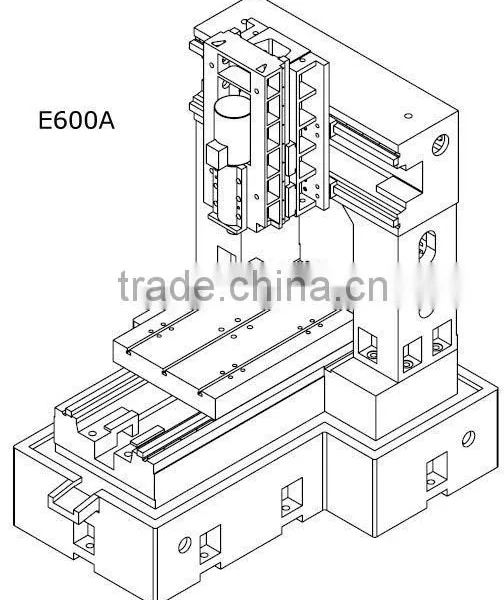

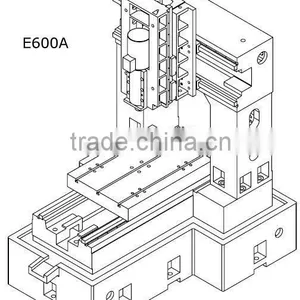

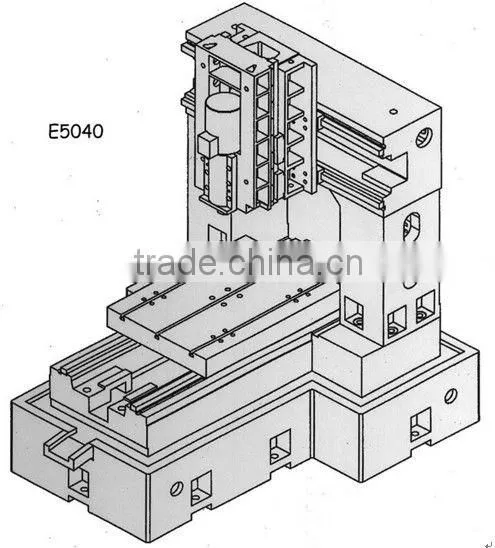

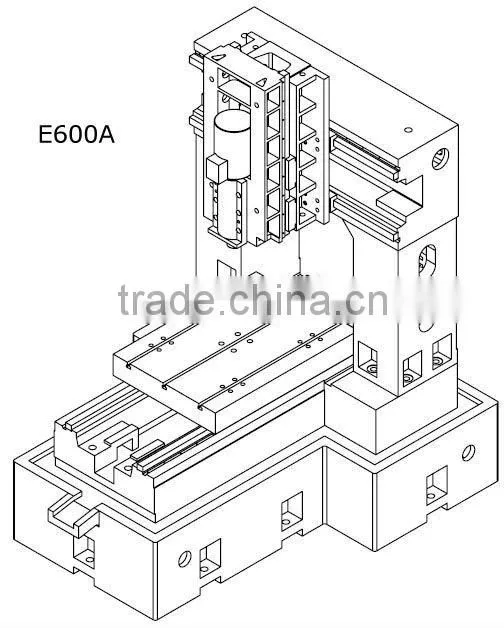

2. Drawings

For more details and other optional accessories , please contact us !

Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)

Accessories ( Complete machine )

Machine Bed		Resin Mould High-class casting
Ball screw		Taiwanese brandDouble nut pre-tensile
Bearings for ball screw		NSK
Coupling		Germany brand
Spindle	High precision electrical spindle	24000rpm
	Coolant	Oil cooling
Central lubrication system		Taiwanese brand
Coolant system		Large flow liquid and air coolant system
Guide way protection		Protection cover for X and Y axis
Guarding		Full closed
CNC controller		SYNTEC 940 or GSK 218M
Pulse generator (Handwheel)		Taiwanese brand
Travel limit switch		Taiwanese brand
Communication interface		RS232 (USB for GSK218M)
