Specifications
Best quality with reasonable price !Supply either whole machine or frame (without any controller, motors and drives)

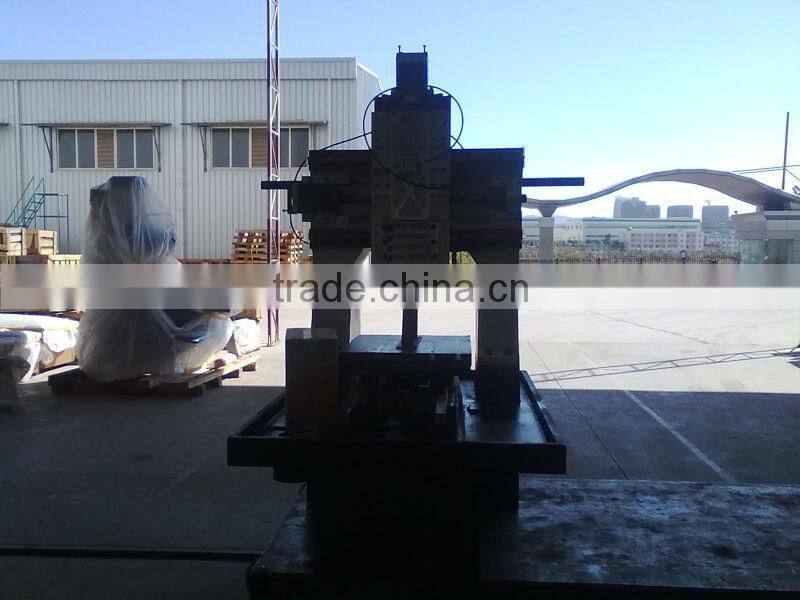

Frames of CNC Engraving Machine
1. Specification of Frame
E6070 |
E7080 |
E80100 |
|
Worktable Size |
690×720 |
720×860 |
820×1020 |
X axis (Left to Right of Spindle) |
700 |
720 |
820 |
Y axis |
600 |
800 |
1000 |
Z axis (Up to Down of Spindle) |
280 |
350 |
350 |
Spindle Spec. (Installing Size- Max. Speed) |
Ø125-24000 |
Ø125-24000 |
Ø125-24000 |
Spindle Motor Recommended (kw) |
5.5 |
5.5 |
7.5 |
Distance between Columns |
780 |
800 |
900 |
Slide Board to Worktable Surface |
170-485 |
100-450 |
140-390 |
T-solt (number-size×distance) |
5-18×120 |
5-18×160 |
5-18×160 |
X Axis Ball Screw Spec. |
3208 |
3208 |
3208 |
Y Axis Ball Screw Spec. |
3208 |
3208 |
3208 |
Z Axis Ball Screw Spec. |
3208 |
3208 |
3208 |
X Axis Linear Guideway Spec. |
HGH30HA |
HGH35HA |
HGH35HA |
Y Axis Linear Guideway Spec. |
HGH30HA |
HGH35HA |
HGH35HA |
Z Axis Linear Guideway Spec. |
HGH30HA |
HGH35HA |
HGH35HA |
Motor Connection of X/Y/Z Axis |
Direct |
Direct |
Direct |
X/Y/Z Axes Motors Recommended (NM) |
6, 8, 6 |
8, 10, 10 |
10, 12, 12 |
Max. Load on Worktable |
500Kg |
800Kg |
900Kg |
Net Weight of Machine |
2.5t |
4t |
4.8t |
Remarks |
Beam-fixed |
Beam-fixed |
Beam-fixed |

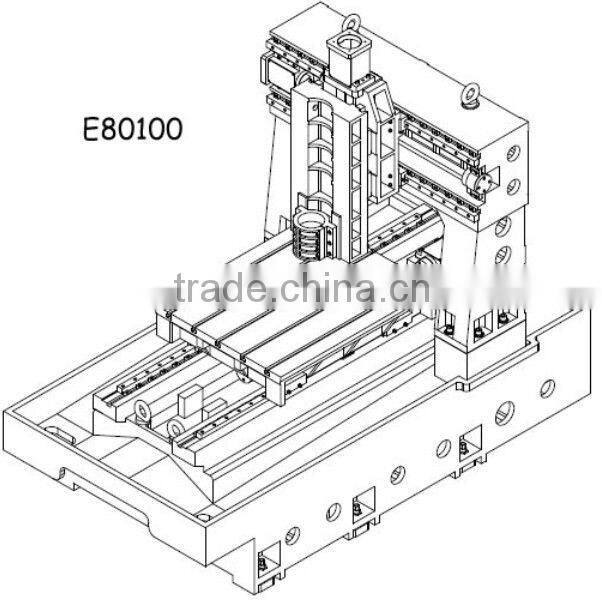

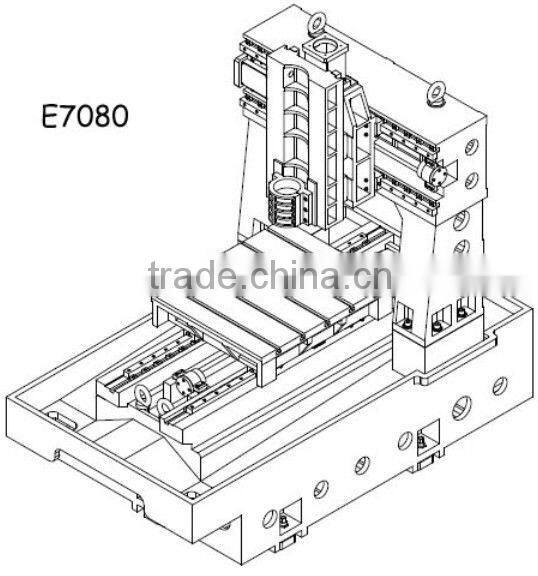

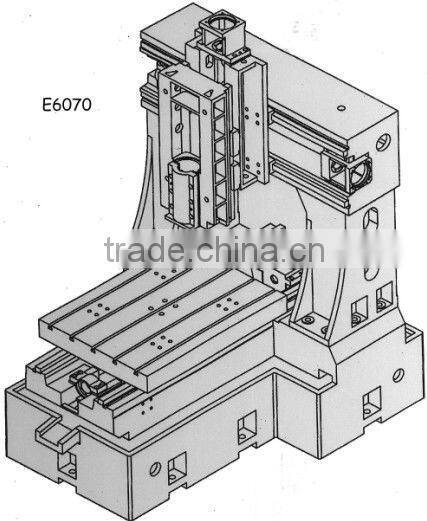

2. Drawings
3. Standard Components:
1) High-class casting processed by resin sand and wood mould;
2) Imported X/Y/Z Ball screw (HWIN, PMI, IF or REXROTH);
3) Imported linear guide way=IF, INA or REXROTH;
4) NSK, FAG or NTN Bearings for screw;
5) R+W coupling;
6) Counter balance system for spindle box;
7) Painting of customized color;
8) Telescopic protection for X/Y axes;
9) NIKKA centralized lubrication system;
10) Leveling bolts and pads;
11) Pipes of cooling water;
12) Tools (spanner, screw driver and so on) and tool box.
4. Optional Components:
1) Electronic spindle (motor spindle);
2) Automatic tool changer (ATC);
3) Machining seats for linear encoders and automatic tool changer.
For more details and other optional accessories , please contact us !

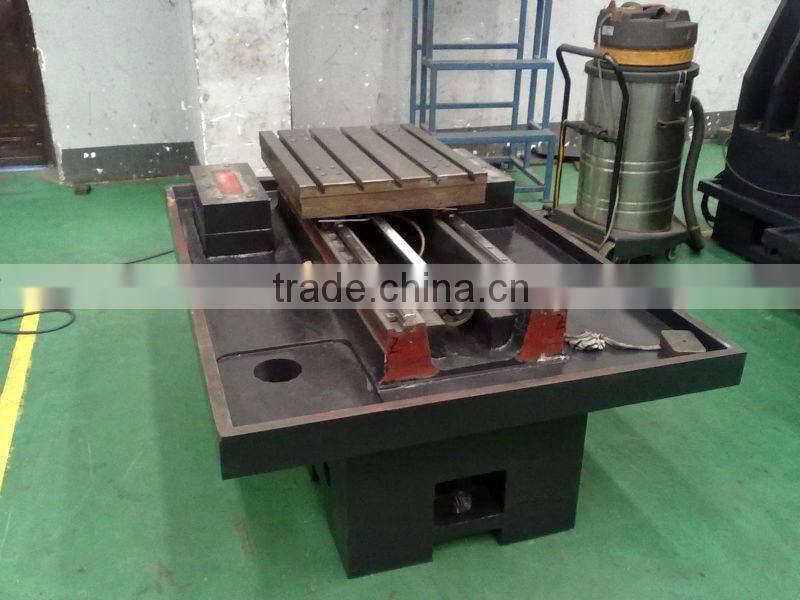

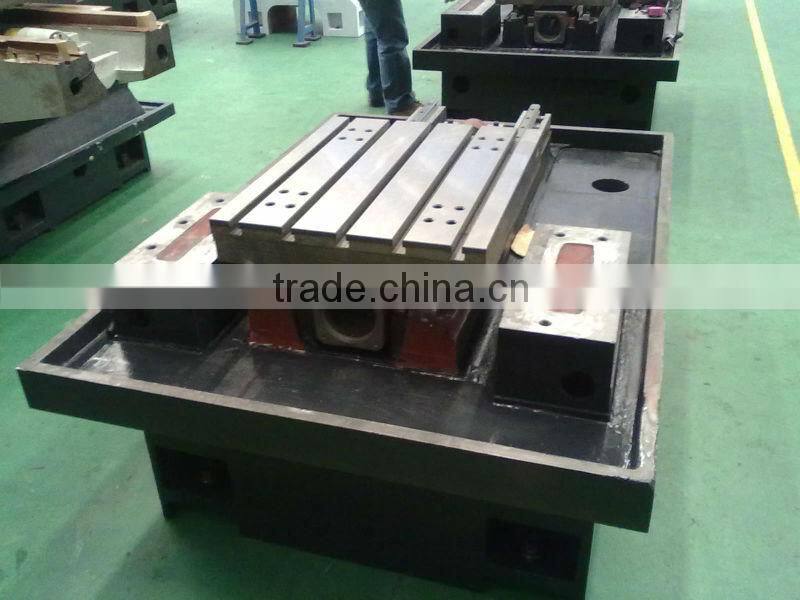

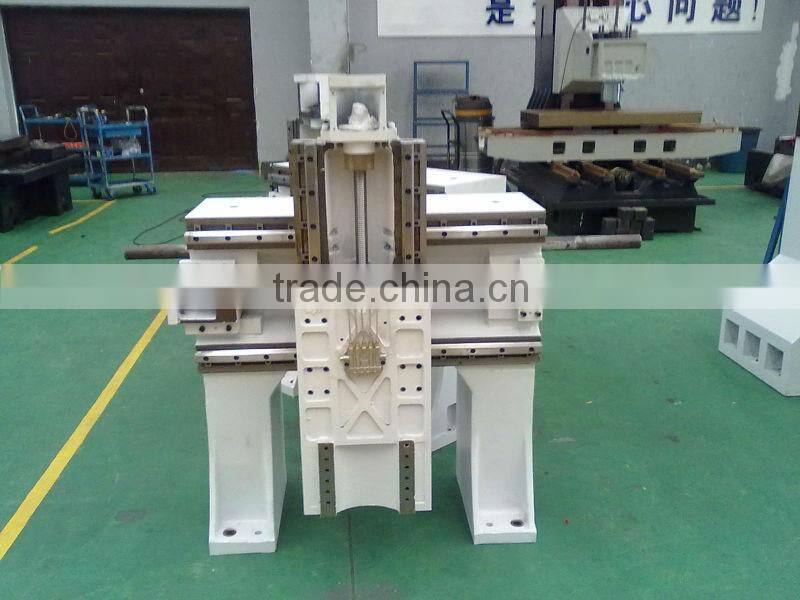

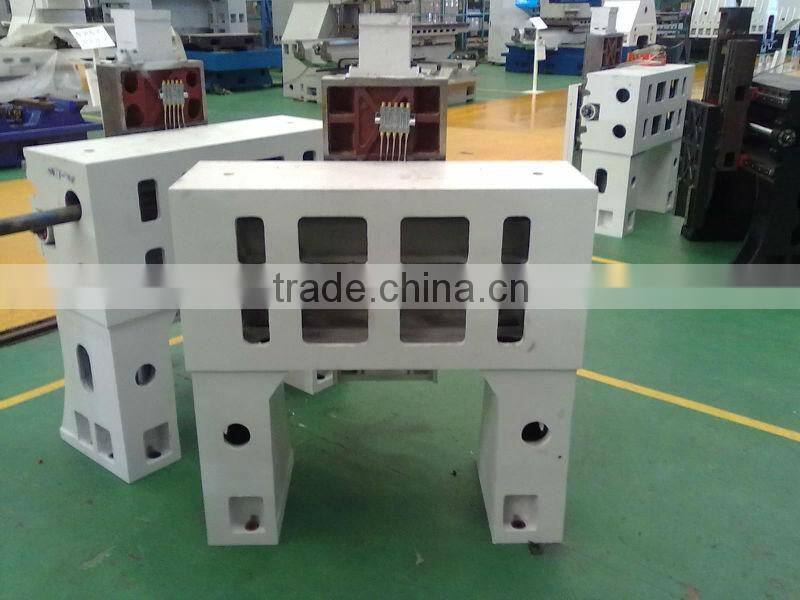

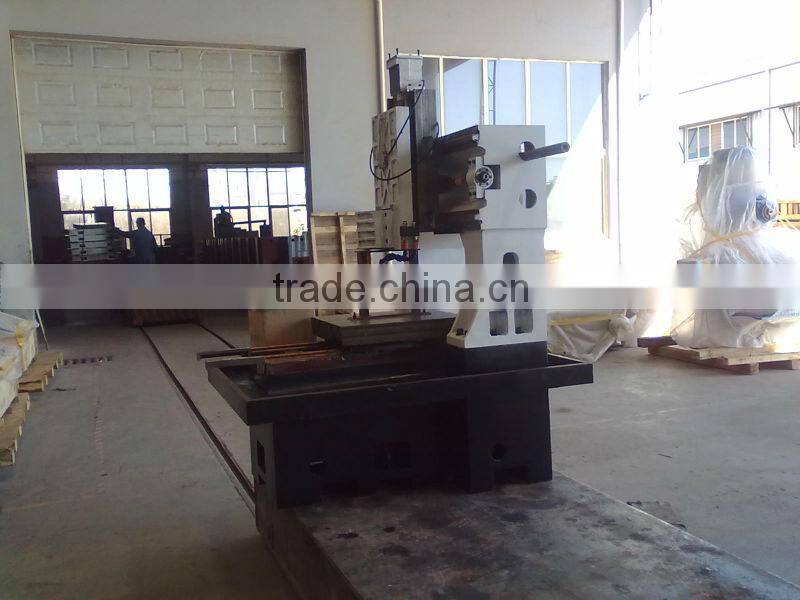

Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
Accessories ( Complete machine )
Machine Bed |
Resin Mould High-class casting |
|
Ball screw |
Taiwanese brandDouble nut pre-tensile |
|
Bearings for ball screw |
NSK |
|
Coupling |
Germany brand |
|
Spindle |
High precision electrical spindle |
24000rpm |
Coolant |
Oil cooling |
|
Central lubrication system |
Taiwanese brand |
|
Coolant system |
Large flow liquid and air coolant system |
|
Guide way protection |
Protection cover for X and Y axis |
|
Guarding |
Full closed |
|
CNC controller |
SYNTEC 940 or GSK 218M |
|
Pulse generator (Handwheel) |
Taiwanese brand |
|
Travel limit switch |
Taiwanese brand |
|
Communication interface |
RS232 (USB for GSK218M) |
|
