Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Turning Machine CK-45L

Turning Machine CK-45L

Name: Turning Machine CK-45L
Brand: SMARTECH
SKU: 123973559
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Max. Swing Diameter 450 mm

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number CK45H / 45L

Voltage 380V

Power(W) 15 kw (main spindle)

Dimension(L*W*H) 2460*1320*1370 mm

Weight 2400 kg

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

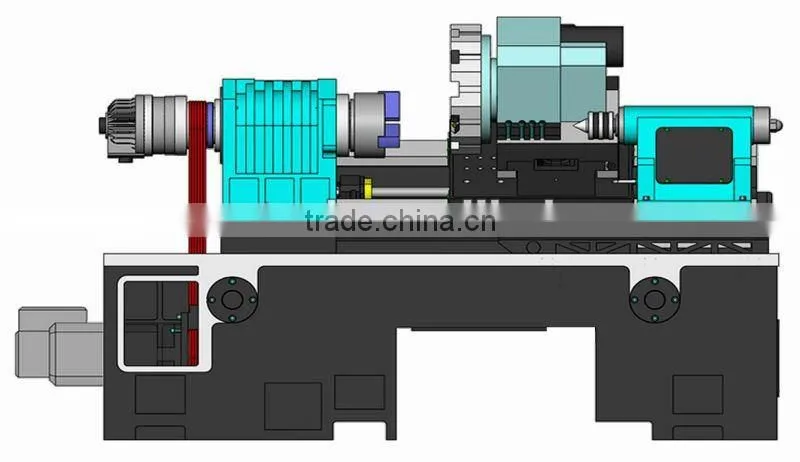

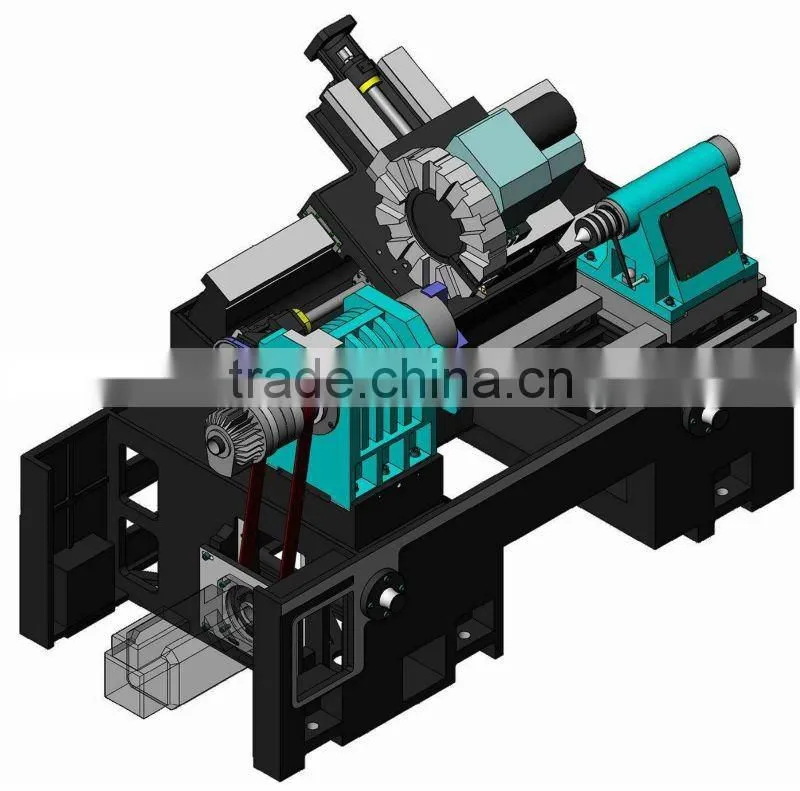

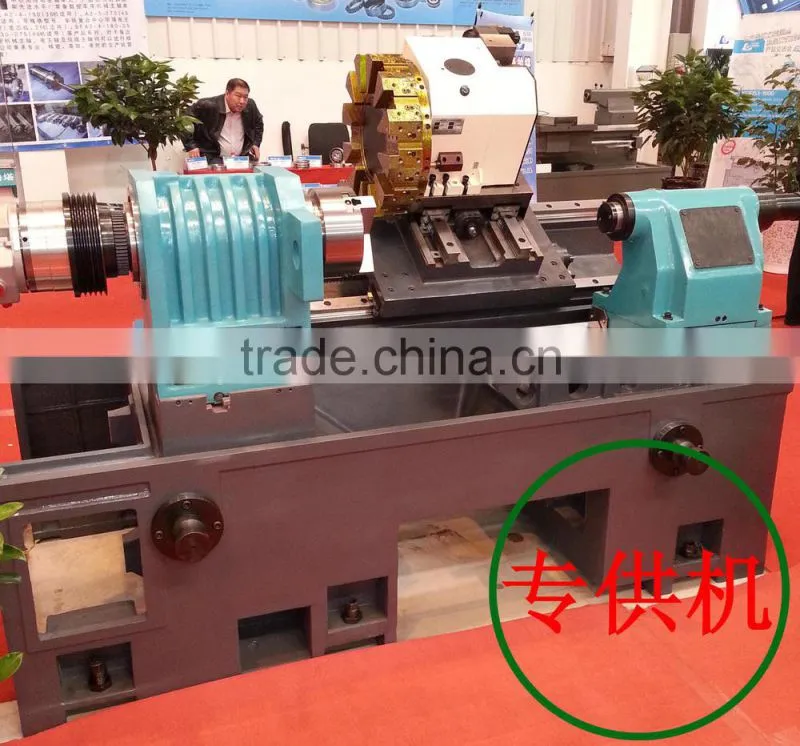

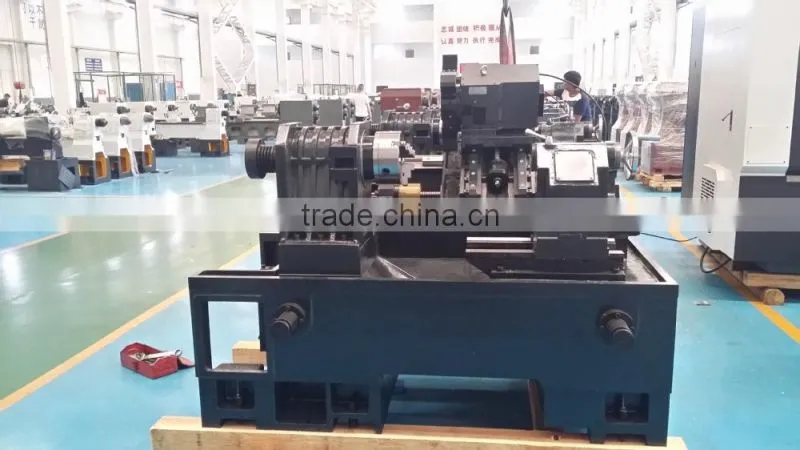

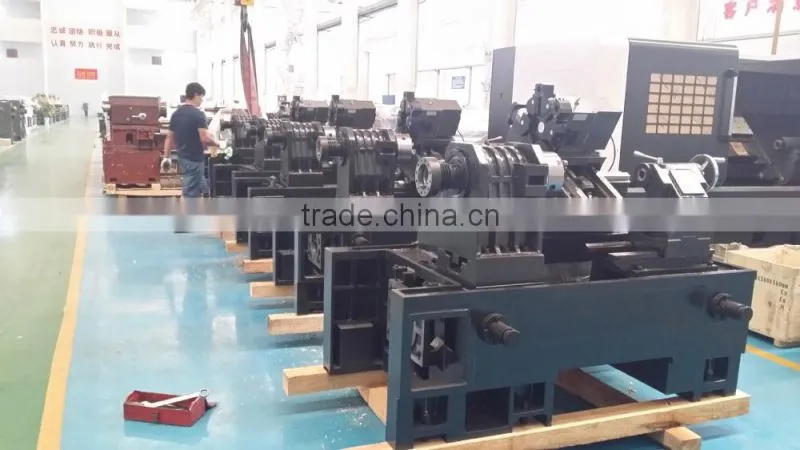

Frame of Turning Center CK-45L CK-45H

X, Z axes are of linear guide rail, without chuck, tool post, motors, electrical cabinet, and enclosure.

Standard accessories:

1) Resin sand casting

2) Ball screw made in Taiwan

3) Imported linear rail

4) Continuously variable cartridge spindle made in Taiwan

5) Belt and its pulley

6) Couplings of X, Z axes

7) Bearing of lead screw: NSK/NTN

8) Lubrication system: HERG

9) Painting: either standard or customized

10) Packing: Wooden pallet + Antirust protection + Moisture-proof protection

Option list (not included in the price I gave to you):

1) Hydraulic power chuck made in Taiwan (Strong or CH-H)

2) Collect chuck and rotary cylinder

3) Protection of guide rail

4) Hydraulic tool turret

5) Hydraulic station

6) Machine guards

SPECS:

MODEL	CK45H	CK45L
Max turning diameter over bed	Φ600	Φ600
Max turning diameter over tool post	Φ400	Φ400
Max turning length	450	450
Max cutting length	500	500
Spindle nose spec.	A2-6	A2-6
Chuck	8”	8”
Spindle Motor (recommended)	11/15kw	11/15kw
Spindle Speed (recommended)	45-4200rpm	45-4200rpm
Spindle bore Dia.	Φ66	Φ66
Bar capacity	Φ52	Φ52
Spindle bearing Dia.	Φ100	Φ100
Spindle bore tapper	1:20	1:20
X axis travel	225+25	225+25
Z axis travel	610	610
Servo motor power (recommended)	1.8(X) / 3(Z)	1.8(X) / 3(Z)
Ball screw X/Z	GQ 3210/4010	GQ 3210/4010
Box way X/Z	--	35/35
Center height (Option)	100	100
Stations (option)	12	12
O.D. Tool size (Option)	25	25
I.D. Tool size (Option)	Φ40	Φ40
Dia. Of Tailstock Quill	Φ75	Φ75
Travel of Quill	100	100
Tapper of Quill	MT-4	MT-4
Moving of Quill	Hydraulic	Hydraulic
Moving of tailstock	Manual	Manual
Dimension	246013201370 mm	246013201370 mm
Weight of Frame	2400 kg	2400 kg
