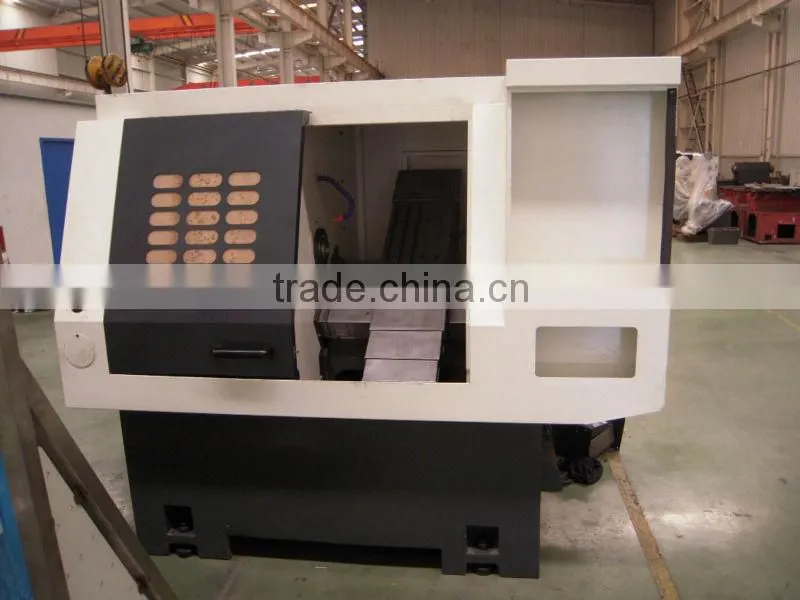

Help CenterCNC Turning Machine CK-36L
Related Products
Specifications
1 high-class quality;2 competitive price;
3 high machining precision;
4 short delivery time;

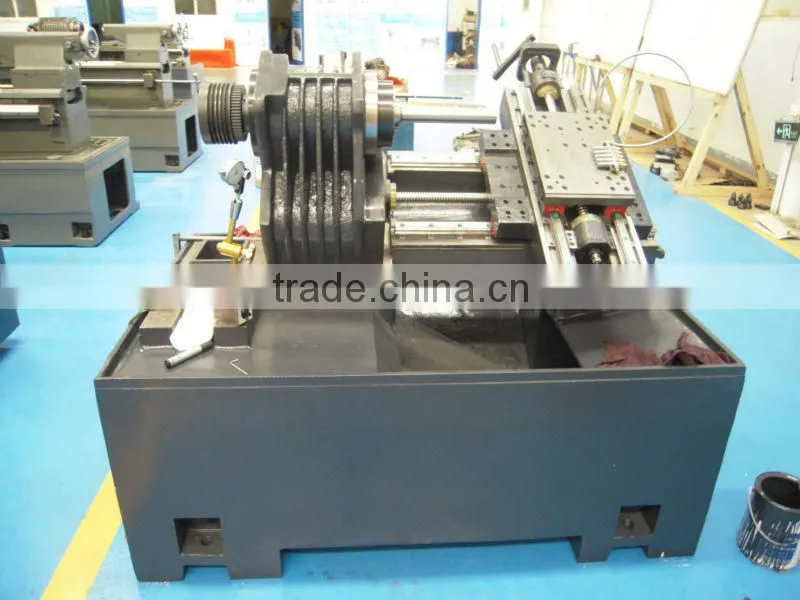

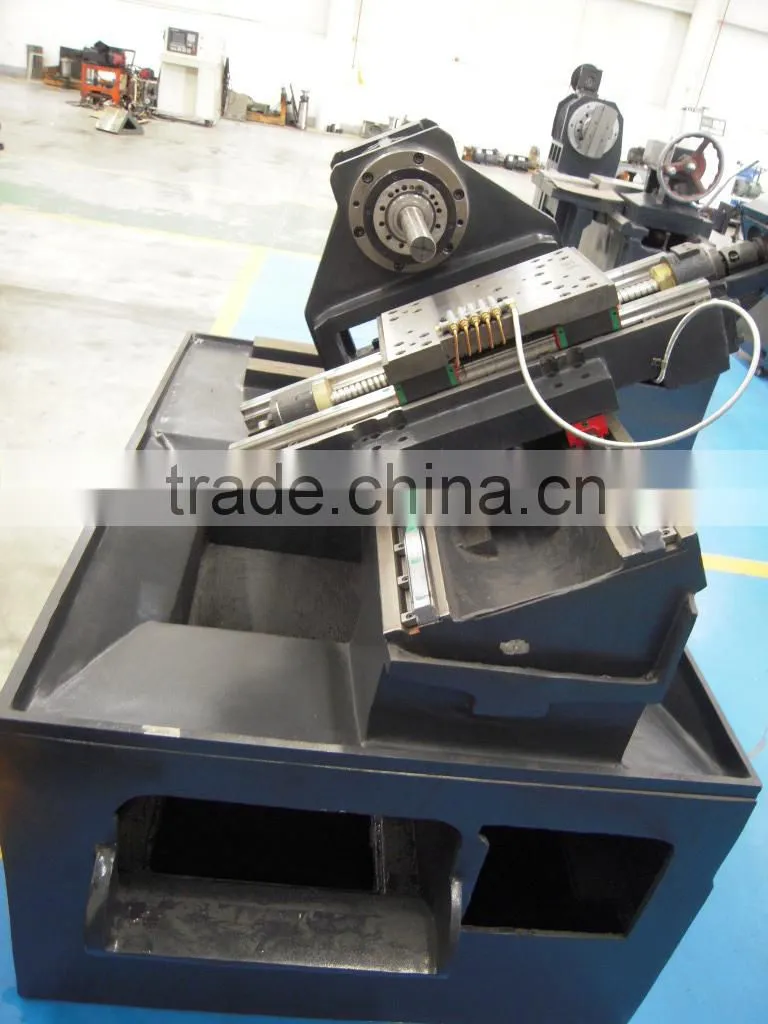

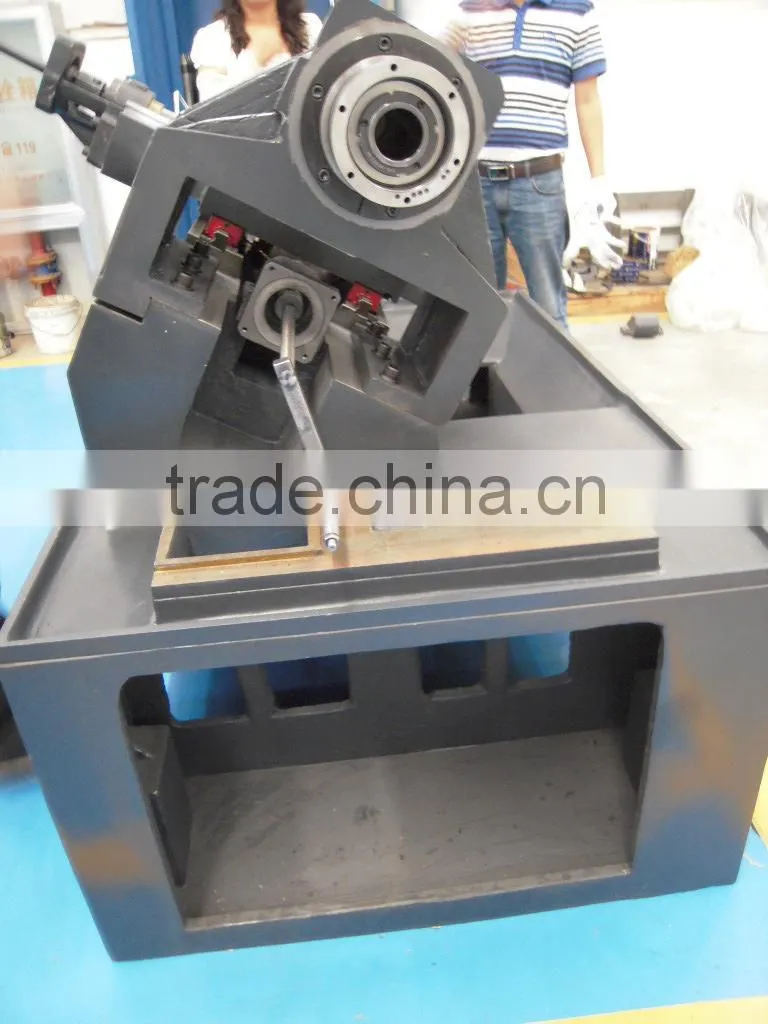

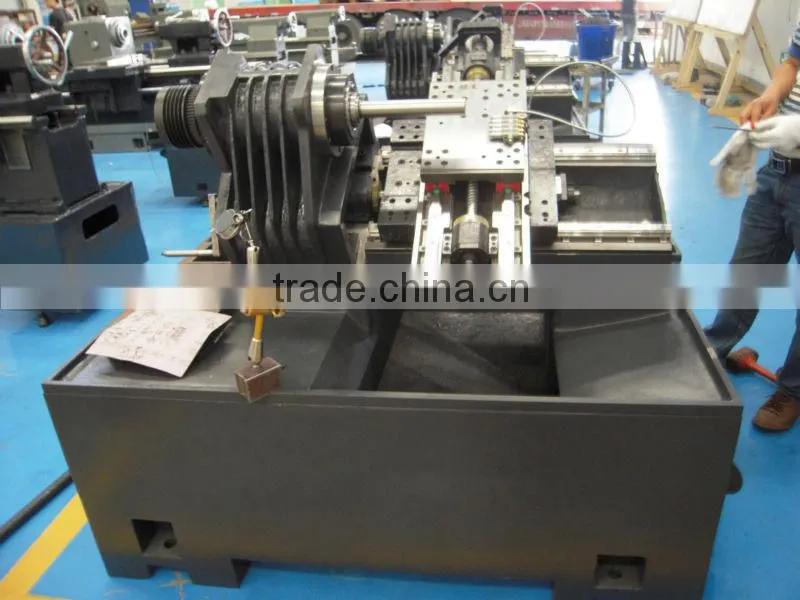

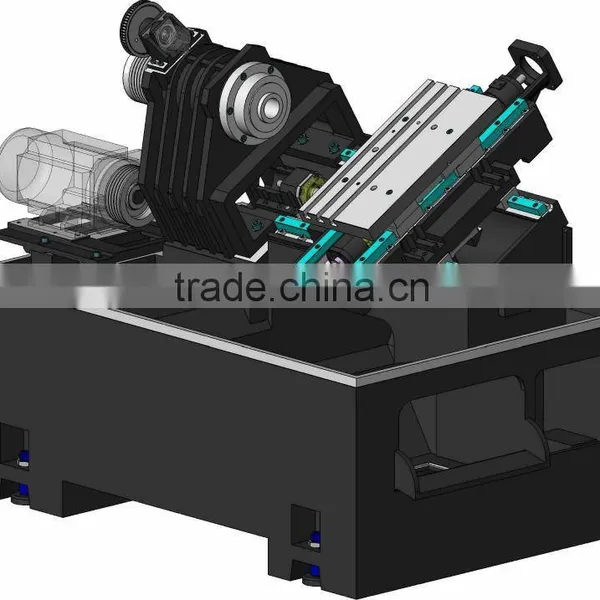

Frame of CK-36L
X, Z axes are of linear guide rail, without chuck, tool post, motors, electrical cabinet, and enclosure.
Standard accessories:
1) Resin sand casting
2) Ball screw made in Taiwan
3) Imported linear rail
4) Continuously variable cartridge spindle made in Taiwan
5) Belt and its pulley
6) Couplings of X, Z axes
7) Bearing of lead screw: NSK/NTN
8) Lubrication system: HERG
9) Painting: either standard or customized
10) Packing: Wooden pallet + Antirust protection + Moisture-proof protection
Option list (not included in the price I gave to you):
1) Hydraulic power chuck made in Taiwan (Strong or CH-H)
2) Collect chuck and rotary cylinder
3) Protection of guide rail
4) Hydraulic tool turret
5) Hydraulic station
6) Machine guards
- SPECS:
Max. Swing Over Bed |
360 |
Max. Tutting Dia. |
360 |
Swing Over Cross Slide |
120 |
Max. Cutting Length |
290 |
Spindle Nose |
A2-5 |
Optional Chuck |
6” |
Ball Screw of X/Z Axis |
3208/3206 (3208) |
Linear Guide of X/Z Axis |
30/30 |
X Axis Travel |
400 |
Z Axis Travel |
300 |
Size of Gang tool Slide |
540*270 |
Center Height of Turret (Optional) |
63 |
Slant Angle |
30° |
Dimension of Frame |
1500*1086*1316 |
Net Weight (kg) |
1600 |
Features of TK-36L

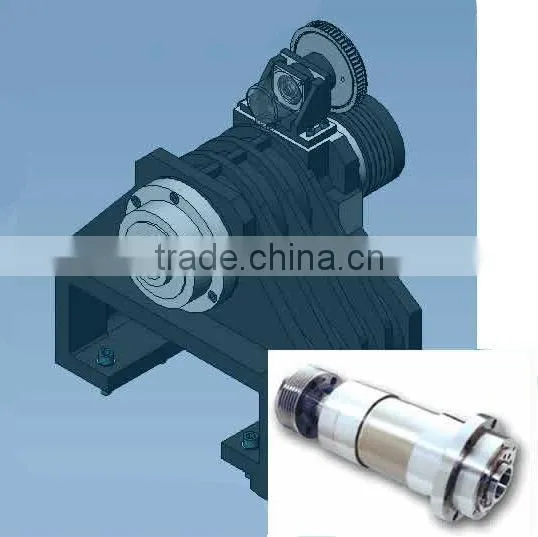

1) Spindle
Precision Taiwanese Spindle
Highest speed: 6000 rpm
Optional motor: 5.5/ 7.5 KW
Spindle bore dia.: 55 mm
Bar capacity: 45 mm

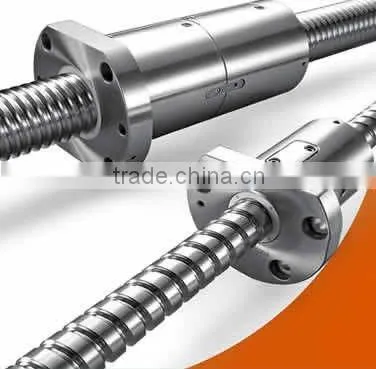

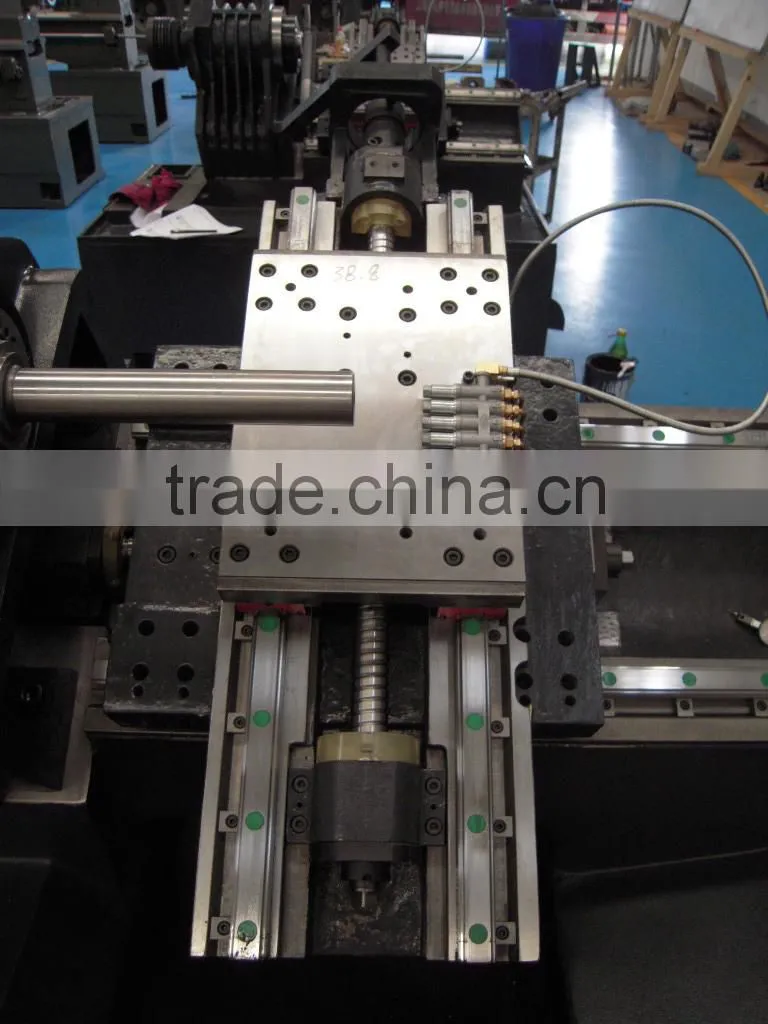

1) Ball screw and linear guide
HIWIN or PIM (Taiwanese brand) ball screw
Taiwan YINSH lock nut & NSK or NTN bearing

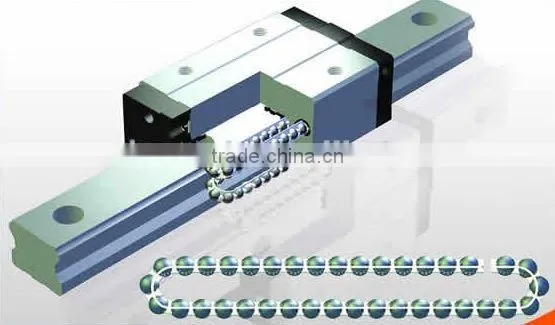

German brand linear guide
Machining Equipments Imported from Nicolas Correa Spain
A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
ISO Certificate
