Help CenterHorizontal Machining Center HMC-63BL
Related Products
Specifications
1 high-class quality;2 competitive price;
3 high machining precision;
4 short delivery time.

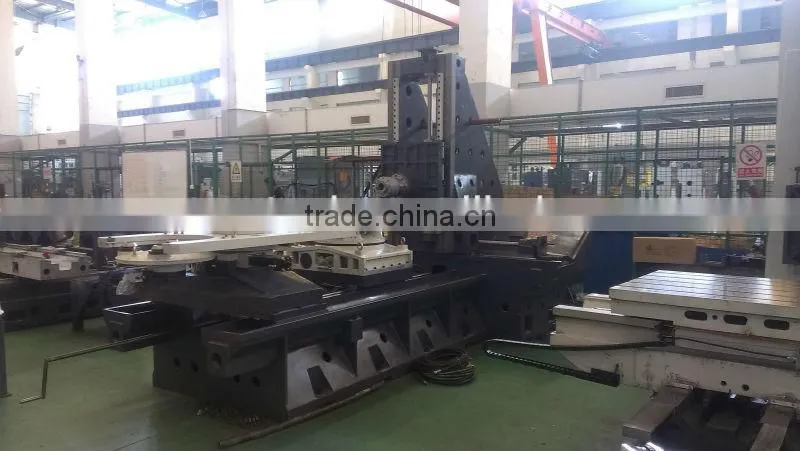

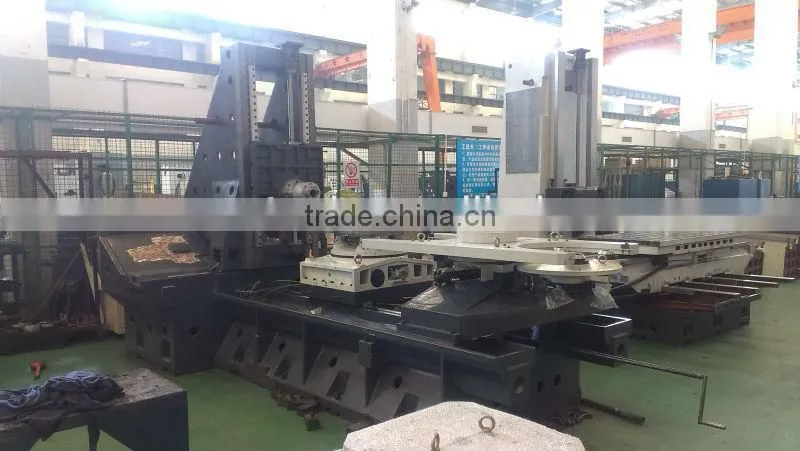

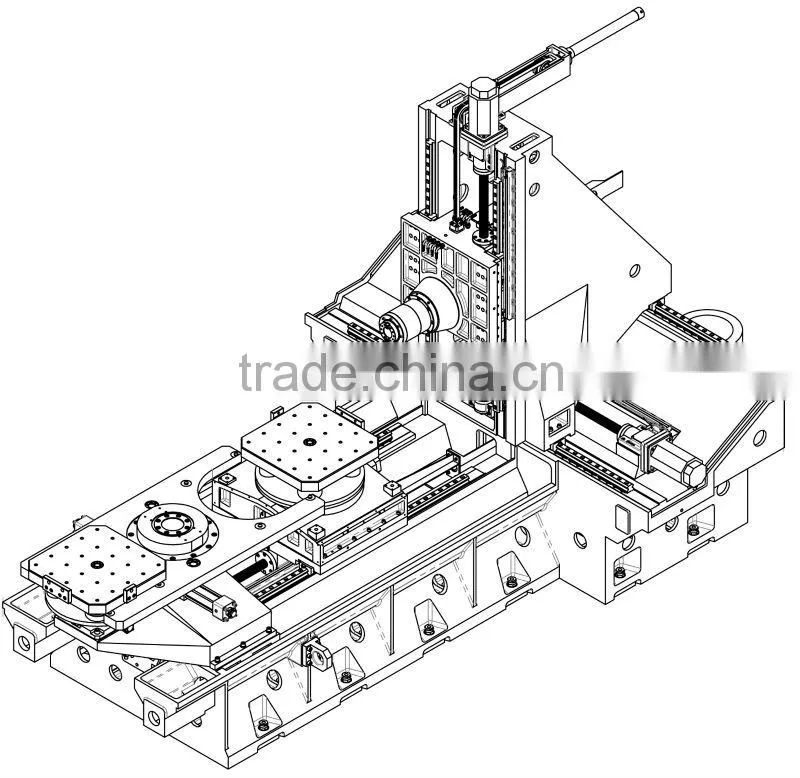

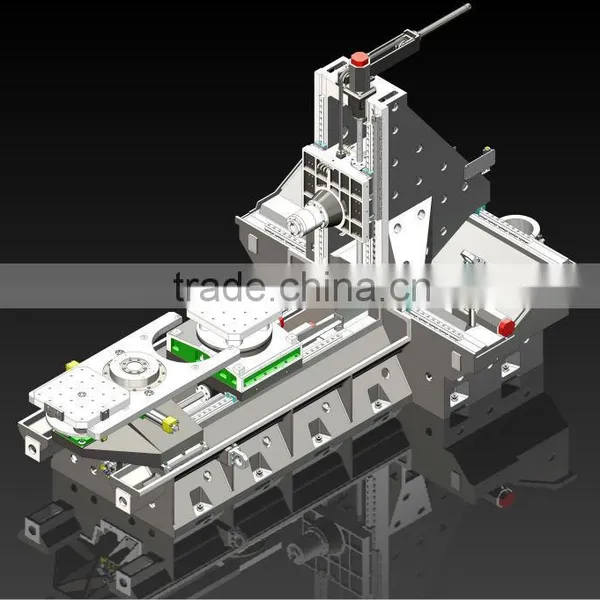

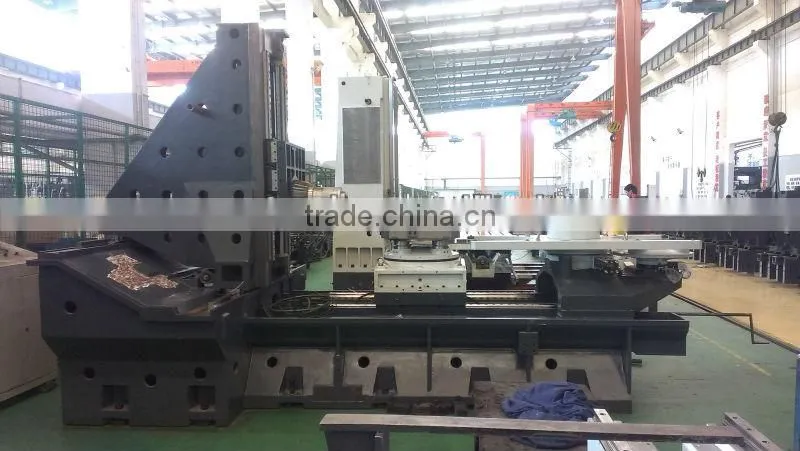

SMARTECH CNC HMC FRAME
Standard Components of Frame:
1) High-class casting processed with resin sand wooden mould;
2) Imported ball screw=HIWIN or PMI;
3) Imported roller linear slideways = INA;
4) Imported complete spindle= Taida (Taiwan);
5) Imported bearings for screw=NSK;
6) Imported coupling=R+W;
7) Rotary work tables (Yantai made in Mainland or Detron made in Taiwan);
8) Customized Paint;
9) Lubrication system ;
10) Leveling bolts and pads ;
11) Tools (spanner , screw driver and so on ) and tool box ;
12)Protections for X/Y/Z axes;
13)Hydraulic-cushion system for spindle box;
14)Hydraulic station for work table;
REMARKS:
This is the HMC machine frame, not including X/Y/Z servo motors and drivers, controller and other electrical parts.
| Model | HMC-63BL |
| Optional Frame 1 | Frame with Yantai (Mainland) worktables |
| Optional Frame 2 | Frame with Detron (Taiwan) worktables |
| Optional Components | Heidenhain Encoder |
| ZF or BF reducer | |
| Coolant through spindle | |
| Automatic Tool Changer | |
| (Bei Jyu, Hydraulic holding, 60-tool) | |
| Full Guarding (without chip conveyer) |
Specification |
HMC-63BL |
|
Table Size |
630x630 |
|
Unit of indexing |
Continuously |
|
Travel |
X |
1050 |
Y |
900 |
|
Z |
1050 |
|
Spindle nose to table center |
0-900 |
|
Spindle center to table surface |
110-1160 |
|
Specification of worktable |
24-M16 threaded hole (125*125) |
|
Spindle Taper/outside dia |
BT50/190 |
|
Spindle Speed |
6000rpm |
|
X axis Ball Screw Spec. |
50&12 |
|
Y axis Ball Screw Spec. |
50&12 |
|
Z axis Ball Screw Spec. |
50&12 |
|
X Roller slideways Spec. |
INA RUE55 |
|
Y Roller slideways Spec. |
INA RUE55 |
|
Z Roller slideways Spec. |
INA RUE55 |
|
X,Y&Z Motor Connnection |
Direct |
|
Spindle motor recommended |
15-18.5 kw |
|
Drive motors recommended X/Y/Z |
X: 26 Y:20 (brake) Z: 22Nm |
|
Table Work Load |
800*2 Kg |
|
Net Weight |
12000 Kg |
|
Specification |
HMC-63BL |
|
Table Size |
630x630 |
|
Unit of indexing |
Continuously |
|
Travel |
X |
1050 |
Y |
900 |
|
Z |
1050 |
|
Spindle nose to table center |
0-900 |
|
Spindle center to table surface |
110-1160 |
|
Specification of worktable |
24-M16 threaded hole (125*125) |
|
Spindle Taper/outside dia |
BT50/190 |
|
Spindle Speed |
6000rpm |
|
X axis Ball Screw Spec. |
50&12 |
|
Y axis Ball Screw Spec. |
50&12 |
|
Z axis Ball Screw Spec. |
50&12 |
|
X Roller slideways Spec. |
INA RUE55 |
|
Y Roller slideways Spec. |
INA RUE55 |
|
Z Roller slideways Spec. |
INA RUE55 |
|
X,Y&Z Motor Connnection |
Direct |
|
Spindle motor recommended |
15-18.5 kw |
|
Drive motors recommended X/Y/Z |
X: 26 Y:20 (brake) Z: 22Nm |
|
Table Work Load |
800*2 Kg |
|
Net Weight |
12000 Kg |
|
′
