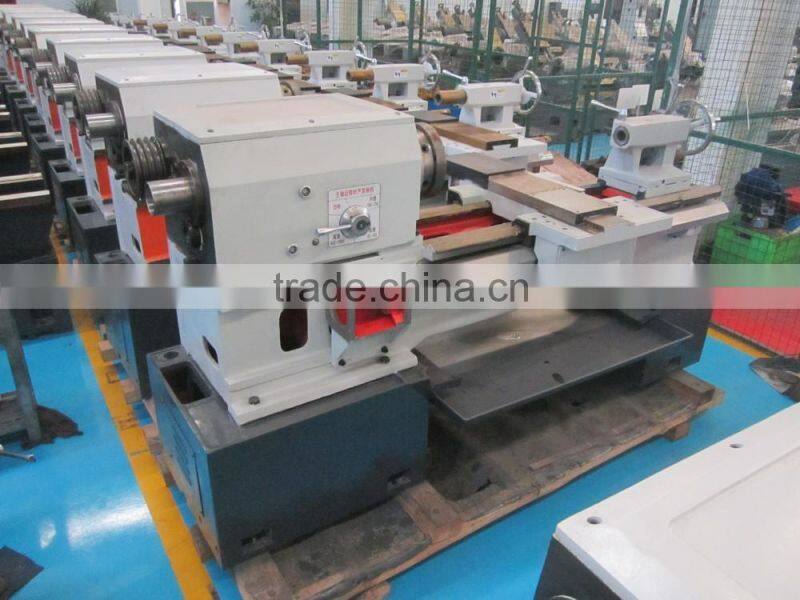

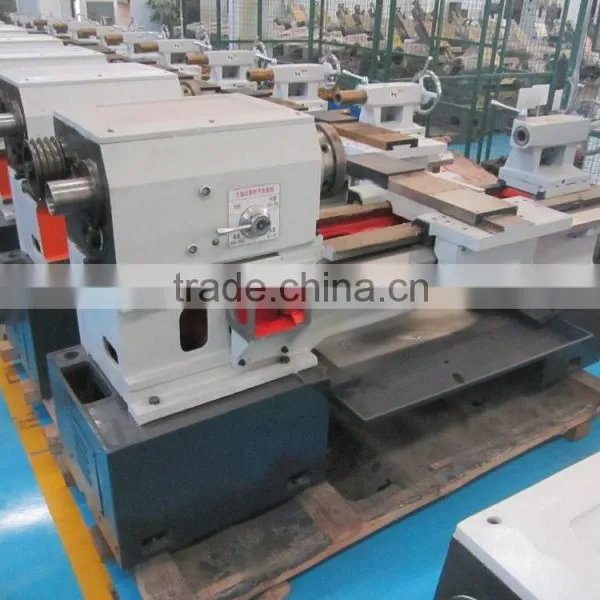

Help CenterFlat Bed CNC Lathe Frame TCK6150B
Related Products

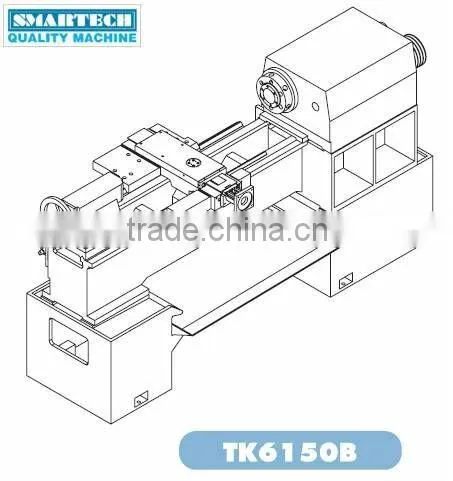

SMARTECH CNC LATHE FRAME
- MACHINE FEATURE:
1 High-class casting processed by resin sand and wood mould;
2 Imported ball screws sets, linear guide and bearing;
3 Hydraulic tailstock;
4 Imported coupling;
5 Integrated spindle;
6 Stainless steel telescopic protection on X and Z axes;
7 Centralized maintenance-free automatic lubrication system;
- OPTIONAL:
1 Full guarding;
2 Hydraulic turret;
3 Hydraulic cylinder and chuck;
4 Hydraulic unit;
- SPECS:
MODEL |
TCK6150B |
Max swing diameter over bed |
Φ500 |
Max turning diameter |
Φ500 |
Max swing diameter over toolpost |
Φ290 |
Max turning length |
750/1000/1500 |
Distance between centers |
750/1000/1500 |
Spindle nose spec |
D-8 |
Spindle motor mounting |
Horizontal |
Spindle speed |
190/650/1600rpm 3 steps |
Spindle Bore |
Φ82 |
Bar capacity |
Φ78 |
X axis Ball Screw Spe. |
FYND-2504-P3 |
Z axis Ball Screw Spe. |
FYND-4010-P3 |
Tailstock quill diameter |
Φ75 |
Quill Stroke |
150 |
Dimension (LxWxH) |
2485x900x1400 2735x900x1400 3235x900x1400 |
Net Weight |
2300/2400/2600kg |
