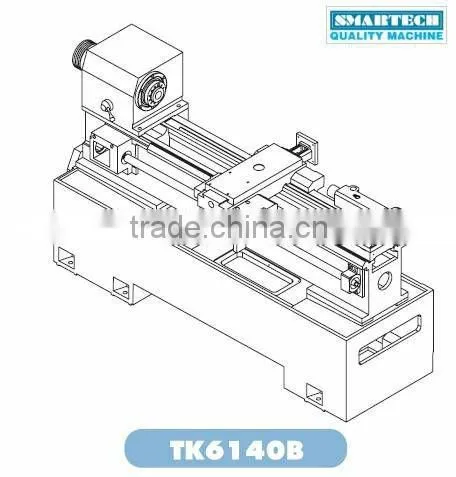

CNC Lathe Frame TK6140B

Name: CNC Lathe Frame TK6140B
Brand: SMARTECH
Availability: InStock

FOB Price

US$ 6,000 - 6,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Turning Center
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	400mm	Place of Origin	Yunnan, China
Brand Name	SMARTECH	Model Number	TK6140B
Voltage	220V/380V	Power(W)	7.5kw
Dimension(LWH)	205014001850mm	Weight	1800kg
Certification	ISO9001	After-sales Service Provided	Overseas third-party support available

SMARTECH CNC LATHE FRAME

1 High-class casting processed by resin sand and wood mould;

2 Imported ball screws sets, linear guide and bearing;

3 Hydraulic tailstock;

4 Imported coupling;

5 Integrated spindle;

6 Stainless steel telescopic protection on X and Z axes;

7 Centralized maintenance-free automatic lubrication system;

1 Full guarding;

2 Hydraulic turret;

3 Hydraulic cylinder and chuck;

4 Hydraulic unit;

MODEL	TK6140B
Max swing diameter over bed	Φ420
Max turning diameter	Φ400
Max swing diameter over toolpost	Φ200
Max turning length	750/1000
Distance between centers	750/1000
Spindle nose spec	A-6
Spindle motor mounting	Vertical
Spindle speed	180/600/1600rpm 3 steps
Spindle Bore	Φ52
Bar capacity	Φ48
X axis Ball Screw Spe.	GQ2504-P3
Z axis Ball Screw Spe.	GQ4006-P3
Tailstock quill diameter	Φ60
Quill Stroke	120
Dimension (LxWxH)	2032x710x1240 / 2238x710x1240
Net Weight	1550/1950kg
