Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > CNC Machine Frame VMC1270L

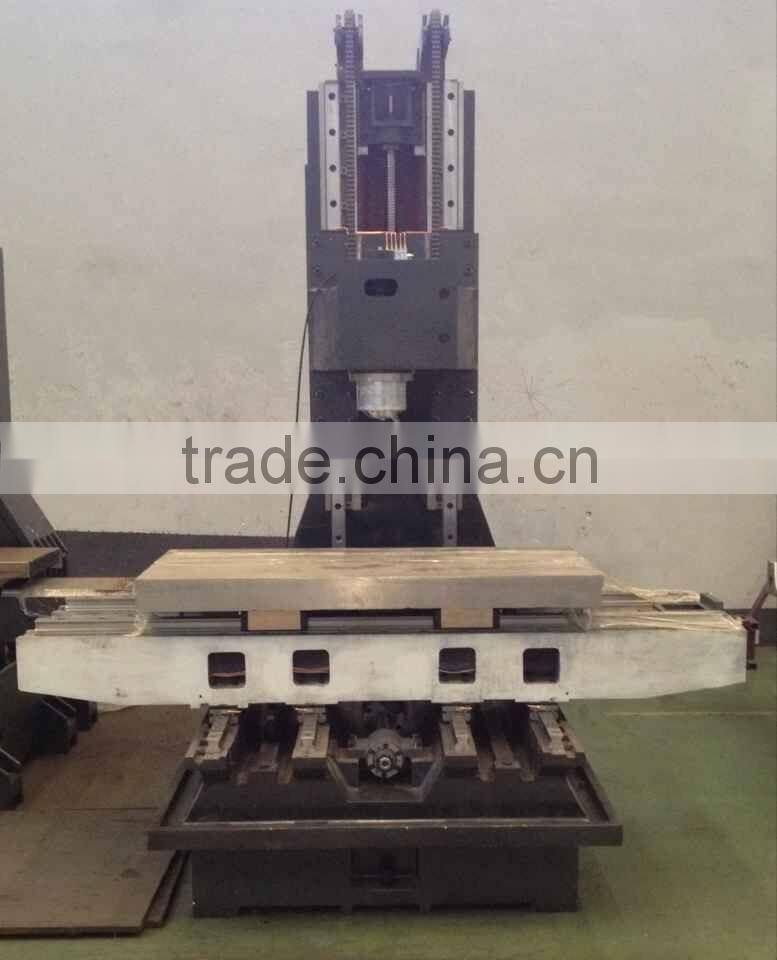

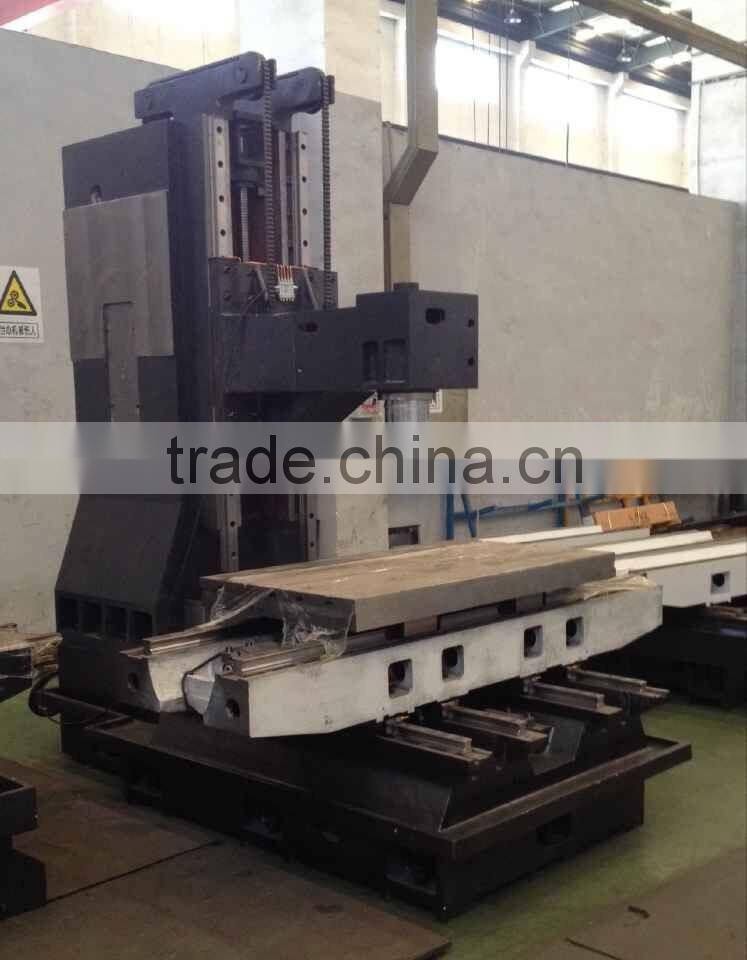

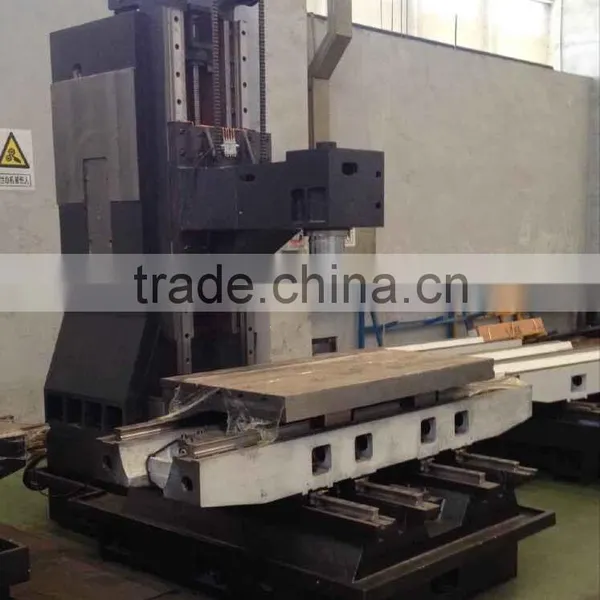

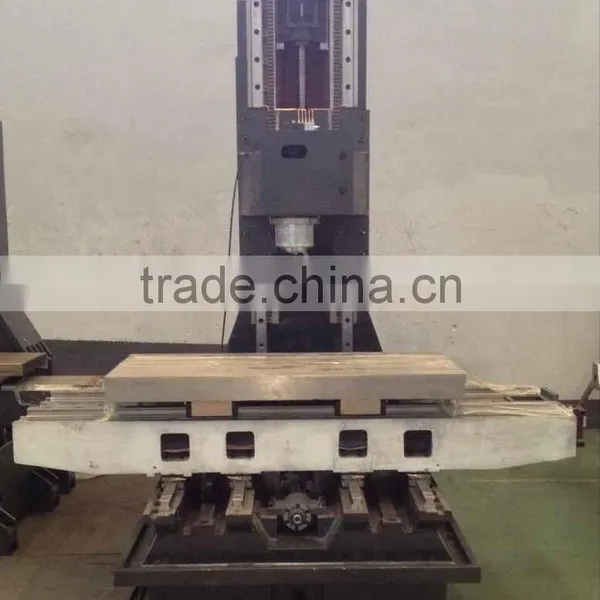

CNC Machine Frame VMC1270L

Name: CNC Machine Frame VMC1270L
Brand: SMARTECH
SKU: 123972891
Availability: InStock

US$ 16,000 - 18,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Yunnan, China

Brand Name:

SMARTECH

Contact Supplier Request Quote Chat Now

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA;

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number VMC-1270L

Type Vertical

CNC or Not CNC

Voltage 380V

Power(W) 7.5/11 KW

Dimension(L*W*H) 2400*2300*2500mm

Weight 5800KG

Certification ISO 9001

Warranty 1 Year

After-sales Service Provided Overseas third-party support available

For more information please visit

SMARTECH CNC VMC FRAME

MACHINE FEATURE:

1 High-class casting by resin sand and wood mould;

2 Top class imported ball screws sets and bearing ;

3 Imported spindle & tool clamping system ;

4 Imported drive connectors ;

5 Stainless steel telescopic protection on X/Y/Z axis ;

6 Central lubrication system ;

7 Coolant system ;

8 X,Y&Z axes Linear slideways type;

OPTIONAL:

1 Spindle from Taiwan;

2 Direct drive structure for main motor with spindle ;

3 Central oil coolant for the spindle ;

4 Coolant through spindle ;

5 ATC: drum type, arm type or chain type ;

6 Outside guarding: standard or special made according to clients design

7 Chip conveyor

8 CNC pre-installed for clients: whole full ready package delivery according to clients design

SPECS:

MODEL	VMC-1270L
Table Size	600 x 1300
Travel X	1200
Y	600
Z	700
Spindle to Column Slideway	670
Spindle Nose to Table Surface	160-860
T-Slot(No-size/distance)	5-22/107.5
Spindle Taper/outside dia	BT40/150
Spindle Speed	8000rpm
X,Y axis Ball Screw Spec.	50/10
Z axis Ball Screw Spec.	50/10
X,Y & Z Motor Connection	Direct drive
Main motors recommended	11kw
Drive motors recommended X/Y/Z	16/16/16Nm
Table Work Load	1000 Kg
Net Weight	7500kg
