CNC Machine Frame / Body ;HV1060

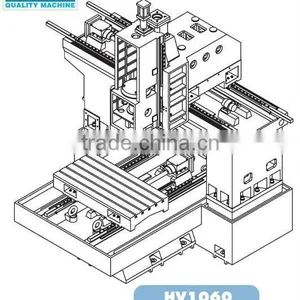

CNC Machine Frame / Body ;HV1060 thumbnail-1
CNC Machine Frame / Body ;HV1060 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Smartech
Model Number:
HV1060
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN CHINA;
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Smartech
Model Number HV1060
Type Vertical
CNC or Not CNC
Voltage 380 V
Power(W) 18.5 kw
Weight 8500 kg
Certification CE ISO
Warranty one year

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

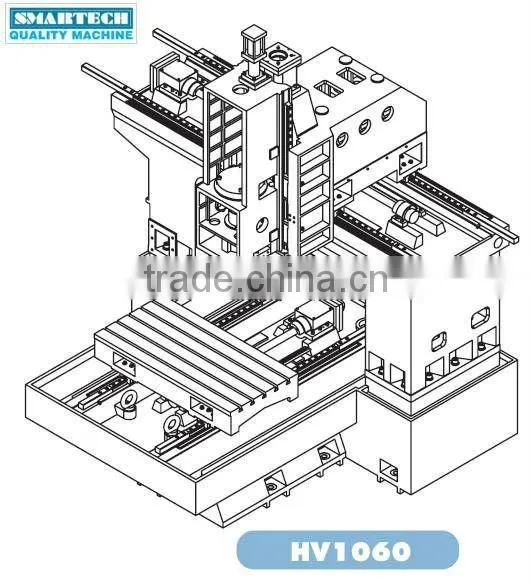

SMARTECH CNC VMC FRAME

  • MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      X,Y&Z axes Linear slideways type;

  • OPTIONAL:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design



  • SPECS:

MODEL

HV1060

Table Size

600 x 1200

Travel X

1000

Y

600

Z

500

Spindle to Column Slideway



Spindle Nose to Table Surface

150-650

T-Slot(No-size/distance)

5-18/105

Spindle Taper/outside dia

BT40/150

Spindle Speed

15000rpm

X,Y axis Ball Screw Spec.

45/16

Z axis Ball Screw Spec.

50/12

X,Y & Z Motor Connection

Direct drive

Main motors recommended

18.5kw

Drive motors recommended X/Y/Z

26/26/36Nm

Table  Work Load

850 Kg

Net Weight

8500kg
