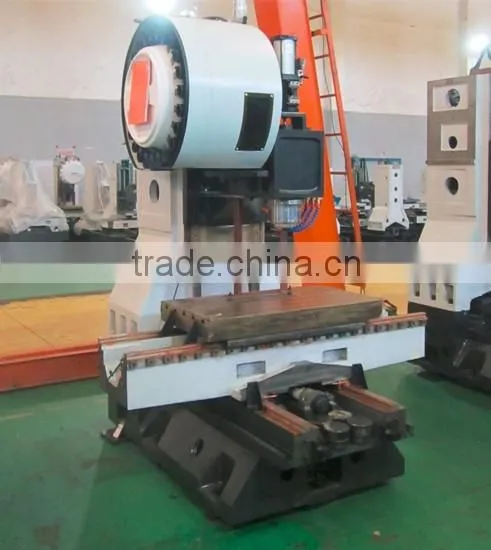

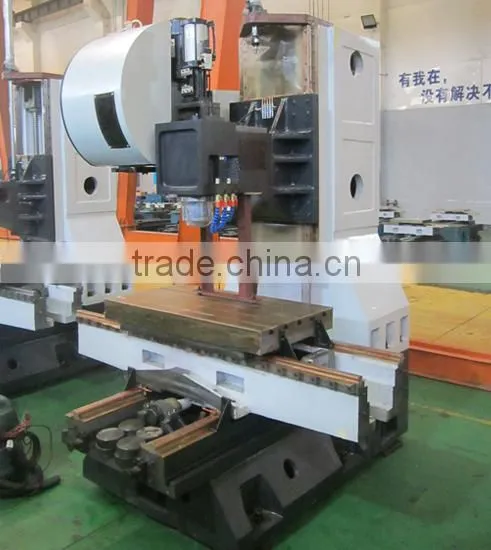

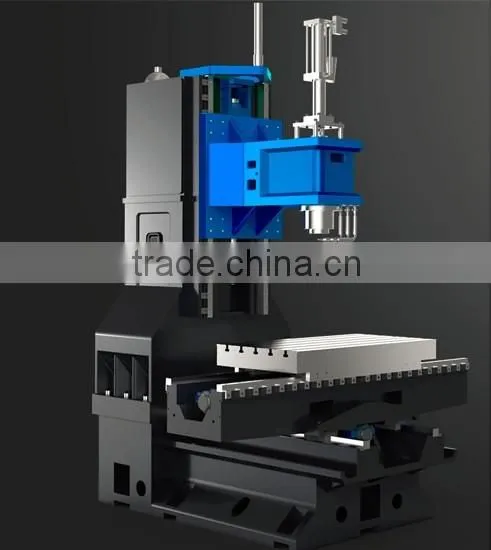

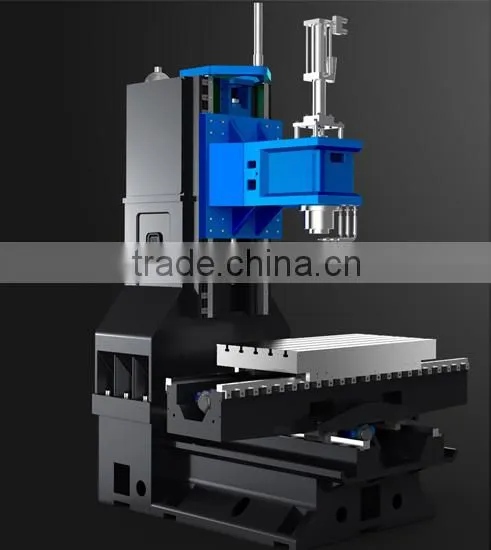

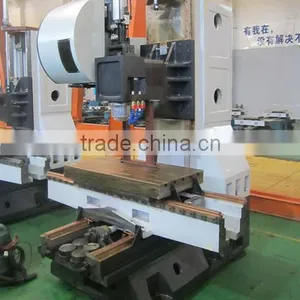

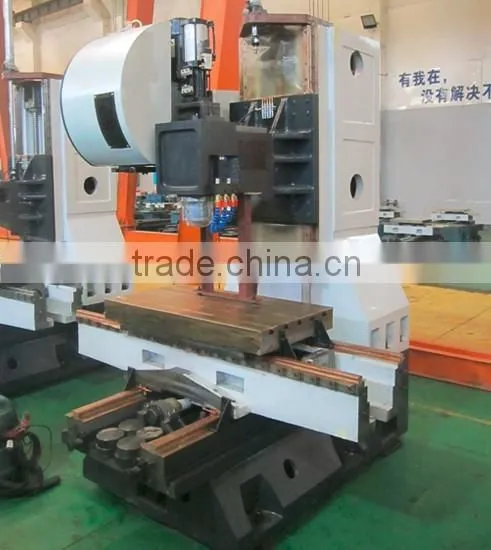

VMC Structure VMC-L8050

VMC Structure VMC-L8050 thumbnail-1

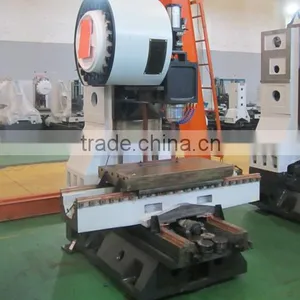

VMC Structure VMC-L8050 thumbnail-2
VMC Structure VMC-L8050 thumbnail-3
VMC Structure VMC-L8050 thumbnail-4
VMC Structure VMC-L8050 thumbnail-5
VMC Structure VMC-L8050 photo-1
VMC Structure VMC-L8050 photo-2
VMC Structure VMC-L8050 photo-3
VMC Structure VMC-L8050 photo-4
VMC Structure VMC-L8050 photo-5
US$ 14,500 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Yunnan, China
Brand Name:
SMARTECH
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN CHINA;
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Yunnan, China
Brand Name SMARTECH
Model Number VMC-L8050
Type Vertical
CNC or Not CNC
Voltage 380V
Power(W) 7.5KW
Dimension(L*W*H) 2220*2300*2400mm
Weight 5000KG
Certification ISO 9001
Warranty 1 Year
After-sales Service Provided Overseas third-party support available

For more information please visit

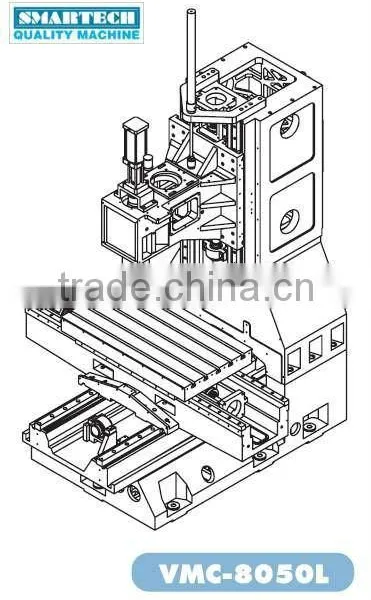

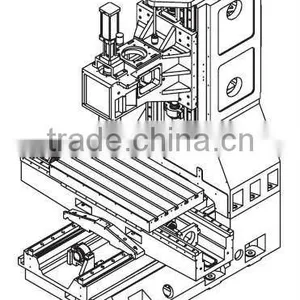

SMARTECH CNC VMC STRUCTURE

    STANDARD COMPONENTS OF VMC STRUCTURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      X,Y&Z axes Linear slideways type;

  • OPTIONAL COMPONENTS OF  VMC STRUCTURE:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design



  • SPECS:

MODEL

VMC-L8050

Table Size

550 x 1000

Travel X

800

Y

500

Z

500

Spindle to Column Slideway

599

Spindle Nose to Table Surface

160-660

T-Slot(No-size/distance)

5-18/100

Spindle Taper/outside dia

BT40/150

Spindle Speed

8000rpm

X,Y axis Ball Screw Spec.

45/16

Z axis Ball Screw Spec.

45/12

X,Y & Z Motor Connection

Direct drive

Main motors recommended

7.5kw

Drive motors recommended X/Y/Z

10/12/12Nm

Table  Work Load

600 Kg

Net Weight

5000kg



VMC Structure VMC-L8050



VMC Structure VMC-L8050



For more information please visit



VMC Structure VMC-L8050



VMC Structure VMC-L8050







For more information please visit



Machining Equipments Imported from Nicolas Correa Spain









A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)







ISO Certificate
