Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > CNC Machine Frame / Body;VMC-8655L

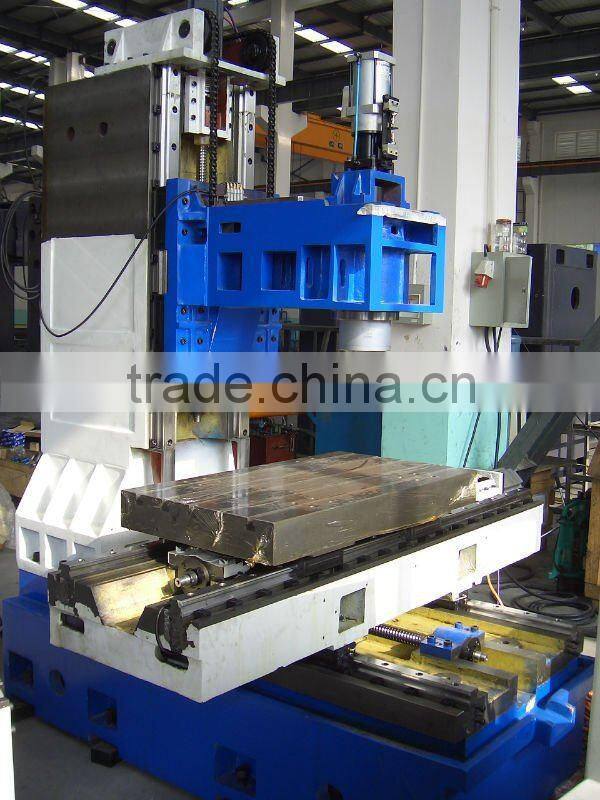

CNC Machine Frame / Body;VMC-8655L

Name: CNC Machine Frame / Body;VMC-8655L
Brand: SMARTECH
SKU: 123972869
Availability: InStock

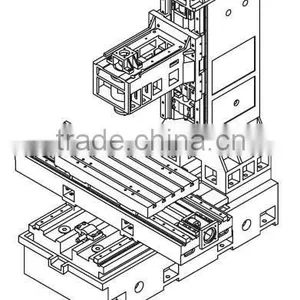

CNC Machine Frame / Body;VMC-8655L thumbnail-1

CNC Machine Frame / Body;VMC-8655L photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Yunnan, China

Brand Name:

SMARTECH

Contact Supplier Request Quote Chat Now

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA;

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number VMC-8655L

Type Vertical

CNC or Not CNC

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

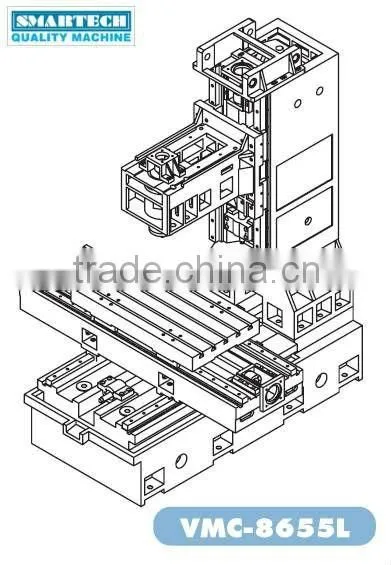

SMARTECH CNC VMC FRAME

MACHINE FEATURE:

1 High-class casting by resin sand and wood mould;

2 Top class imported ball screws sets and bearing ;

3 Imported spindle & tool clamping system ;

4 Imported drive connectors ;

5 Stainless steel telescopic protection on X/Y/Z axis ;

6 Central lubrication system ;

7 Coolant system ;

8 X,Y&Z axes Linear slideways type;

OPTIONAL:

1 Spindle from Taiwan;

2 Direct drive structure for main motor with spindle ;

3 Central oil coolant for the spindle ;

4 Coolant through spindle ;

5 ATC: drum type, arm type or chain type ;

6 Outside guarding: standard or special made according to clients design

7 Chip conveyor

8 CNC pre-installed for clients: whole full ready package delivery according to clients design

SPECS:

MODEL	VMC-8655L
Table Size	550 x 1000
Travel X	860
Y	550
Z	500
Spindle to Column Slideway	600
Spindle Nose to Table Surface	130-630
T-Slot(No-size/distance)	5-18/100
Spindle Taper/outside dia	BT40/150
Spindle Speed	8000rpm
X,Y axis Ball Screw Spec.	40/12
Z axis Ball Screw Spec.	40/12
X,Y & Z Motor Connection	Direct drive
Main motors recommended	7.5kw
Drive motors recommended X/Y/Z	10/12/12Nm
Table Work Load	600 Kg
Net Weight	5500kg
