Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > CNC Machine Frame / Body;VMC-5641L

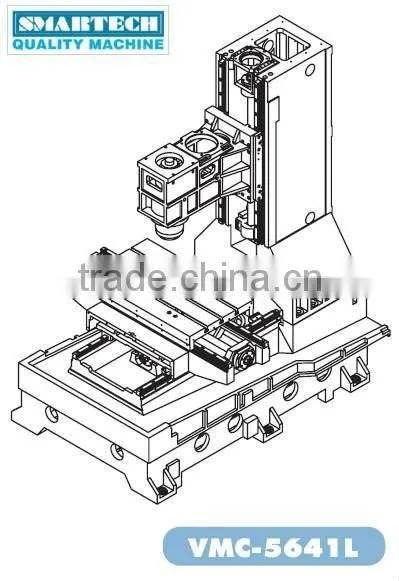

CNC Machine Frame / Body;VMC-5641L

Name: CNC Machine Frame / Body;VMC-5641L
Brand: SMARTECH
SKU: 123972831

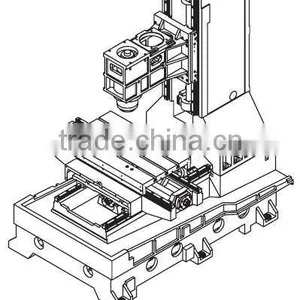

CNC Machine Frame / Body;VMC-5641L thumbnail-1

CNC Machine Frame / Body;VMC-5641L photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Yunnan, China

Brand Name:

SMARTECH

Contact Supplier Request Quote Chat Now

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA;

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number VMC-5641L

Type Vertical

CNC or Not CNC

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

SMARTECH CNC VMC FRAME

MACHINE FEATURE:

1 High-class casting by resin sand and wood mould;

2 Top class imported ball screws sets and bearing ;

3 Imported spindle & tool clamping system ;

4 Imported drive connectors ;

5 Stainless steel telescopic protection on X/Y/Z axis ;

6 Central lubrication system ;

7 Coolant system ;

8 X,Y&Z axes Linear slideways type;

OPTIONAL:

1 Spindle from Taiwan;

2 Direct drive structure for main motor with spindle ;

3 Central oil coolant for the spindle ;

4 Coolant through spindle ;

5 ATC: drum type, arm type or chain type ;

6 Outside guarding: standard or special made according to clients design

7 Chip conveyor

8 CNC pre-installed for clients: whole full ready package delivery according to clients design

SPECS:

MODEL	VMC-5641L
Table Size	420 x 700
Travel X	560
Y	410
Z	450
Spindle to Column Slideway	453
Spindle Nose to Table Surface	110-560
T-Slot(No-size/distance)	3-14/100
Spindle Taper/outside dia	BT40/130
Spindle Speed	8000rpm
X,Y axis Ball Screw Spec.	32/16
Z axis Ball Screw Spec.	32/16
X,Y & Z Motor Connection	Direct drive
Main motors recommended	5.5kw
Drive motors recommended X/Y/Z	8/10/10Nm
Table Work Load	300 Kg
Net Weight	3000kg
