CNC Machine Frame;VMC1270L

CNC Machine Frame;VMC1270L thumbnail-1
CNC Machine Frame;VMC1270L photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Yunnan, China
Brand Name:
SMARTECH
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN CHINA;
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Yunnan, China
Brand Name SMARTECH
Model Number VMC1270L
Type Vertical
CNC or Not CNC

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

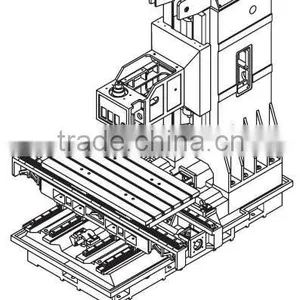

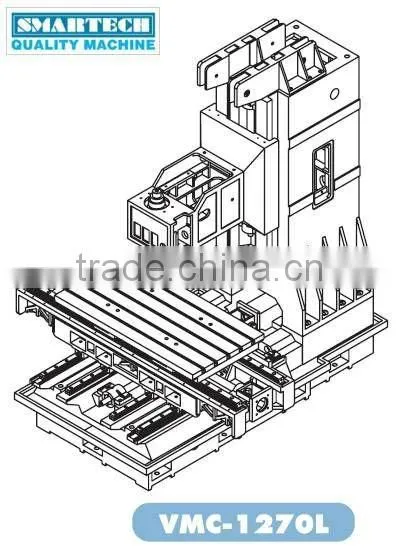

SMARTECH CNC VMC FRAME

  • MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      X&Y axes Linear slideways and Z axis box way type;

  • OPTIONAL:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design



  • SPECS:

MODEL

VMC-1270L

Table Size

700 x 1360

Travel X

1200

Y

700

Z

600

Spindle to Column Slideway

785

Spindle Nose to Table Surface

87-687

T-Slot(No-size/distance)

5-18/122

Spindle Taper/outside dia

BT50/155

Spindle Speed

8000rpm

X,Y axis Ball Screw Spec.

50/10

Z axis Ball Screw Spec.

50/10

X,Y & Z Motor Connection

Direct drive

Main motors recommended

11-15kw

Drive motors recommended X/Y/Z

16/16/16Nm

Table  Work Load

1000 Kg

Net Weight

7500kg

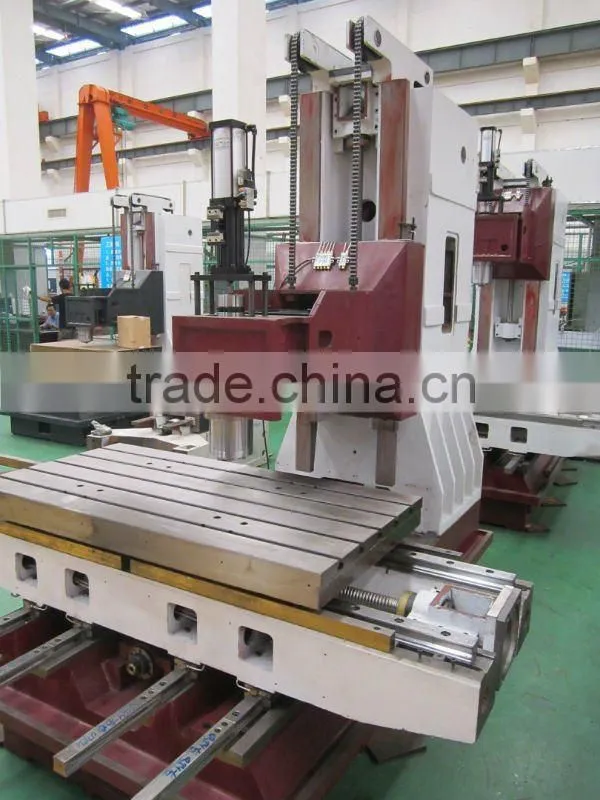

CNC machine frame;VMC1270L
