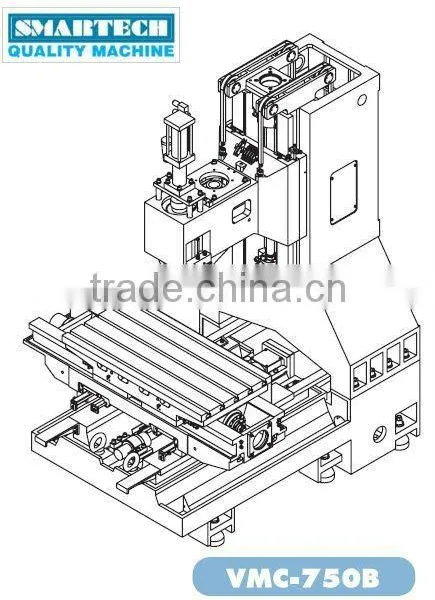

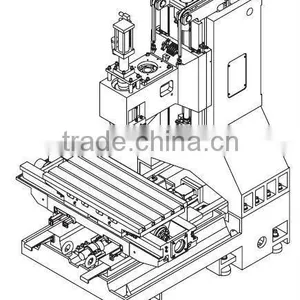

CNC machine frame / body;VMC750B

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

SMARTECH CNC VMC FRAME

• MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      Harden&ground on all slideways and Turcite-B coated with precise scraping;



• OPTIONAL:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design



• SPECS:

MODEL	VMC-750B
Table Size	450 x 900
Travel X	700
Y	500
Z	500
Spindle to Column Slideway	540
Spindle Nose to Table Surface	105-605
T-Slot(No-size/distance)	5-18/85
Spindle Taper/outside dia	BT40/150
Spindle Speed	8000rpm
X,Y axis Ball Screw Spec.	40/10
Z axis Ball Screw Spec.	40/10
X,Y & Z Motor Connection	Direct drive
Main motors recommended	5.5-7.5w
Drive motors recommended X/Y/Z	10/12/12Nm
Table  Work Load	600 Kg
Net Weight	3000kg

                                          *Also provide linear-type slide ways.
