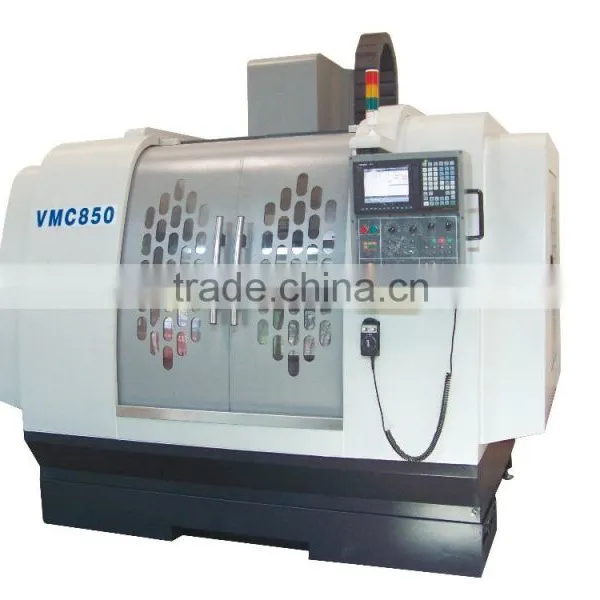

Help CenterVMC Vertical Machining Center VMC 850B
Related Products
For more information please visit
SMARTECH VERTICAL MACHINING CENTER

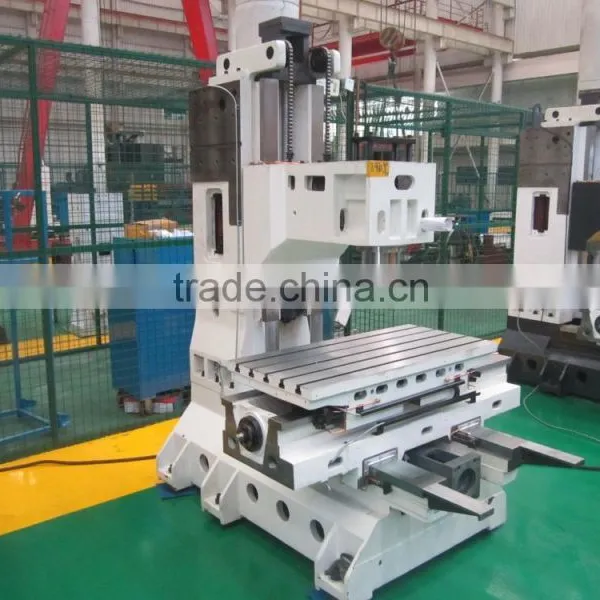

- MACHINE FRAME FEATURE:
1 High-class casting by resin sand and wood mould;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors ;
5 Stainless steel telescopic protection on X/Y/Z axis ;
6 Central lubrication system ;
7 Coolant system ;
8 Harden&ground on all slideways and Turcite-B coated with precise scraping;
- OPTIONAL:
1 Spindle from Taiwan;
2 Direct drive structure for main motor with spindle ;
3 Central oil coolant for the spindle ;
4 Coolant through spindle ;
5 ATC: drum type, arm type or chain type ;
6 Outside guarding: standard or special made according to clients design
7 Chip conveyor
8 CNC pre-installed for clients: whole full ready package delivery according to clients design
- SPECS:
MODEL
VMC 850B
Table Size
500 x 1050
Travel X
800
Y
500
Z
550
Spindle to Column Slideway
550
Spindle Nose to Table Surface
105-655
T-Slot(No-size/distance)
5-18/90
Spindle Taper/outside dia
BT40/150
Spindle Speed
8000rpm
X,Y axis Ball Screw Spec.
40/10
Z axis Ball Screw Spec.
40/10
X,Y & Z Motor Connection
Direct drive
Main motors recommended
5.5-7.5w
Drive motors recommended X/Y/Z
10/12/12Nm
Table Work Load
600 Kg
Net Weight
3500kg
*Also provide linear-type slide ways.
For more information please visit
Machining Equipments Imported from Nicolas Correa Spain
A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
For more information please visit
