Vertical Machining Center VMC850D

Vertical Machining Center VMC850D thumbnail-1
Vertical Machining Center VMC850D photo-1
US$ 1 - 3 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Yunnan, China
Brand Name:
SMARTECH
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN CHINA;
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Yunnan, China
Brand Name SMARTECH
Model Number VMC850D
Type Vertical
CNC or Not CNC
Voltage 380 V (Complete Machine)
Power(W) 7.5/11 Kw (Complete Machine)
Weight 5000 Kg
Certification CE
Warranty one year

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

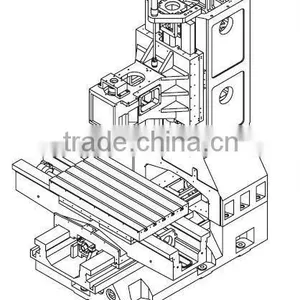

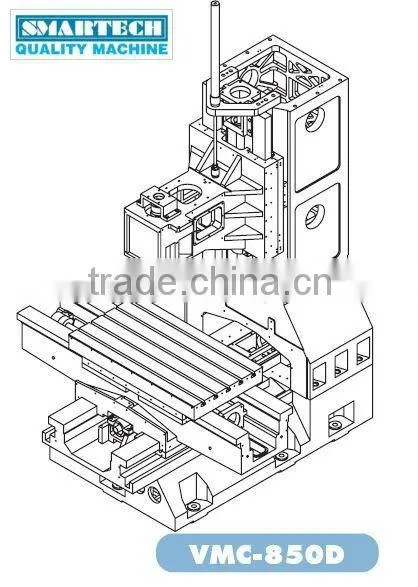

SMARTECH CNC VMC FRAME

  • MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      Harden&ground on all slideways and Turcite-B coated with precise scraping;



  • OPTIONAL:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design



  • SPECS:

MODEL

VMC-850D

Table Size

550 x 1000

Travel X

800

Y

500

Z

500

Spindle to Column Slideway

600

Spindle Nose to Table Surface

160-660

T-Slot(No-size/distance)

5-18/100

Spindle Taper/outside dia

BT40/150

Spindle Speed

8000rpm

X,Y axis Ball Screw Spec.

40/16

Z axis Ball Screw Spec.

40/12

X,Y & Z Motor Connection

Direct drive

Main motors recommended

7.5-15w

Drive motors recommended X/Y/Z

16/16/16Nm

Table  Work Load

800 Kg

Net Weight

5000kg

                                          *Also provide linear-type slide ways.
