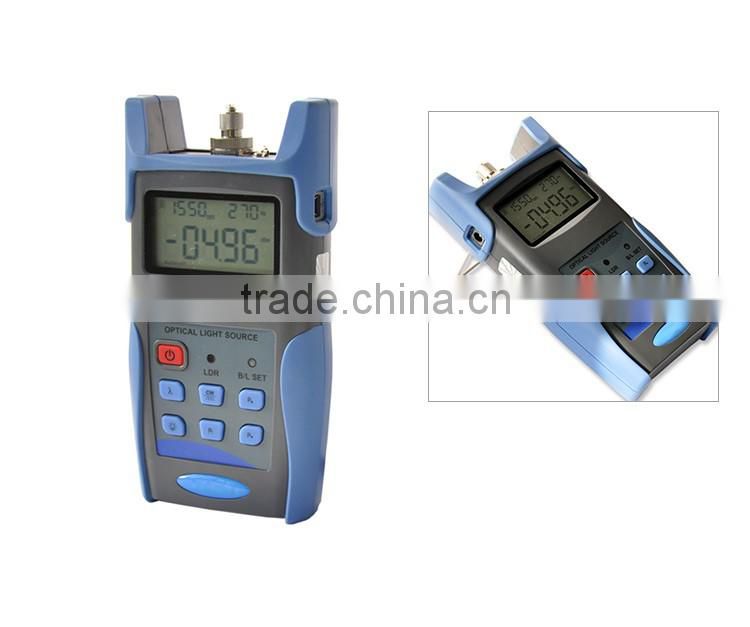

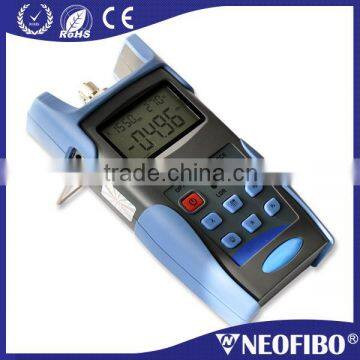

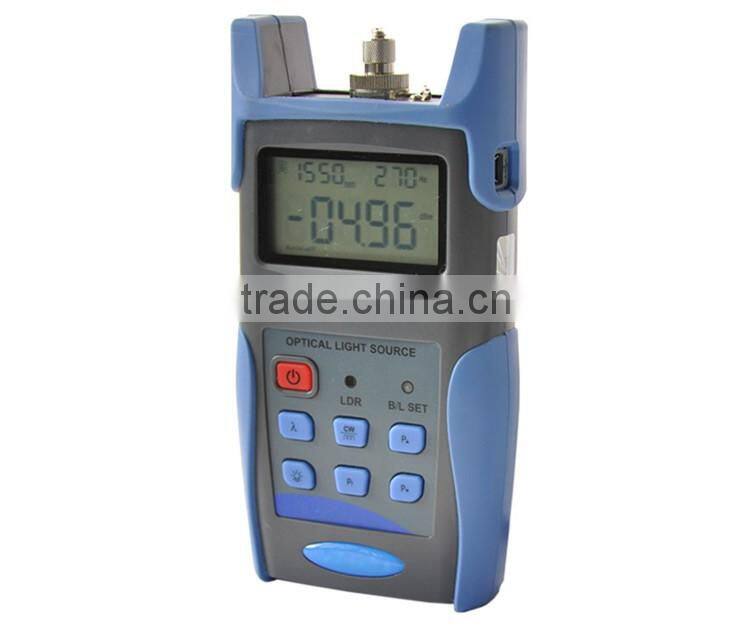

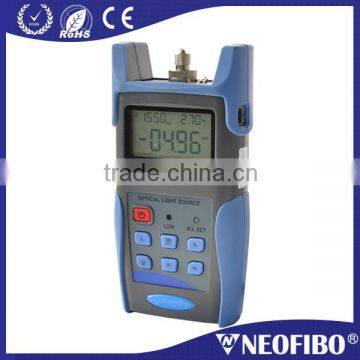

Test Equipment Measurements Fiber Optical Light Source
1.Wave ID information can be transmitted when used with 3216 Optical Power Meter.
2.Output power can be adjustable
3.Output power value is shown on LCD display
| Model | 3116 |
| Operating wavelength(nm) | 1310/1550;1310/1490/1550/1625(others specify on requests) |
| Applicable fiber | SM,MM |
| Laser type | FP-LD(others specify on requests) |
| Output Power(dBm) | -7(can be adjustable) |
| Adjustable step size(dBm) | <0.5 |
| Stability(dB,30min,20℃) | 0.15 |
| Modulation(Hz) | CW, 270,330,1K,2K |
| Fiber Port | FC/PC |
| Alkaline Battery | 3*AA,1.5V |
| Power Supply Adaptor(V) | 8.4 |
| Battery Operating time(h) | 45 |
| Operation Temperature(℃) | -10~+60 |
| Storage Temperature(℃) | -25~+70 |
| Outline size(mm)/weight | 180*90*45(250g) |
Features
1.Tone generation, 270HZ,330HZ,1KHZ,2KHZ
2.Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
3.AA alkaline and AC adapter for power supply
4.Low battery indication
Applications
1.Maintenance CATV&Telecom
2.Test Lab of Fiber Optic
3.Fiber Optic Measurements
4.Optical fiber sensors research
What does NEOFIBO offer?
We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, Splice Items. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!
What will be the delivery cost?
All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.
How the goods will be delivered?
For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.
How can I order the goods?
NEOIFBO are pleased to offer our valuable customers three ordering channels, ie., Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.
How is the warranty for NEOFIBO product?
All products are warranted by NEOFIBO (consumables, normal tear and wear excluded) for one year after date of purchase. Any part defected in material or workmanship and returned to NEOFIBO, as NEOFIBO designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced, at NEOFIBO's option.
