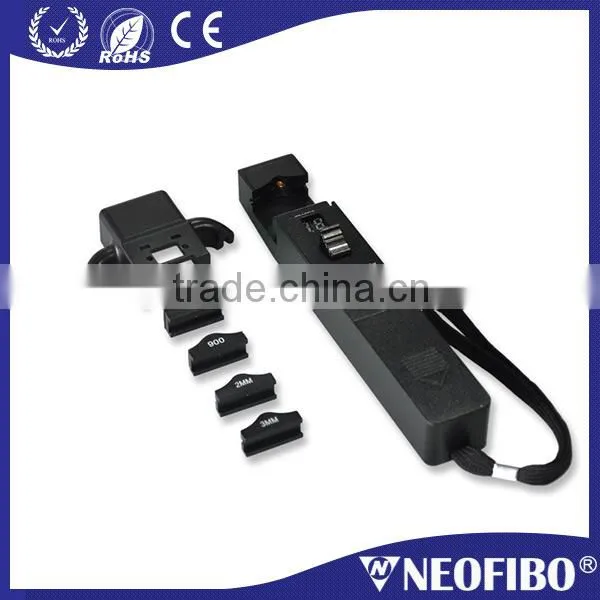

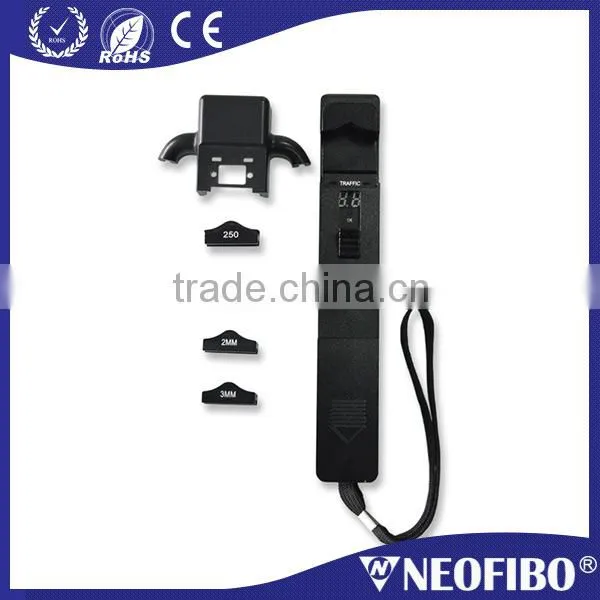

Optical fiber sensors research identifier for test lab
1.Easy-to-use with “ONE KEY” operation.
2.Easy-to-replace adaptors
| Type | OFI-3306B | |
| Identified Wavelength Range | 800-1700 nm | |
| Identified Signal Type | CW, 270Hz±5%,1kHz±5%,2kHz±5% | |
| Detector Type | Ø1mm InGaAs 2pcs | |
| Adapter Type | Ø0.25 (Applicable for Bare Fiber) | |
| Ø0.9 (Applicable for Ø0.9 Cable ) | ||
| Ø2.0 (Applicable for Ø2.0 Cable ) | ||
| Ø3.0 (Applicable for Ø3.0 Cable ) | ||
| Signal Direction | Left & Right LED | |
| Singe Direction Test Range | -46~10(1310nm) | |
| (dBm, CW/0.9mm bare fiber) | -50~10(1550nm) | |
| Signal Power Test Range | -50~+10 | |
| (dBm, CW/0.9mm bare fiber) | ||
| Signal Frequency Display (Hz) | 270, 1k, 2k | |
| Frequency Test Range (dBm, Average Value) |
Ø0.9, Ø2.0, Ø3.0 | -30~0 (270Hz,1KHz) |
| -25~0 (2KHz) | ||
| Ø0.25 | -25~0 (1KHz,2KHz) | |
| -20~0 (2KHz) | ||
| Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
| 2.5 (1550nm) | ||
| Alkaline Battry(V) | 9 | |
| Operating Temperature(℃) | -70 | |
| Storage Temperature(℃) | -95 | |
| Dimension (mm) | 196X30.5X27 | |
| Weight (g) | 200 | |
Features
1.Displays the relative core power
2.More accurate test with Sunshade
3.Durable metal housing and quality construction
4.Lower power indication
Applications
1.Maintenance CATV&Telecom
2.Test Lab of Fiber Optic
3.Fiber Optic Measurements
4.Optical fiber sensors research
What does NEOFIBO offer?
We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, Splice Items. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!
What will be the delivery cost?
All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.
How the goods will be delivered?
For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.
How can I order the goods?
NEOIFBO are pleased to offer our valuable customers three ordering channels, ie., Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.
How is the warranty for NEOFIBO product?
All products are warranted by NEOFIBO (consumables, normal tear and wear excluded) for one year after date of purchase. Any part defected in material or workmanship and returned to NEOFIBO, as NEOFIBO designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced, at NEOFIBO's option.
