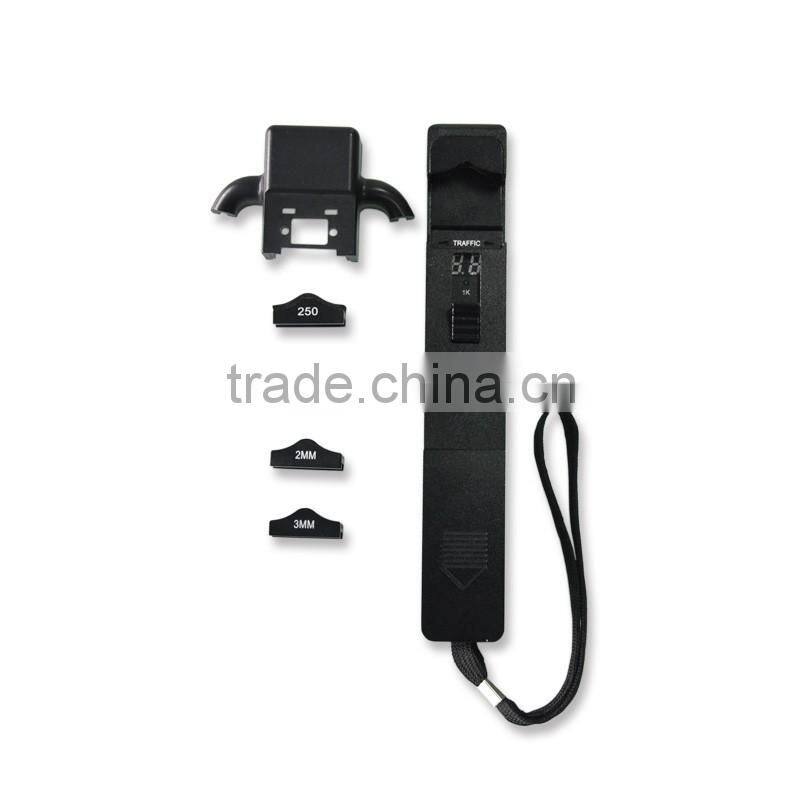

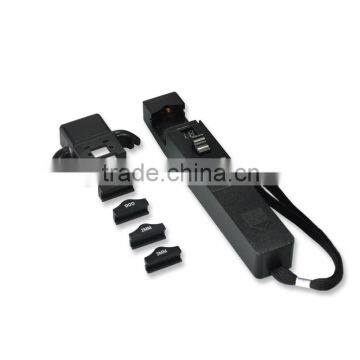

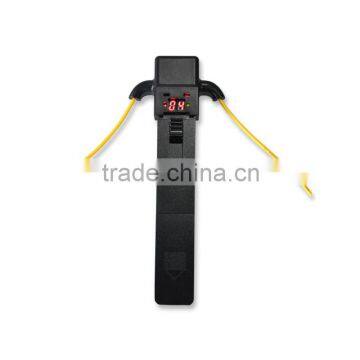

Optical Fiber Identifier_OFI-3306B
Key Feature:
1. Easy-to-use with “ONE KEY” operation.
2. Easy-to-replace adaptors.
3. Displays the relative core power
4. More accurate test with Sunshade
5. Durable metal housing and quality construction
6. Lower power indication
Application:
Maintenance CATV&Telecom
Test Lab of Fiber Optic
Optical fiber sensors research
Fiber Optic Measurements
Detail Information:
| Type | OFL-3306B | |
| Identified Wavelength Range | 800-1700 nm | |
| Identified Signal Type | CW, 270Hz±5%,1kHz±5%,2kHz±5% | |
| Detector Type | Ø1mm InGaAs 2pcs | |
| Adapter Type | Ø0.25 (Applicable for Bare Fiber) | |
| Ø0.9 (Applicable for Ø0.9 Cable ) | ||
| Ø2.0 (Applicable for Ø2.0 Cable ) | ||
| Ø3.0 (Applicable for Ø3.0 Cable ) | ||
| Signal Direction | Left & Right LED | |
| Singe Direction Test Range | -46~10(1310nm) | |
| (dBm, CW/0.9mm bare fiber) | -50~10(1550nm) | |
| Signal Power Test Range | -50~+10 | |
| (dBm, CW/0.9mm bare fiber) | ||
| Signal Frequency Display (Hz) | 270, 1k, 2k | |
| Frequency Test Range (dBm, Average Value) | Ø0.9, Ø2.0, Ø3.0 | -30~0 (270Hz,1KHz) |
| -25~0 (2KHz) | ||
| Ø0.25 | -25~0 (1KHz,2KHz) | |
| -20~0 (2KHz) | ||
| Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
| 2.5 (1550nm) | ||
| Alkaline Battry(V) | 9 | |
| Operating Temperature(℃) | -70 | |
| Storage Temperature(℃) | -95 | |
| Dimension (mm) | 196X30.5X27 | |
| Weight (g) | 200 | |
