Aluminum Foil Dishes Production Line

Aluminum Foil Dishes Production Line photo-1
US$ 15,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Changyuan
Model Number:
CYAL-B-45T
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any chinese port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Changyuan
Model Number CYAL-B-45T

Specifications

Aluminum Foil Dishes Production Line
1. Pass ISO 9000:2008,CE Standard
2.Use Imported electric components

Aluminum Foil Dishes Production Line adopt imported Seimens motor,PLC and Schneider electronic componets to make sure the machine's top quality, the whole line include:



Aluminium foil roll---decoiler--pneumatic press----mould---conveyor---collection desk---packing



1).  Aluminum Foil ContainerProduction Line adopt imported brand and best quality PLC control systemand electric componeets, like SEIMENS PLC and sevo motor to make sure the whole line work accurate and steady.



2).There is an auto-lubricator on the feeder, which can automatically lubricated the aluminium feeder.

The foil feeder provides the supply of right quantity and length of aluminium foil, and it is

controlled by servo system in SEIMENS, which assure a high-precision step.



3).This machine equipped with a mould lifter to charge the mould easily by the worker.



4).We can design and manufacture machine according to customer’s requirment and target price.

ISO9001:2008 standard



Technical data:

ITEM

CYAL-45T

CYAL-63T

Strokes

40-75times/min

30-70times/min

Motor Capacity

6.5KW

8KW

Voltage

3-380V 50HZ

4wires

3-380V 50HZ

4wires

Total Weight

6500KGS

(approximate)

7500KGS

(approximate)

Area

7mx3m

7mx3m

Press Dimension

1620x1050x2960

1820x1250x3080

Core Coil Head Dia

3min/6inch

3min/6inch

Max. Foil Roll Outer Dia

700mm

800mm

Max. Foil Width

550mm

670mm

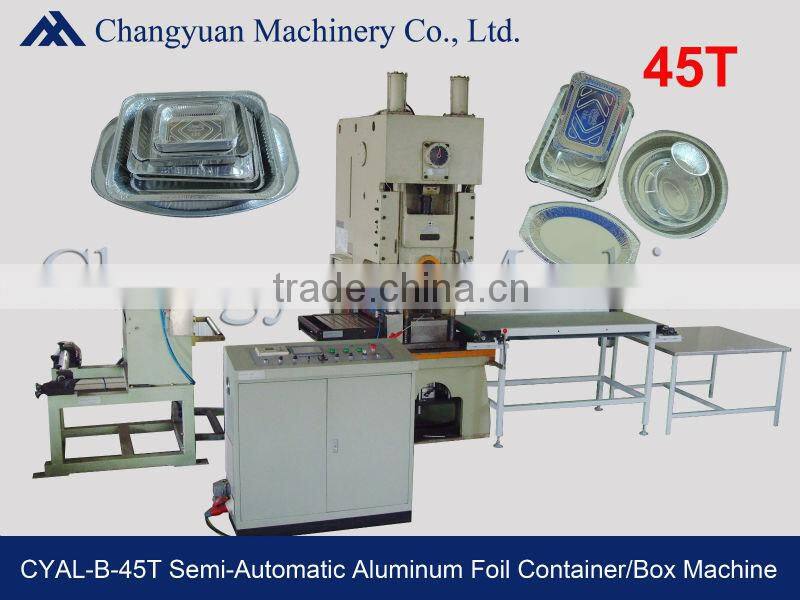

Whole Line Pic:



Aluminum Foil Dishes Production Line

Machine part PIC:



Feeding:

Aluminum Foil Dishes Production Line


Press:

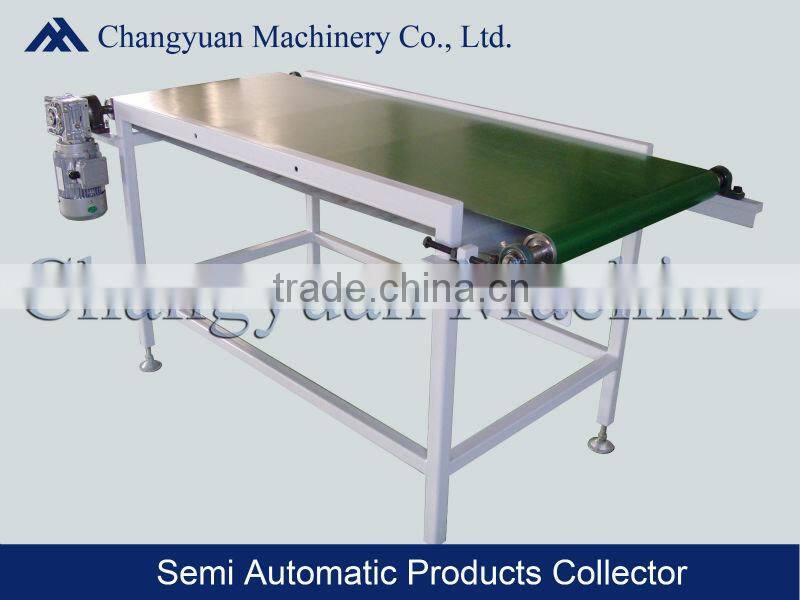

Collector:

 Products PIC:
Aluminum Foil Dishes Production Line
