Help CenterAluminum Foil Dishes Production Line
Related Products
Specifications
Aluminum Foil Dishes Production Line1. Pass ISO 9000:2008,CE Standard
2.Use Imported electric components
Aluminum Foil Dishes Production Line adopt imported Seimens motor,PLC and Schneider electronic componets to make sure the machine's top quality, the whole line include:
Aluminium foil roll---decoiler--pneumatic press----mould---conveyor---collection desk---packing
1). Aluminum Foil Dishes Production Line adopt a lot of imported brand electronic componets, like
SEIMENS PLC and sevo motor to make sure the machine work accurate and steady.
2).There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
The foil feeder provides the supply of right quantity and length of aluminium foil, and it is
controlled by servo system in SEIMENS, which assure a high-precision step.
3).We can design and manufacture machine according to customer’s requirment and customer's target price.
Technical data:
ITEM |
CYAL-45T |
CYAL-63T |
Strokes |
40-75times/min |
30-70times/min |
Motor Capacity |
6.5KW |
8KW |
Voltage |
3-380V 50HZ 4wires |
3-380V 50HZ 4wires |
Total Weight |
6500KGS (approximate) |
7500KGS (approximate) |
Area |
7mx3m |
7mx3m |
Press Dimension |
1620x1050x2960 |
1820x1250x3080 |
Core Coil Head Dia |
3min/6inch |
3min/6inch |
Max. Foil Roll Outer Dia |
700mm |
800mm |
Max. Foil Width |
550mm |
670mm |

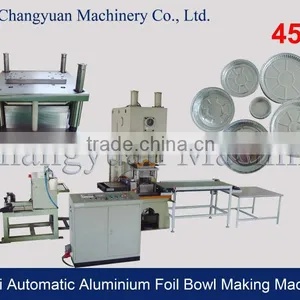

Whole Line Pic:
Machine part PIC:
Feeding:
