Help CenterAluminium Foil Container Making Machine
Related Products
Specifications
Aluminium Foil Container Making Machine:1. Adopt imported brand
2.Can be equipped with various molds
3.High speed and stabl
Aluminium Foil Container Making Machine Adopt imported Seimens motor,PLC and Schneider electronic componets to make sure the machine's top quality, the whole line include:
Auto-lubricated feeder -- control panel -- length controller-- 45T pneumatic press --mould-- full-automatic stacker—Scrap Presser
Technical Data:
ITEM |
CYAL-45T |
CYAL-63T |
Strokes |
40-75times/min |
30-70times/min |
Motor Capacity |
6.5KW |
8KW |
Voltage |
3-380V 50HZ 4wires |
3-380V 50HZ 4wires |
Total Weight |
6500KGS (approximate) |
7500KGS (approximate) |
Area |
7mx3m |
7mx3m |
Press Dimension |
1620x1050x2960 |
1820x1250x3080 |
Core Coil Head Dia |
3min/6inch |
3min/6inch |
Max. Foil Roll Outer Dia |
700mm |
800mm |
Max. Foil Width |
550mm |
670mm |
Machine PIc:
Feeding Part:

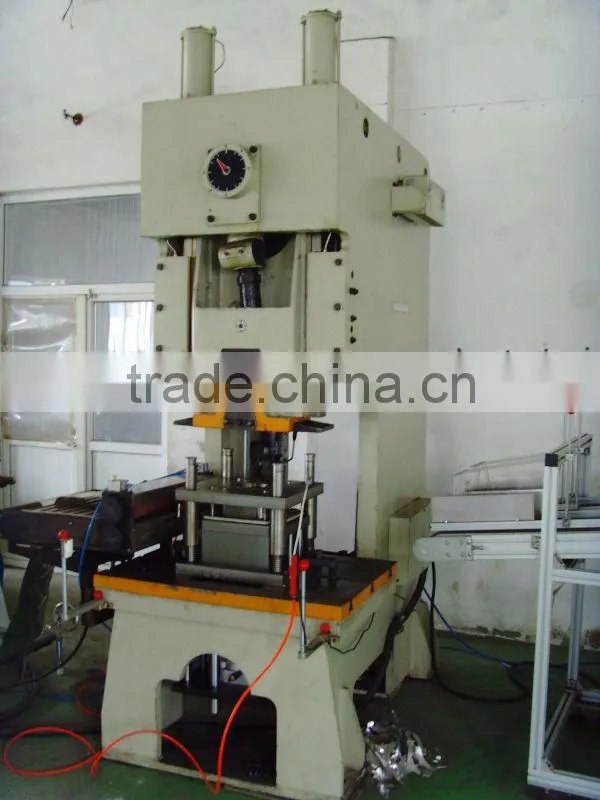

Press:
Mould:
Auto Stacker:
Finished products:
Machine Feature:
1). Aluminium Foil Container Making Machine adopt a lot of imported brand electronic componets, like
SEIMENS PLC and servo motor to make sure the machine work accurate and steady.
2).There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
The foil feeder provides the supply of right quantity and length of aluminium foil, and it is
controlled by servo system in SEIMENS, which assure a high-precision step.
3).This machine equipped with a mould lifter to make sure changing the mould easily by the worker.
4).Our company’s adwantage is that:we can according to your target price and requirment to make the right model for you.
