3dB Hybrid coupler is used to sample the microwave signal which is prescribed in the regulations.Its most important function is the microwave signal of road and shunt can be input power equal to the out put port.Mainly used in repeater station or base station of power combiner and a branch,also can be used in indoor distribution system power combining and dividing.
N Type Cavity 3dB Hybrid Coupler Series
800-2500MHz 2 in 1 out 3dB Hybrid Coupler
800-2500MHz 2 in 2 out 3dB Hybrid Coupler
698-2700MHz 2 in 2 out 3dB Hybrid Coupler
800-2700MHz 2 in 2 out 3dB Hybrid Coupler
DIN Type 3dB Hybrid Coupler Series
800-2500MHz DIN Type 2 in 2 out 3dB Hybrid Coupler
698-2700MHz DIN Type 2 in 2 out 3dB Hybrid Coupler
800-2700MHz DIN Type 2 in 2 out 3dB Hybrid Coupler
|
| 3dB Hybrid Coupler,800-2500/698-2700/800-2700MHz, N and DIN Connector |
HT 3DB HYBRID COUPLER SERIES
1. Multiple-Band Frequency
2. Low Specified PIM
3. High Isolation,Low VSWR and Loss
4. High Reliability,Moisture Sealed
5. Economic price
6. ISO9001,ISO14000,SGS RoHS Compliant

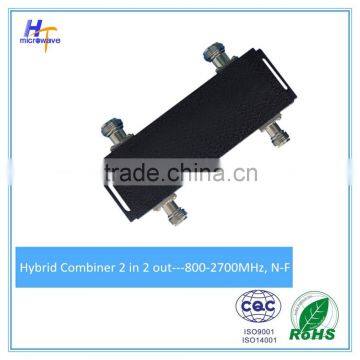

HT N type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out
| Electrical Specifications: | |||
| Frequency Range | 800-2500MHz | 800-2700MHz | 698-2700MHz |
| VSWR | ≤1.2:1 | ≤1.25:1 | ≤1.25:1 |
| Insertion Loss(dB) | ≤3.5 | ≤3.5 | ≤3.5 |
| In-band Ripple(dB) | ≤0.5 | ≤0.5 | ≤0.6 |
| Isolation(dB) | ≥25 | ≥25 | ≥25 |
| Average Power(W) | 100/200/300 | 100/200/300 | 100/200/300 |
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm |
| Impedance(Ω) | 50 | 50 | 50 |
| Connectors Type | N-Female | N-Female | N-Female |
| Operating Temp.(℃) | -20~+55 | -20~+55 | -20~+55 |
| Application | For Indoor or Outdoor Use | For Indoor or Outdoor Use | For Indoor or Outdoor Use |
| Finish | Black Plated | Black Plated | Black Plated |

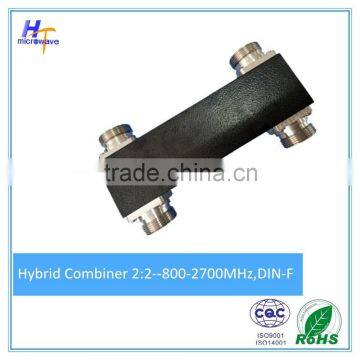

HT DIN type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out
| Electrical Specifications: | |||
| Frequency Range | 800-2500MHz | 800-2700MHz | 698-2700MHz |
| VSWR | ≤1.2:1 | ≤1.25:1 | ≤1.25:1 |
| Insertion Loss(dB) | ≤3.5 | ≤3.5 | ≤3.5 |
| In-band Ripple(dB) | ≤0.5 | ≤0.5 | ≤0.6 |
| Isolation(dB) | ≥25 | ≥25 | ≥25 |
| Average Power(W) | 200/300/500 | 200/300/500 | 200/300/500 |
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm |
| Impedance(Ω) | 50 | 50 | 50 |
| Connectors Type | DIN-Female | DIN-Female | DIN-Female |
| Operating Temp.(℃) | -20~+55 | -20~+55 | -20~+55 |
| Application | For Indoor or Outdoor Use | For Indoor or Outdoor Use | For Indoor or Outdoor Use |
| Finish | Black Plated | Black Plated | Black Plated |
HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.
Q:Do you provide samples?Is it free?
A:Yes,we provide samples if you need.Free or not is depended on the product you need.
Q:What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
